REBO Delivers End-to-End Bio Soluble Fiber Blanket Solutions
Diagnostic-Led Design
Before specification, our engineers assess equipment geometry, operational cycles, and compliance needs. In other words, guesswork is eliminated before a single brick or blanket is recommended so that every solution is matched to your actual operating conditions, not a standard catalogue assumption.
Measurable Operational Impact
As a result of consistent insulation performance, customers report reduced fuel consumption, consistent process temperatures, and accelerated carbon reduction progress which means REBO bio soluble fiber blankets contribute directly to both operational efficiency and sustainability targets.
Long-Term Technical Support
Factory-direct pricing, third-party certifications, and dedicated support remain available well beyond project handover. In other words, our relationship with customers does not end at delivery instead, it extends through the full service life of every installation, ensuring long-term performance is backed by the same team that specified the solution.

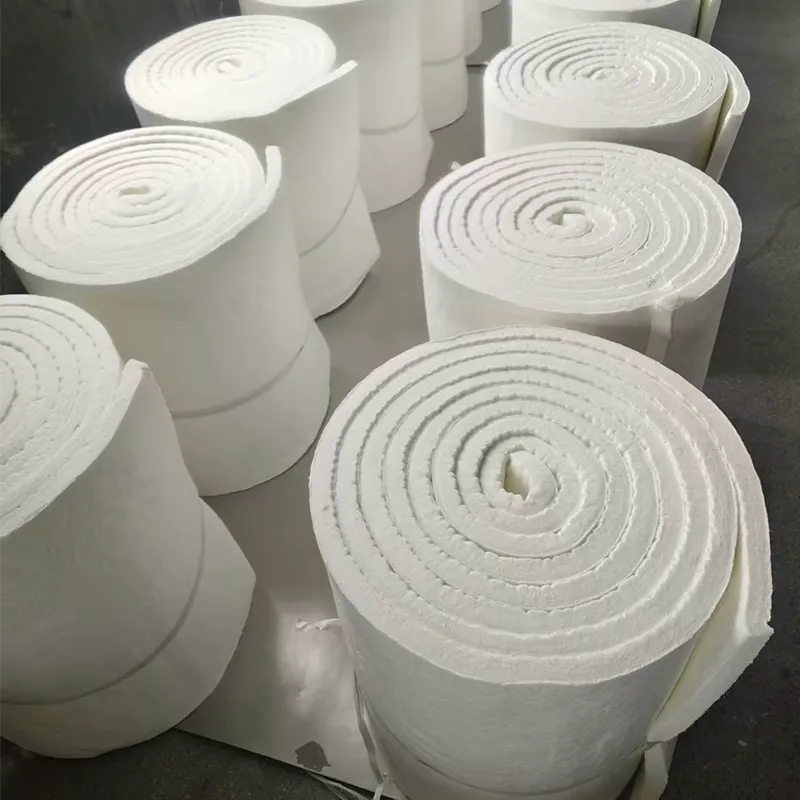

Specification of Bio Soluble Fiber Blanket

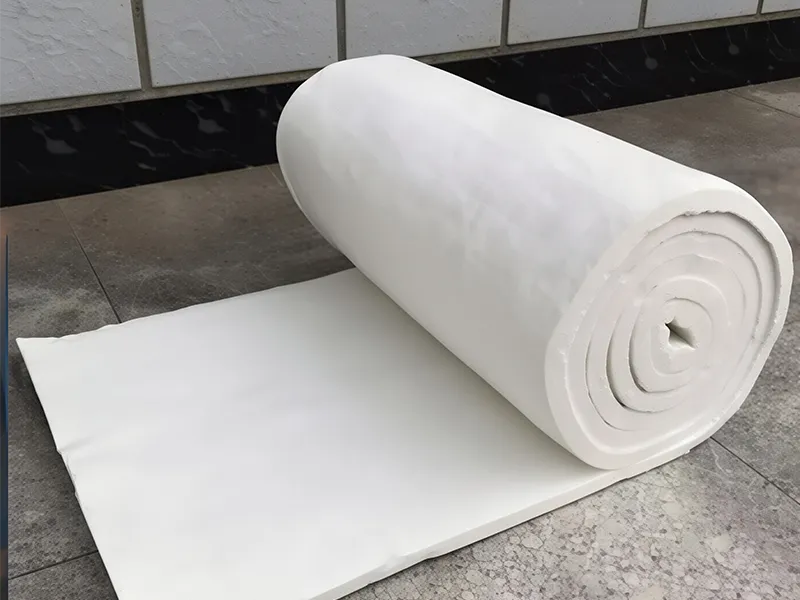

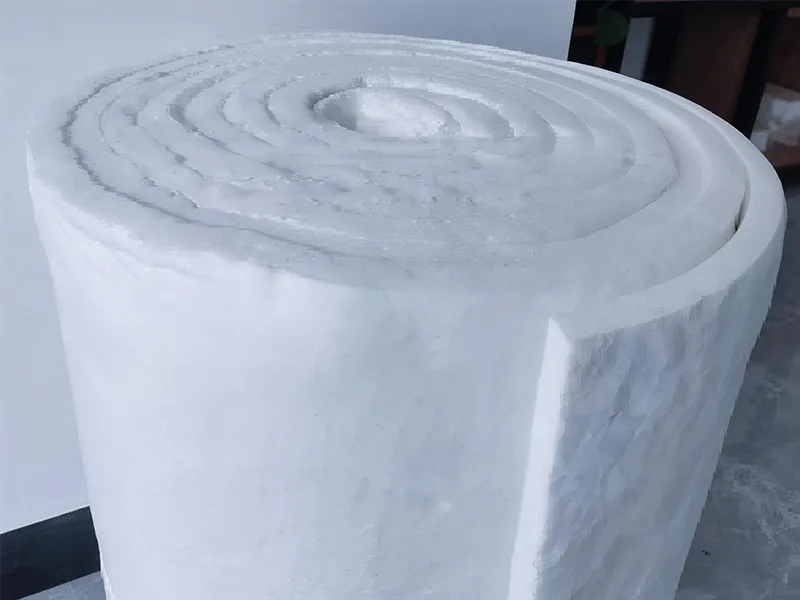

REBO Bio soluble fiber blankets are available in a comprehensive range of standard dimensions to suit diverse installation requirements specifically, covering everything from compact equipment lining to large-scale industrial insulation systems. Furthermore, all dimensions are available from stock, with custom sizes produced on request to match your exact application. For full details, refer to the specification table below for complete grade options and technical parameters.
- Thickness options run from 6 mm to 50 mm
- width up to 1220 mm
- length up to 14,400 mm
| Soluble Fiber Products | KR-AEF-BF(Bulk) | KR-AEF-RB (Blanket) | KR-AEF-RM (Module) | KR-AEF-RBD(Board) | KR-AEF-RP(Paper) | |
|---|---|---|---|---|---|---|
| Max·Service Temperature | 1000 | 1000 | 1000 | 1000 | 1000 | |
| （KG/m3） Density | – | 96/128/160 | 172/192/220 | 250/280/300 | 180/200 | |
| (24h)Linear shrinkage（After burning） | ≤2.0 | ≤2.0 | ≤2.0 | ≤3.0 | ≤4.0 | |
| （1000℃） | （1000℃） | （1000℃） | （1000℃） | （1000℃) | ||
| (W/m.k)Thermal Conductivity Rate | Density | 90KG/M3 | 128KG/M3 | 192KG/M3 | 300KG/M3 | 200KG/M3 |
| 400℃ | – | 0.11 | 0.15 | 0.09 | 0.08 | |
| 600℃ | – | 0.2 | 0.24 | 0.12 | 0.12 | |
| 800℃ | – | 0.31 | 0.38 | 0.18 | 0.18 | |
| Chemical Composition（After burning） | SiO2 | 63-70 | 63-70 | 63-70 | 62-68 | 62-68 |
| CaO | 25-30 | 25-30 | 25-30 | 22-28 | 22-28 | |
| MgO | 3-8 | 3-8 | 3-8 | 2-6 | 2-6 | |
| Others | ≤2.0 | ≤2.0 | ≤2.0 | ≤3.0 | ≤3.0 | |
| （mm） Standard size | 20kg/bag | 7200/3600*610*20-50 | 600/300*150-300 | 1000*600*20-50 | 610/1220*0.5-6 | |

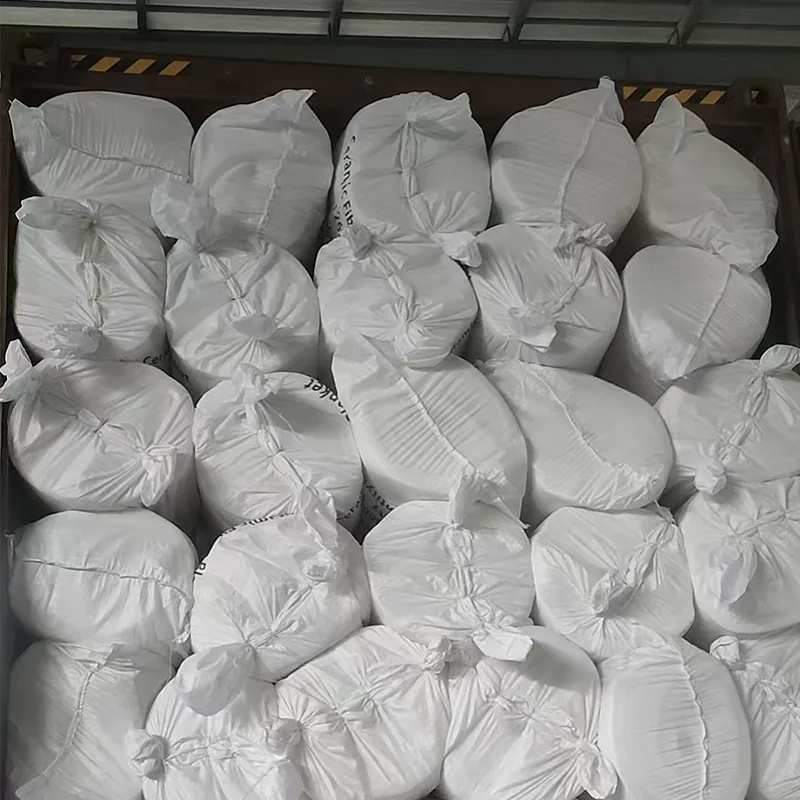

| Package | Cartons or woven bags | Cartons or Pallets | Cartons | |||
Key Features of Alkaline Earth Silicate Wool
-
Safe & Health-FriendlyFibers dissolve in saline solution, minimizing respiratory risk and meeting international occupational health standards.
-
High Temperature ResistanceWithstands 1100–1300°C without deformation or performance failure.
-
Excellent Thermal InsulationThermal conductivity 0.06–0.12 W/(m·K), reducing heat loss and operating costs.
-
Lightweight & FlexibleDensity 64–128 kg/m³; easy to cut, handle, and fit complex or curved surfaces.
-
Strong & DurableTensile strength ≥0.5 MPa with only -3% shrinkage under continuous high-temperature use.
-
Cost-EffectiveReduces energy bills and lowers labor and maintenance costs through long service life.
Industries Choosing AES Wool Blanket for Safer High-temp Insulation

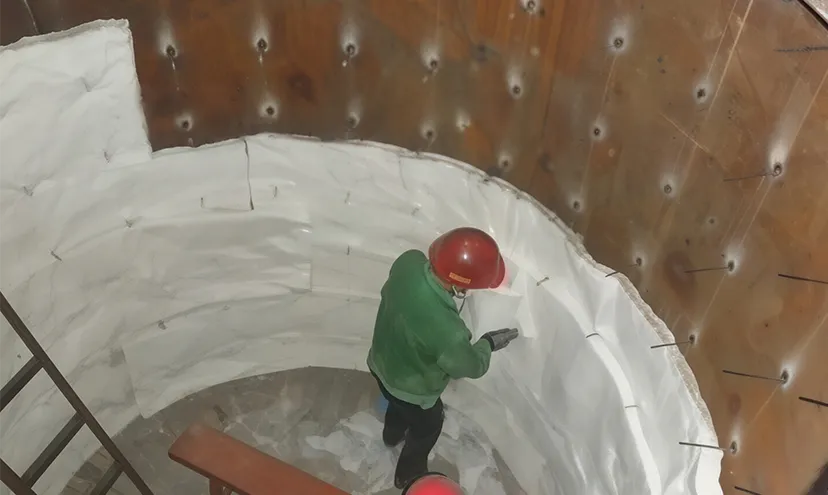

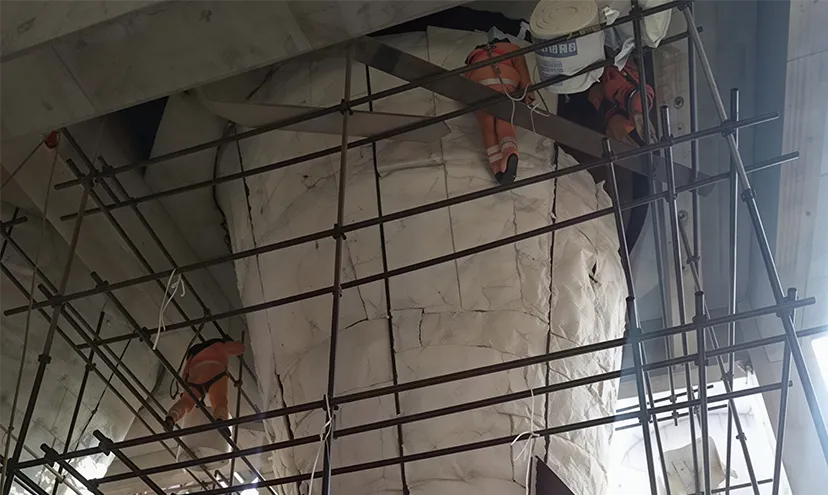

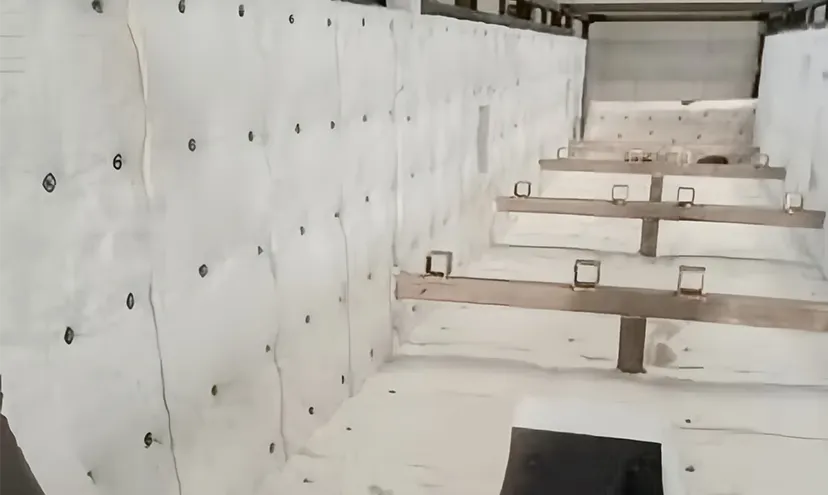

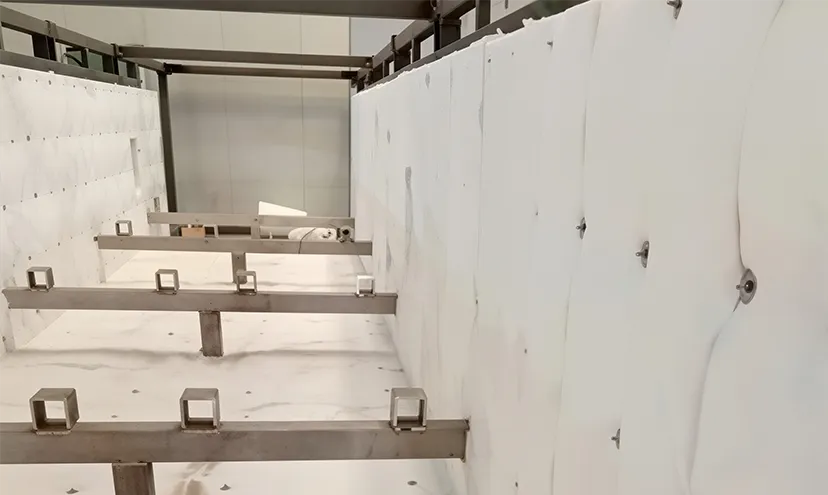

Soluble fiber blanket excels in any high-temperature environment demanding safety and efficiency. It delivers reliable performance with light weight, from backup lining to hot face applications.

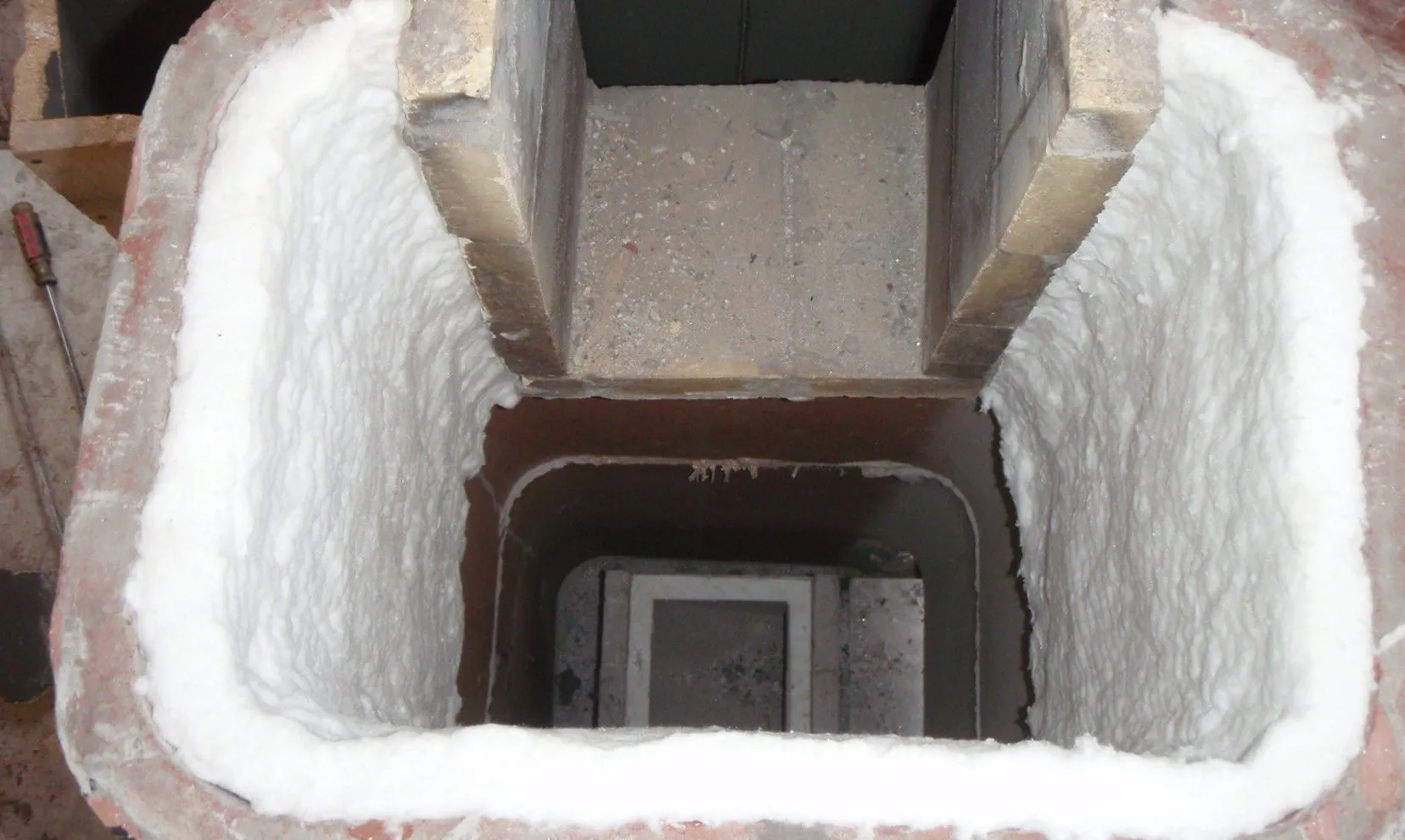

Blast furnace liners, ladle insulation, tundish backup lining, annealing furnace walls and roofs.
Cracking furnace liners, reforming furnace insulation, pipeline insulation, reactor thermal protection.
Kiln car insulation, tunnel kiln walls, glass melting furnace crowns and sidewalls.

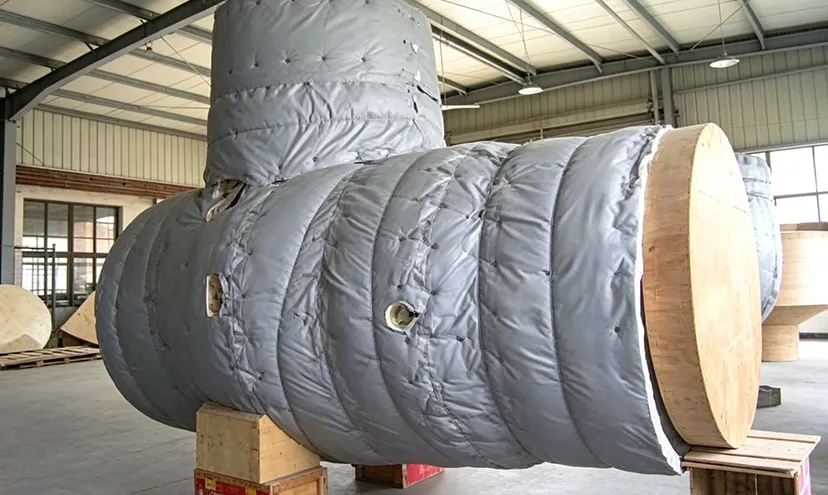

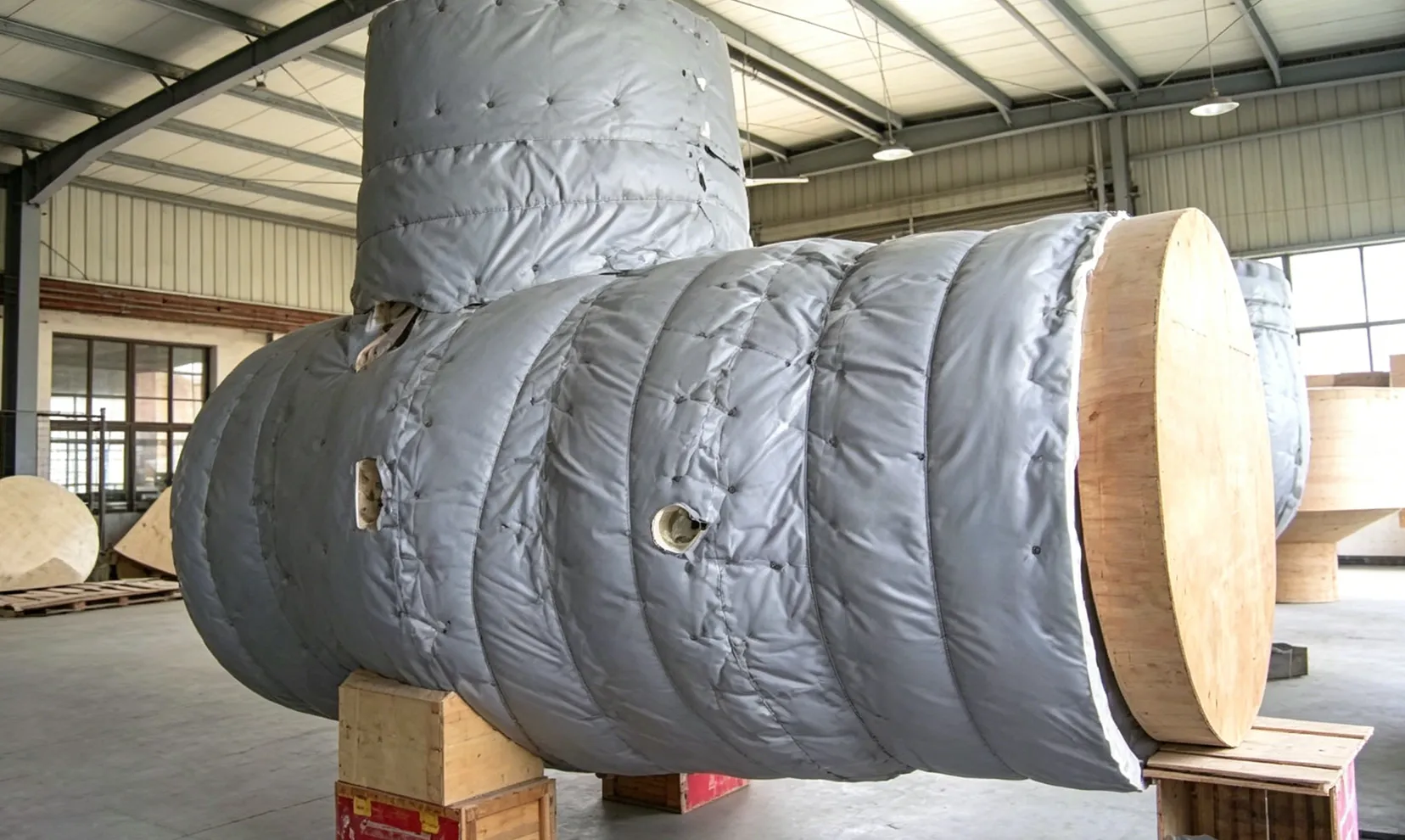

Boiler insulation, heat exchanger wrapping, turbine thermal protection, flue duct lining.
Melting furnace liners, holding furnace insulation, heat treatment furnace walls.
Lime kiln insulation, cement kiln transition zone lining, drying chamber walls.
REBO Solutions for Global Customers
Customers from steel mills in Southeast Asia and petrochemical plants in the Middle East consistently report the same result: lower heat loss, reduced energy consumption, and lining surfaces that hold up far longer than expected even under continuous high-temperature cycling.
One cement plant customer told us: “We came with a temperature problem. REBO came back with a complete insulation plan.” Factory-direct supply, SGS and CE certification, and traceable batch documentation mean global buyers get consistent quality and lead times they can actually plan around from a first trial order all the way to full-project supply.
Strong Manufacturing Strength of REBO AES Insulation Blanket
Our factory is located in China, one of the most established industrial zones for refractory and insulation materials. In addition, we operate large-scale production lines with stable and consistent output capacity which means high-volume orders are fulfilled on schedule, without compromising on dimensional accuracy or material specification.

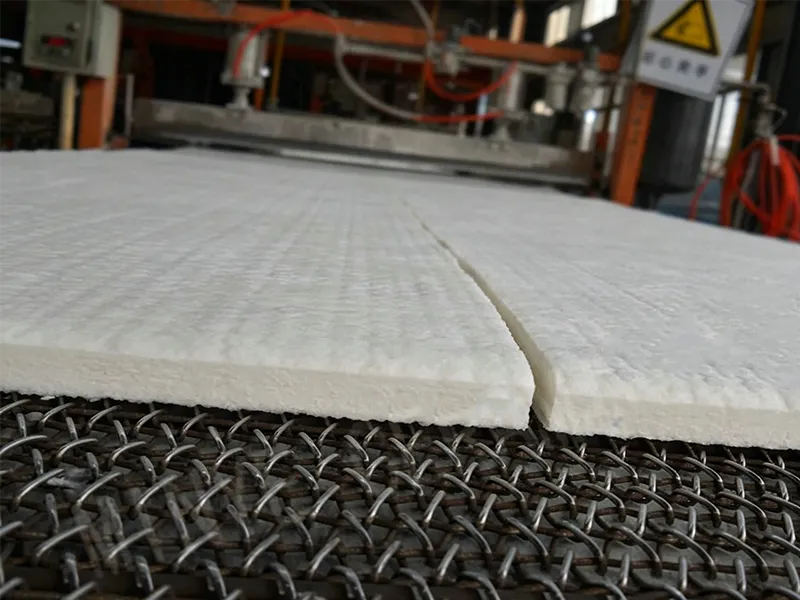

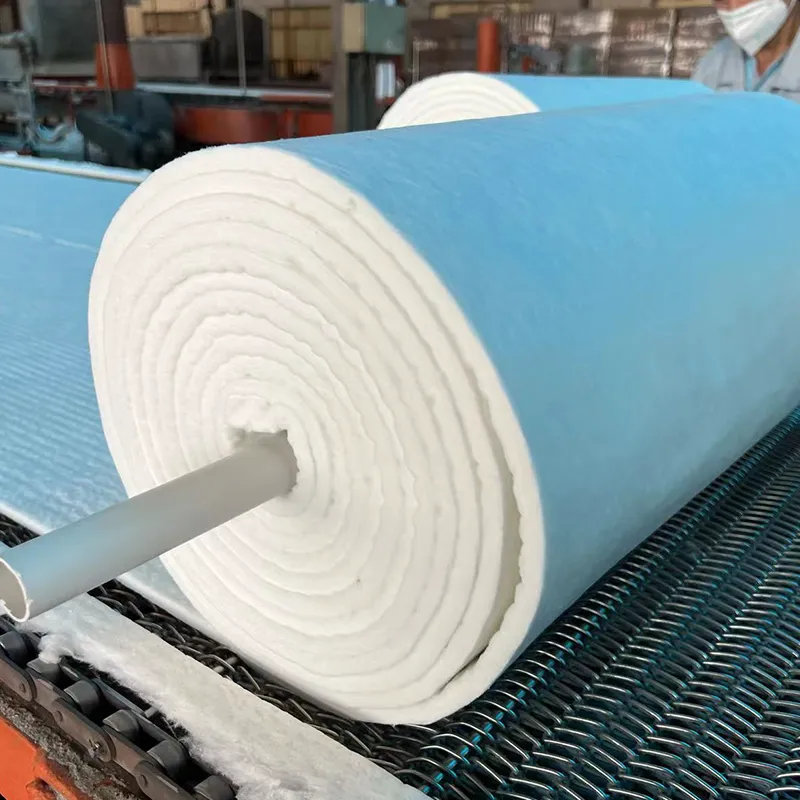

REBO uses modern spinning and blowing technology to produce uniform fibers with a diameter of just 3–5μm. As a result, this ensures consistent product quality across every batch so that buyers can specify with confidence and plan production schedules without material variability as a risk factor.
Every roll is tested for thermal conductivity, tensile strength, shrinkage, and fiber diameter before leaving the factory. We maintain tight quality standards at every production stage from raw material to finished product.
Our products meet international environmental and occupational health standards. We hold relevant certifications to support export requirements and customer compliance needs worldwide.
We produce high quality products in 1100°C and 1300°C grades. Density options of 64, 96, and 128 kg/m³ are available to suit different application requirements.
We offer a wide range of sizes for thickness, width, and length. And we can customize dimensions and packaging according to customer specifications and project requirements.

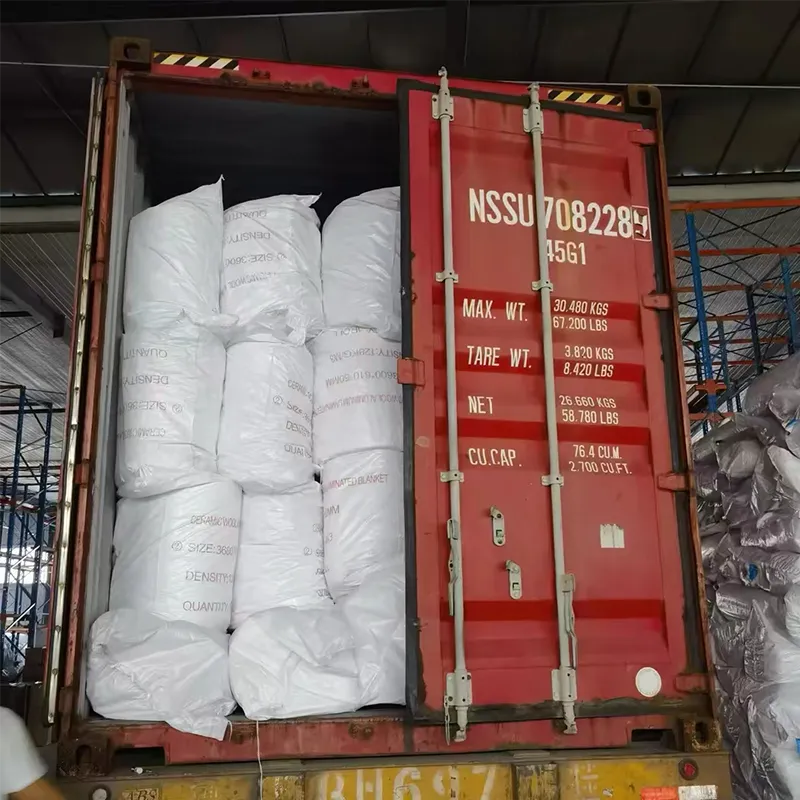

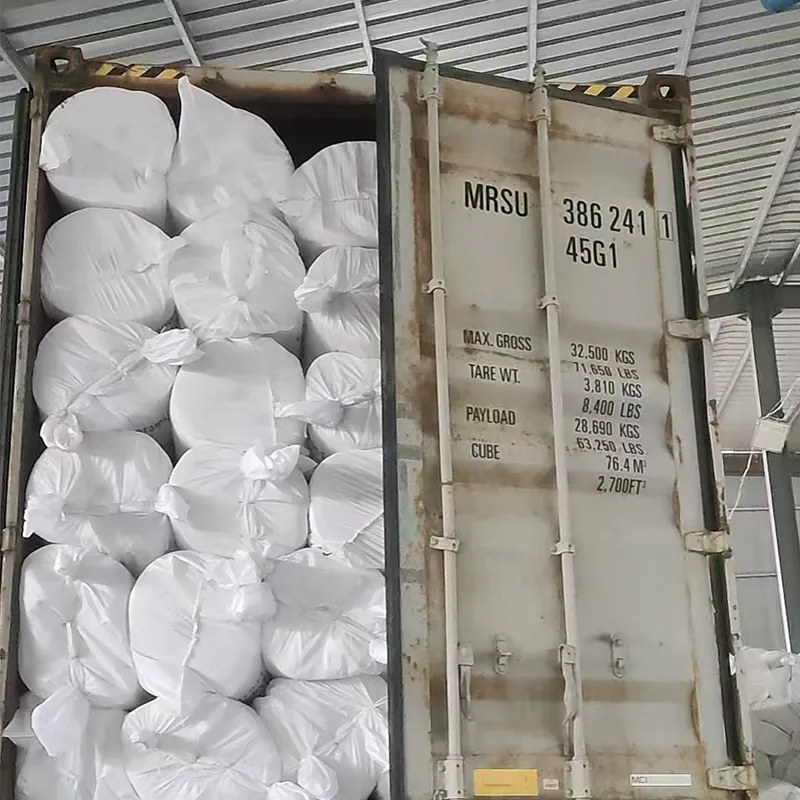

With extensive experience in international trade, we handle smooth export logistics, documentation, and on-time delivery to customers across the globe. See how our products perform on-site on REBO Pinterest.
Our technical team provides professional product selection guidance, application advice, and after-sales support. This helps customers find the best insulation solution for their specific needs.
Certificate for Global Procurement Standards
REBO holds ISO 9001, ISO 14001, and CE certifications, and provides a full third-party test report with every shipment. Our quality system is built to meet the high alumina brick supplier qualification standards of global industrial customers, so your procurement team has everything they need, from day one.
