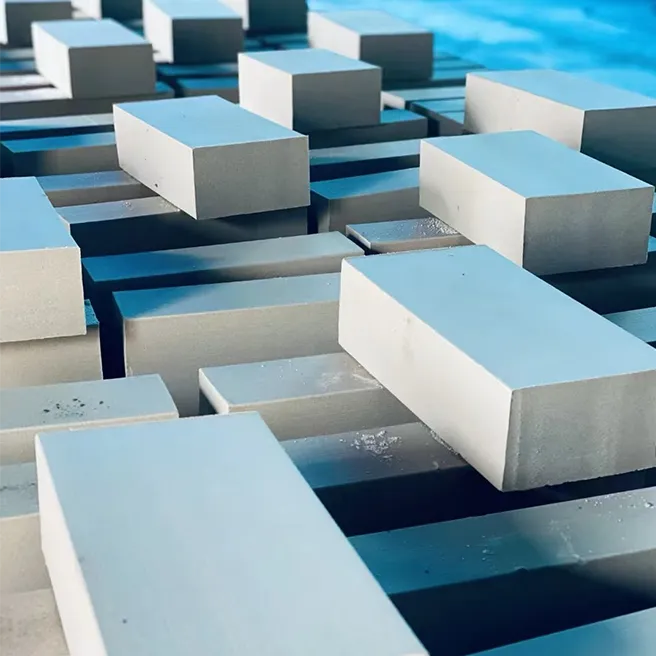

REBO Acid Resistant Bricks Specifications
Engineered to stop severe corrosion, REBO’s high-performance Z-1 grade acid resistant bricks fully comply with China GB and ISO standards. This grade offers the highest tier of chemical resistance (99.8% acid resistance, 0.2% water absorption) to satisfy most industrial applications. If you have special need, send it to us.
| Grade | Z-1 |
|---|---|
| Water Absorption, % | ≤0.2 |
| Acid Resistance, % | ≥99.8 |
| Bending Strength, MPa | ≥58.8 |
| Bulk Density, g/cm³ | 2.3-2.5 |
| Compresssive Strength, MPa | ≥120 |
| Al₂O₃, % | 20–30 |
| SiO₂, % | 60–70 |
| Fe₂O₃, % | ≤2.0 |
| Na₂O + K₂O, % | ≤5.0 |
| CaO + MgO, % | ≤2.0 |
Standard REBO Acid Resistant Brick Sizes
The following table shows our standard brick sizes designed for quick deployment. However, we understand that modern industrial plants often feature complex geometries. To meet these diverse engineering needs and ensure seamless lining integrity, we also offer highly specialized refractory and acid resistant solutions:
- Wedge Bricks: It is for arched and curved structures. Available in horizontal wedge and vertical wedge types (base size 230x 113mm), with thickness options of 65/55/45/35/25mm.
- Custom Bricks: Tailored shapes and dimensions are fully supported upon request.
| Rectangular Bricks (Flexible Layout) | Square Bricks (Easy Installation) | ||
|---|---|---|---|
| Width*Length (mm) | Thickness (mm) | Width*Length (mm) | Thickness (mm) |
| 230×113 Series | 15/20/25/30/40/50/65 | 150×150 Series | 15/20/30 |
| 150×75 Series | 15/20/30 | 200×200 Series | 15/20/30 |
| 600X300 Series | 15/20 | 300×300 Series | 15/20/30 |
| 600×600 Series | 15/20 | ||

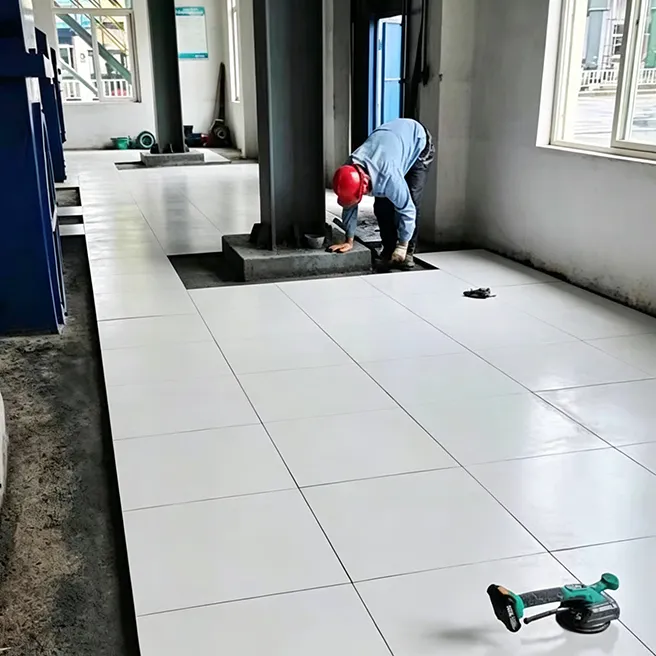

Acid Resistant Bricks vs. Tiles
REBO acid resistant bricks and tiles both stop chemical damage because of their strong ceramic materials. However, bricks are very thick and heavy to support big industrial machines and extreme heat inside chemical storage tanks. Acid resistant tiles are much thinner and lighter, so people use them to protect laboratory floors, kitchen walls, and walkways from everyday acid spills.
| Feature | Acid Resistant Bricks | Acid Resistant Tiles |
|---|---|---|
| Main Series & Sizes | 230×113 Series | 150×75, 150×150, 200×200, 300×300, 600×300, 600×600 Series (mm) |
| Thickness Range | 15–65mm (Heavy-duty thick options) | 15/20/30mm (Standard thickness) |

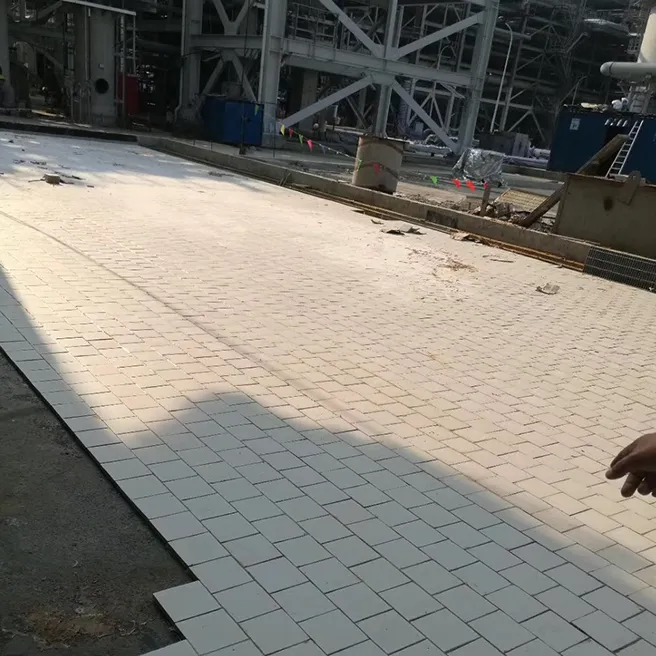

| Primary Applications | Heavy industrial equipment interiors: Acid tanks, pickling pits, reaction vessels, tower linings, chimneys. | Large area flooring: Chemical factory workshops, galvanizing shop floors, battery rooms, warehouses. |
| Load & Impact Resistance | Ultra-high compressive strength | High load-bearing |
| Installation & Joints | Often requires staggered laying and skilled masonry for curved or complex vessel structures. | Laid flat on large surfaces, prioritizing anti-slip textures, aesthetic neatness, and easy cleaning. |
Which Acids Can REBO Acid Resistant Bricks Resist?
| Category | Media | Corrosion Proof | Remarks / Notes |
|---|---|---|---|
| I. Fully Compatible | H₂SO₄, HCl, HNO₃, H₂CrO₄, C₂H₄O₂, H₃PO₄, C₆H₈O₇, C₃H₈O₃, Na₂CO₃, NH₃·H₂O, CO(NH₂)₂, Na₂SO₄, (NH₄)₂SO₄, MgSO₄, CuSO₄·5H₂O, NH₄NO₃, NaCl, NH₄Cl, MgCl₂, AlCl₃, FeCl₃·6H₂O, CH₂O, C₃H₆O, C₂H₅OH | YES | Suitable for conventional concentrations and temperature ranges. Can be confidently selected for these applications. |
| II. Applicable with Special Evaluation Required | H₂SiF₆ (Fluorosilicic Acid) | YES | H₂SiF₆: Recommended concentration <12%, room temperature only. |
| NaOH (Sodium Hydroxide) | Not recommend) | NaOH: Recommended concentration ≤20%, room temperature only. | |
| III. Not Resistant (Prohibited) | HF (Hydrofluoric Acid) | NO | Not suitable under any concentration or temperature. Strictly avoid contact. |
REBO Global Market Presence
REBO is proud to supply our high quality materials to international clients across the globe. Our successful export destinations span multiple continents including the Middle East North Africa Asia and South America. We have established strong partnerships and delivered our products to businesses in Colombia Algeria South Korea Vietnam Saudi Arabia Morocco and Qatar. We continuously expand our global reach to provide durable industrial solutions worldwide.

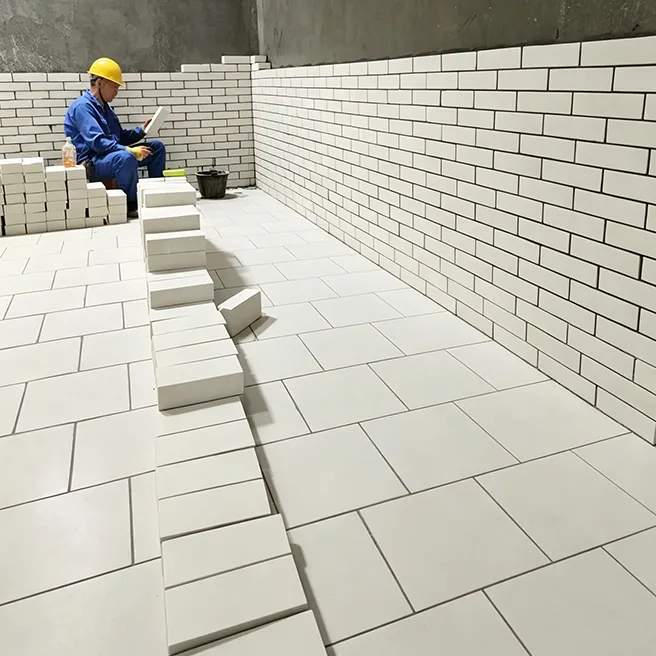

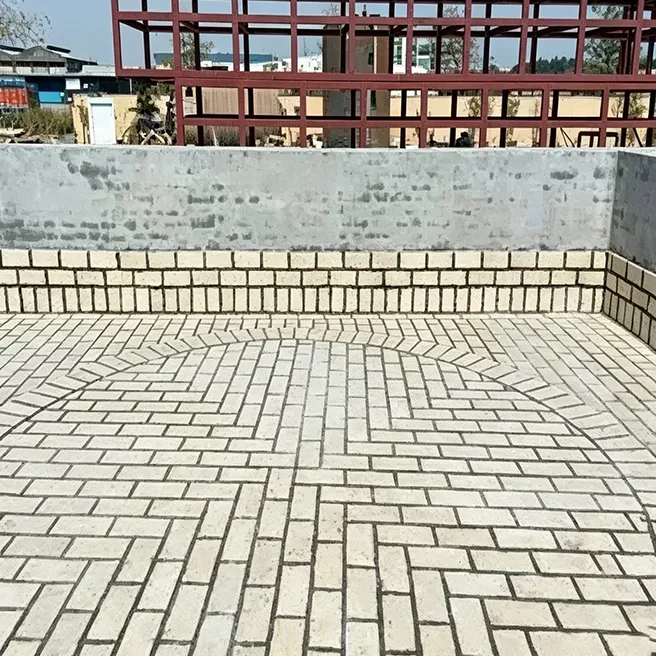

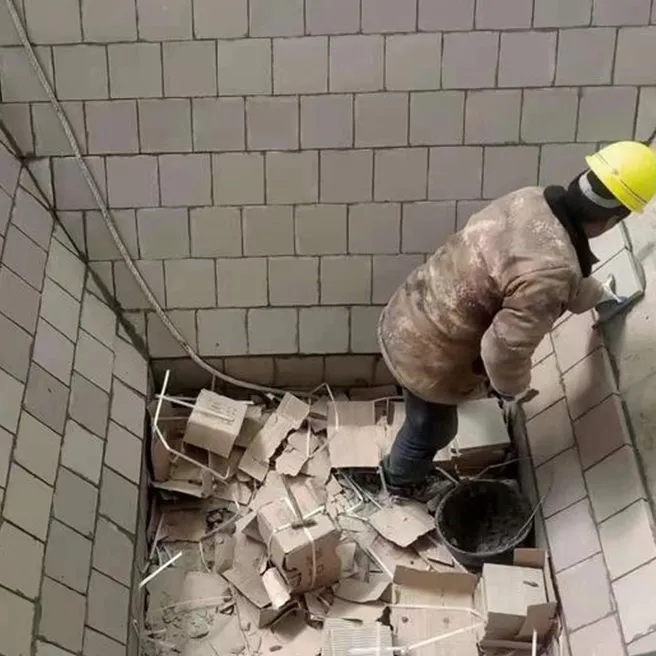

Industries Acid Resistant Brick Lining Serve
| Industry Sector | Process Equipment & Linings |
|---|---|
| Chemical & Petrochemical | 98% Sulfuric, nitric, & phosphoric acid reactors; Acid storage & waste acid recovery tanks; Absorption & drying towers; Sulfur melting pits; Pump rooms & loading bays; Containment bunds & dykes; Acid drainage trenches & channels; Chlor-alkali & ammonia plant floors; |
| Fertilizer & Phosphate | Phosphoric acid storage tanks; Ammonium nitrate granulators & reaction towers; Phosphate mining processing vessels; Fertilizer production shop floors; Bulk acid storage warehouse floors; |
| Steel & Metallurgy | Pickling tanks & acid regeneration plants (ARP); Zinc & copper electrolysis cells; Galvanizing pre-treatment tanks; Smelting reverberatory furnaces; Pickling & galvanizing shop floors; Heavy-duty smelter corridor flooring; Wall dadoes in high-splash areas; |
| Battery & New Energy | Lithium extraction reactors; Nickel sulfate crystallization tanks; Battery formation workshop floors; Acid mixing & blending vessels; Battery storage & charging rooms; Acid transfer area flooring; |
| Power & Environment | Power plant chimneys & FGD flues; Scrubber towers & gas washing systems; Wastewater & acid neutralization pits; Effluent treatment plant (ETP) floors; Emergency sumps & collection pits; Desulfurization area ground protection; |
| Food, Beverage & Dairy | Food-grade blending & fermentation tanks; Sugar & juice processing vessels; |
| Pulp, Paper & Mining | Bleaching towers & chemical recovery tanks; Ore leaching & extraction vessels; Pulp & paper packaging plant floors; Heavy-duty mining workshop floors; Municipal water pump rooms; |
REBO Acid Resistant Brick Properties
Block acid infiltration and protects subsurface materials from long-term deterioration.
Superior to Coatings & Polymer
Do not degrade, peel, or lose performance under prolonged chemical exposure, or mechanical load.
High Silica Content
Deliver exceptional resistance to a broad spectrum of acids.

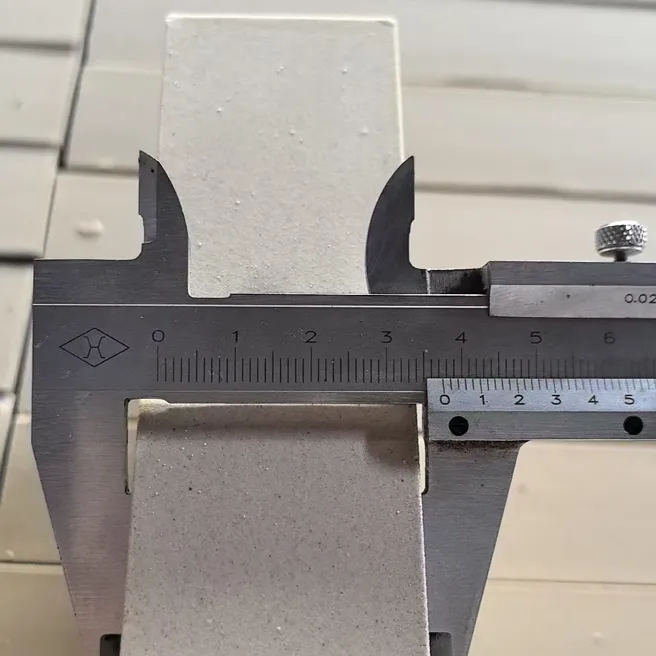

Size Consistency & Smooth Surface
Enable precise installation and tighter lining joints.
Seals the surface against liquid ingress.
High Bending Strength
Withstand mechanical stress, heavy foot traffic, and equipment loads without cracking.
Controlled Oxide Composition
Minimize reactivity with acidic and mildly alkaline media.
Exceptional Thermal Stability
Maintain structural and chemical integrity.
A Complete Corrosion Protection Products System With Mortar
To deliver a truly effective acid resistant solution, REBO goes beyond supplying bricks alone. We provide a complete, engineered solution system. Alongside our acid resistant bricks, we supply a full range of compatible mortars and bonding materials, including epoxy resin mortar, furan resin mortar, and KP1 sodium silicate mortar. Whether your application involves moderate chemical exposure or highly aggressive concentrated acids at elevated temperatures, our technical team will recommend the right brick-and-mortar combination for your exact operating conditions.
Difference of Acid Resistant Mortar
| Property | KPI Mortar (Water Glass Type) | Epoxy Resin Mortar | Furan Resin Mortar |
|---|---|---|---|
| Core Component | Potassium silicate (K-water glass)+inorganic hardener | E-44 epoxy resin+amine hardener+fillers | Furfuryl alcohol/furfural type furan resin+hardener |
| Max Service Temperature | 600°C (up to 900–1000°C possible) | 120°C | 180°C |
| Bond Strength | ≥2 MPa (Moderate) | ≥3 MPa (High) | ≥2.5 MPa (Moderate) |
| Compressive Strength | ≥30 MPa | ≥70 MPa (High) | ≥50 MPa |
| Acid Resistance | Excellent (except hydrofluoric acid) | Moderate (not strong oxidizing media) | Excellent |
| Best Suited Applications | Chimney linings, high-temperature acid pickling tanks, reactors, power plant desulfurization areas, boiler masonry, glass furnace linings, and other high-temperature strong-acid environments | Floors, walls, damp substrates, anti-corrosion areas with high bond strength requirements, food processing workshops, wastewater treatment tanks | Chemical reactors, environments with alternating acid/alkali media or organic solvents, hydrometallurgical corrosion protection, low-temperature kiln repair |
| Impact Resistance | Low | High | Low |
| Impermeability/Construction Requirements | Moderate construction demands: Water-sensitive (must be dried after curing); | Easy to apply: Be applied on damp substrates, waterproof & impermeable; | Strict construction control needed: Demanding substrate requirements; brittle nature; |
| Key Strengths | Unmatched high-temperature resistance; low cost; eco-friendly | Best adhesion and compressive strength; applied on damp surfaces; impermeable | Resists alternating acid-alkali exposure and organic solvents; |
| Main Limitations | Not resistant to hydrofluoric acid or strong alkalis; water-sensitive | Cannot withstand high temperatures | Brittle, poor impact resistance; demanding substrate requirements; strong odor |

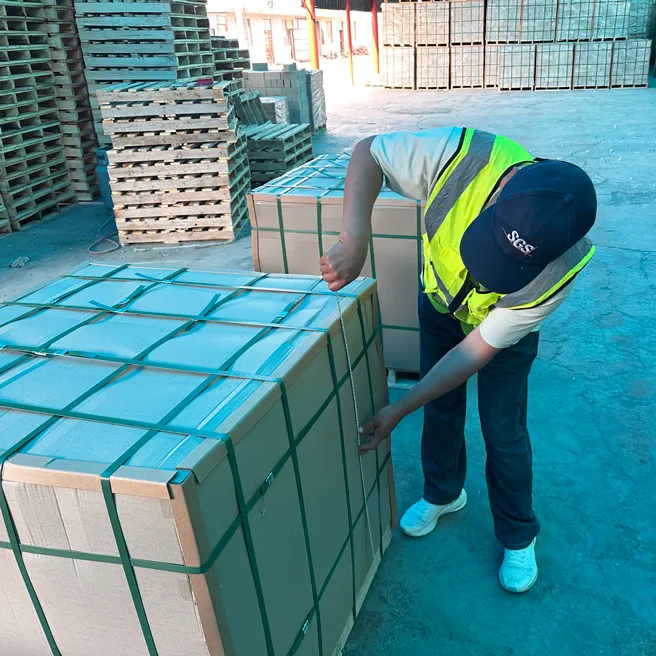

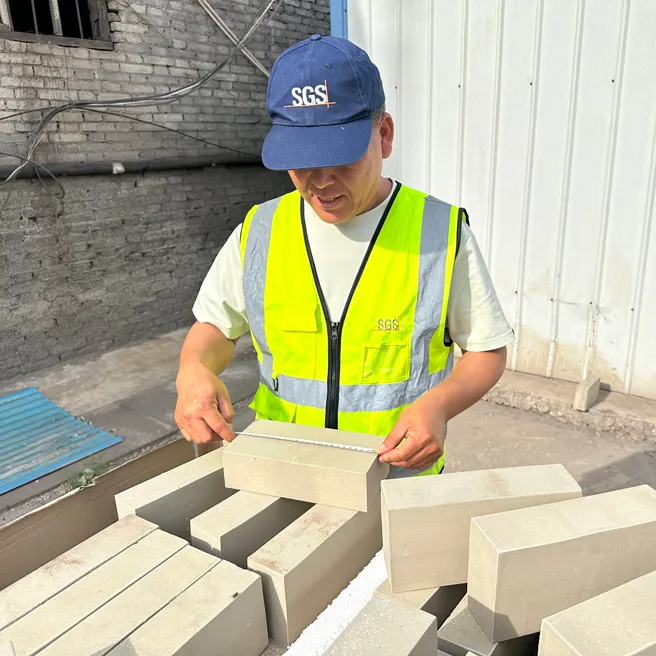

Please check the photos on REBO Pinterest showing quality testing by third-party agencies.
REBO Has Proven Capabilities
Production & QC

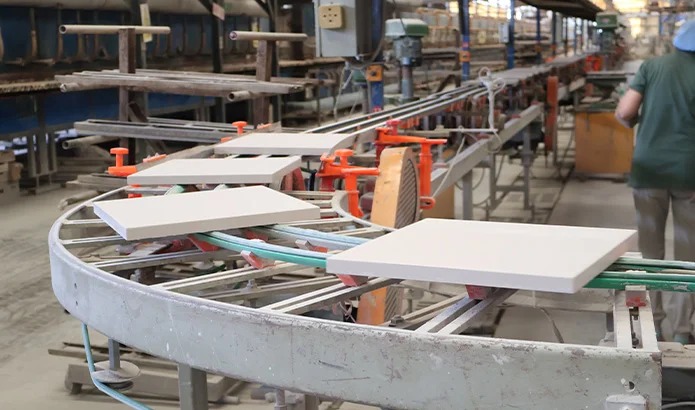

Automated Manufacturing: REBO runs fully integrated, automated production lines with precision batching, high-tonnage pressing, and 1800℃ tunnel kilns.

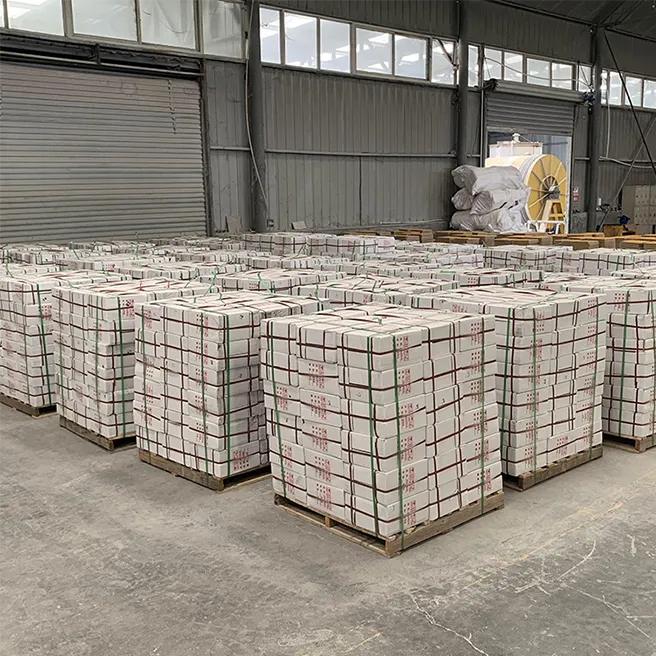

Stable Mass Supply: With an annual capacity of 200000 tons, we ensure an uninterrupted and highly stable supply for global bulk orders.
Rigorous Lab Testing: Our in-house lab uses advanced compression, acid-resistance, and thermal shock testers to inspect every batch from raw material to finished product.
Technical & Standards
Z-1 Premium Quality: Our Z-1 grade exceeds standards with 99.8% acid resistance, 0.2% water absorption, and ≥60MPa compressive strength.
Global Standard Alignment: All products are fully compliant with China GB and ISO standards, meeting the most demanding engineering specifications.
Full Traceability: Every single shipment is dispatched with an official, fully traceable quality inspection and laboratory test report.
Market & Credentials
Certified Authority: Our manufacturing systems and products are fully validated by ISO 9001:2015, CE, and third-party test reports from SGS.
Proven Track Record: We have served over 100+ industrial customers, exporting to 30+ countries across chemical, metallurgical, and power sectors.
Industry Recognition: Our acid-resistant solutions are field-proven and trusted by global EPC contractors and leading chemical plants.
Services & Logistics
Rapid-Response Support: We eliminate project delays by guaranteeing professional technical consultations within 24 hours and commercial quotes within 48 hours.

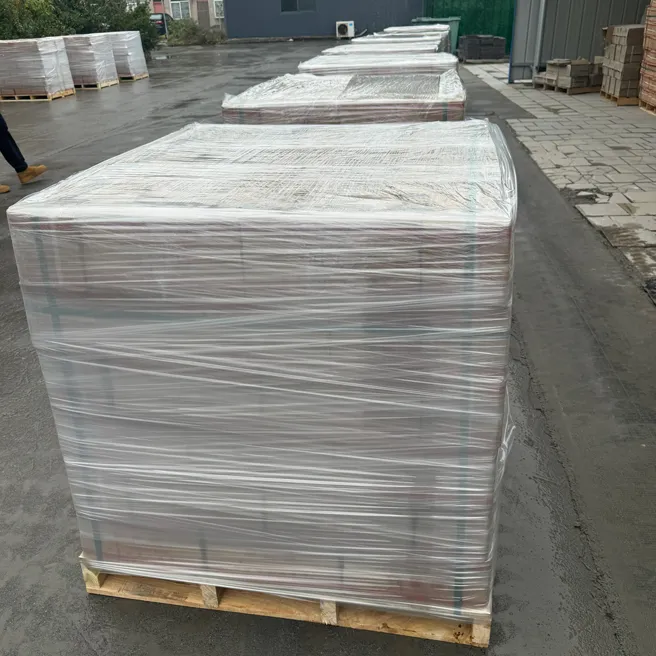

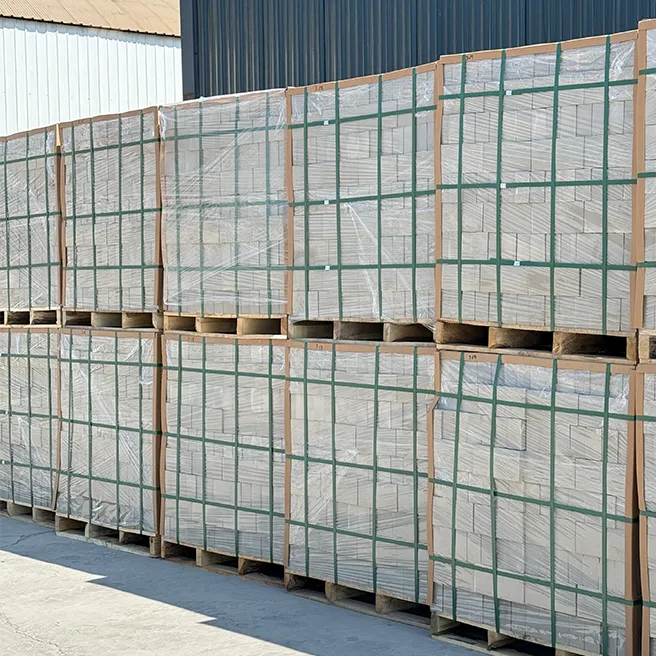

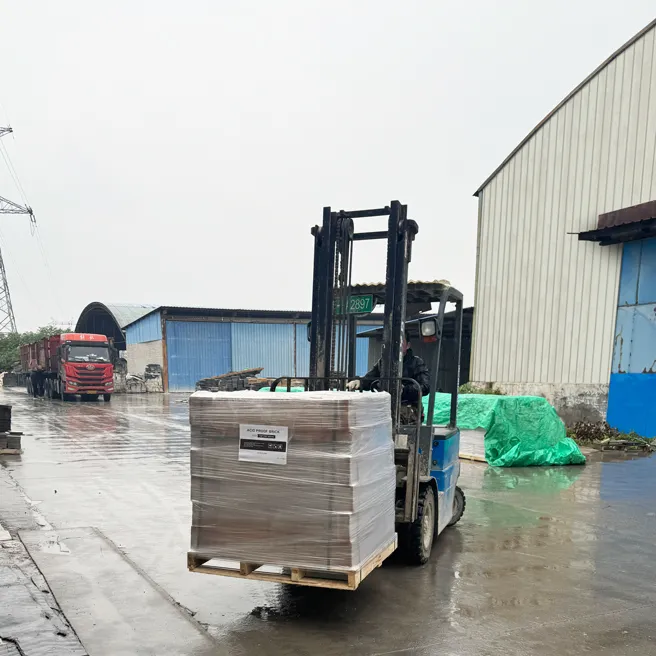

Secure Global Logistics: REBO provides heavy-duty, seaworthy packaging and reliable global shipping to ensure safe, on-time delivery directly to your job site.
Flexible Payment Terms: We offer flexible and tailored payment structures to facilitate smooth financial workflows for international procurement.
