Parameters of Ceramic Fiber Blanket for Sale
Ceramic fiber blanket insulation cover temperature grades from 1050°C to 1430°C (2600), with bulk densities ranging from 96 to 160 kg/m³. Whether your application demands flexibility, thermal resistance, or structural strength, REBO offer the precise grade ceramic fiber products to match your operational requirements backed by manufacturer-direct quality and pricing.
| Item | Common Type | Standard Type | High Purity Type | High Alumina Type | Zirconium Containing Type |
|---|---|---|---|---|---|
| Classification Temperature, ℃ | 1050 | 1260 | 1260 | 1350 | 1430 |
| Service Temperature, ℃ | <1000 | 1050 | 1100 | 1200 | 1350 |
| Bulk & Density, kg/m³ | 96-128 | 96-128 | 96-128 | 128-160 | 128-160 |
| Permanent Liner Change, % | -4 (1000℃) | -3 (1000℃) | -3 (1100℃) | -3 (1250℃) | -3 (1350℃) |
| Heat Conductivity Coefficient, W/(m·k) (Bulk Density 128kg/m³) | 0.09 (400℃) 0.176 (800℃) |
0.09 (400℃) 0.176 (800℃) |
0.09 (400℃) 0.176 (800℃) 0.22 (1000℃) |
0.132 (600℃) 0.22 (1000℃) |
0.76 (800℃) 0.20 (1000℃) |
| Strength of Extension, Mpa | 0.08-0.12 | ||||
| Al2O3, % | 44 | 46 | 47-49 | 52-55 | 39-40 |
| Al2O3+SiO2, % | 96 | 97 | 99 | 99 | – |
| Al2O3+SiO2+ZrO2, % | – | – | – | – | 99 |
| ZrO2, % | – | – | – | – | 15~17 |
| Fe2O3, % | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 |
| Na2O+K2O, % | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 |
| Size, mm | Standard Size: 7200/3600*610/1220*6-60; Customized Sizes | ||||

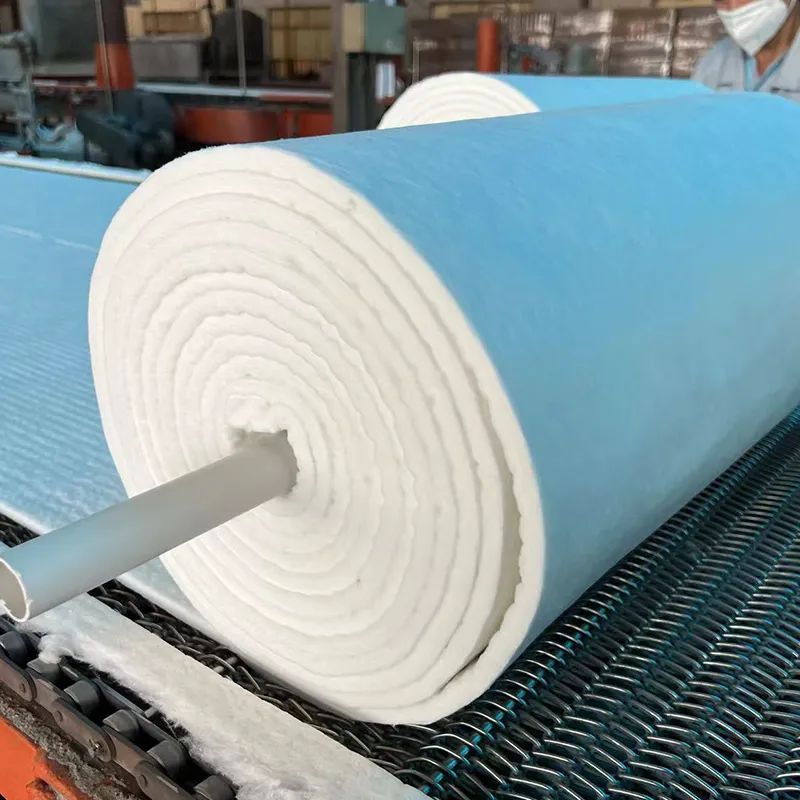

High-performance Specifications of Ceramic Fire Blanket Insulation
Don’t force your project to adapt to standard materials. Let us tailor the material to your blueprint. REBO high-purity ceramic fiber blankets are engineered to maximize thermal efficiency, minimize heat loss, and significantly lower your industrial operational costs.

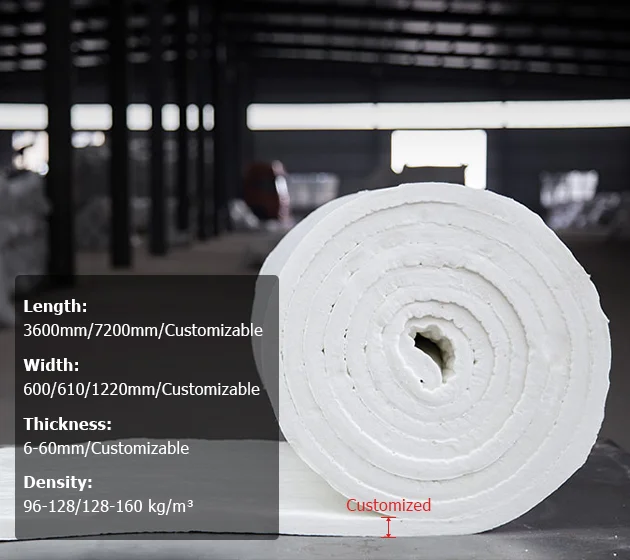

- Precision Thickness (6–60mm): Available in a wide range to meet your exact thermal barrier requirements. Our industry-favorite 25/50mm (1″/2″) profiles are optimized for rapid installation and maximum heat retention.
- Zero-Waste Dimensions: Choose from standard lengths 3600/7200mm (142″/284″) and widths 600/610/1220mm (23.6″/24″/48″), or request custom-cut sizing to eliminate on-site cutting waste and labor costs.
- High-purity Composition (Standard White): Our brilliant white ceramic fiber rolls guarantee low shot content and superior alumina-silica purity. This ensures excellent chemical stability and structural integrity.
- Different Density Options: Available in 96-128 kg/m³ (6-8 lb/ft³) and 128-160 kg/m³ (8-10 lb/ft³). Higher densities deliver advanced tensile strength. This prevents erosion even under high-velocity gas flows.

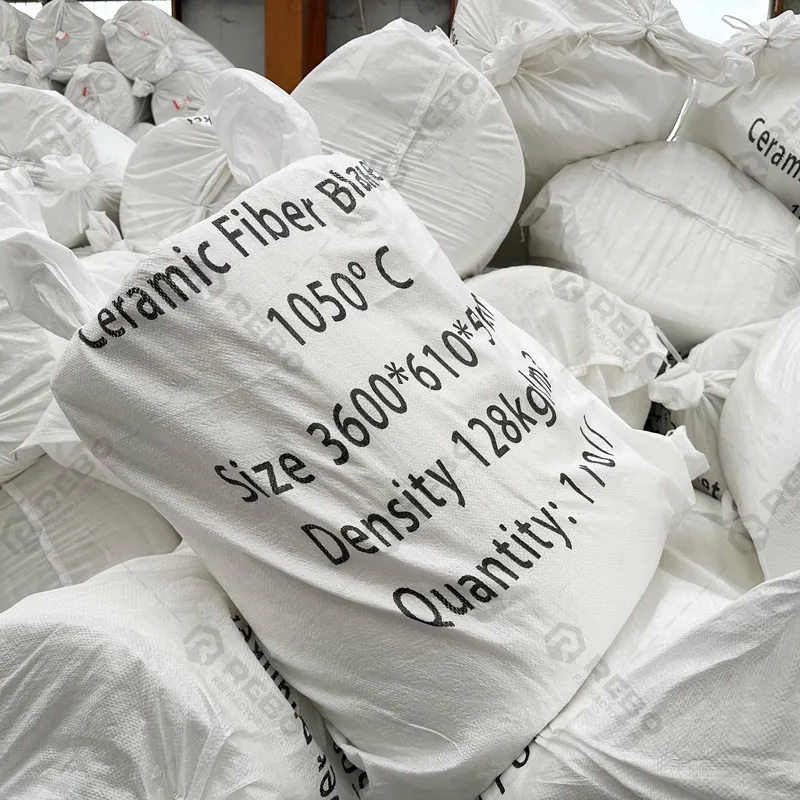

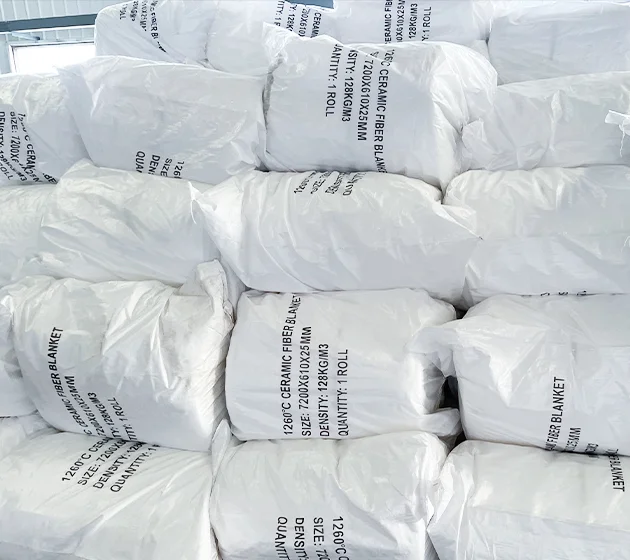

- Default Woven Bags: Available in default woven bags and optional reinforced cartons. Premium packaging delivers advanced structural integrity. This prevents tearing and contamination even under rigorous transit conditions.

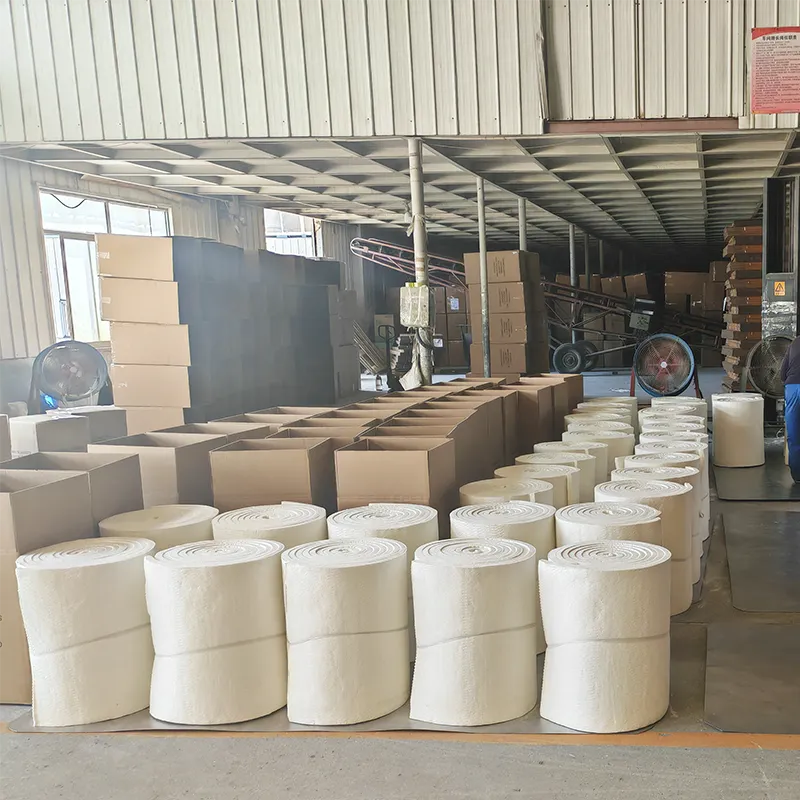

- High-velocity Delivery Schedules: Available in standard 7-15 day dispatch timelines and expedited custom routing. Dynamic stock management delivers advanced fulfillment flexibility. This guarantees seamless continuity through dedicated coordination for urgent requirements.

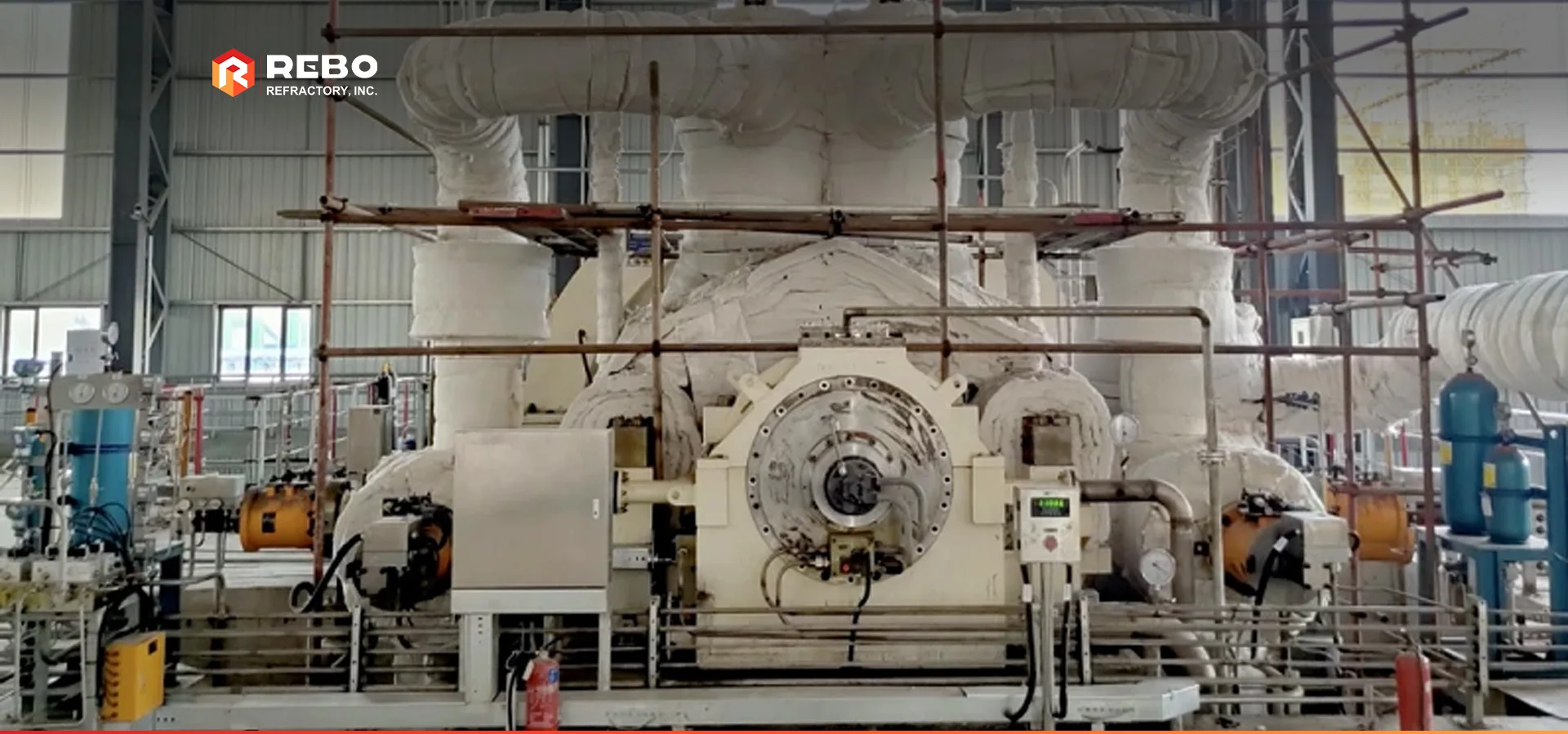

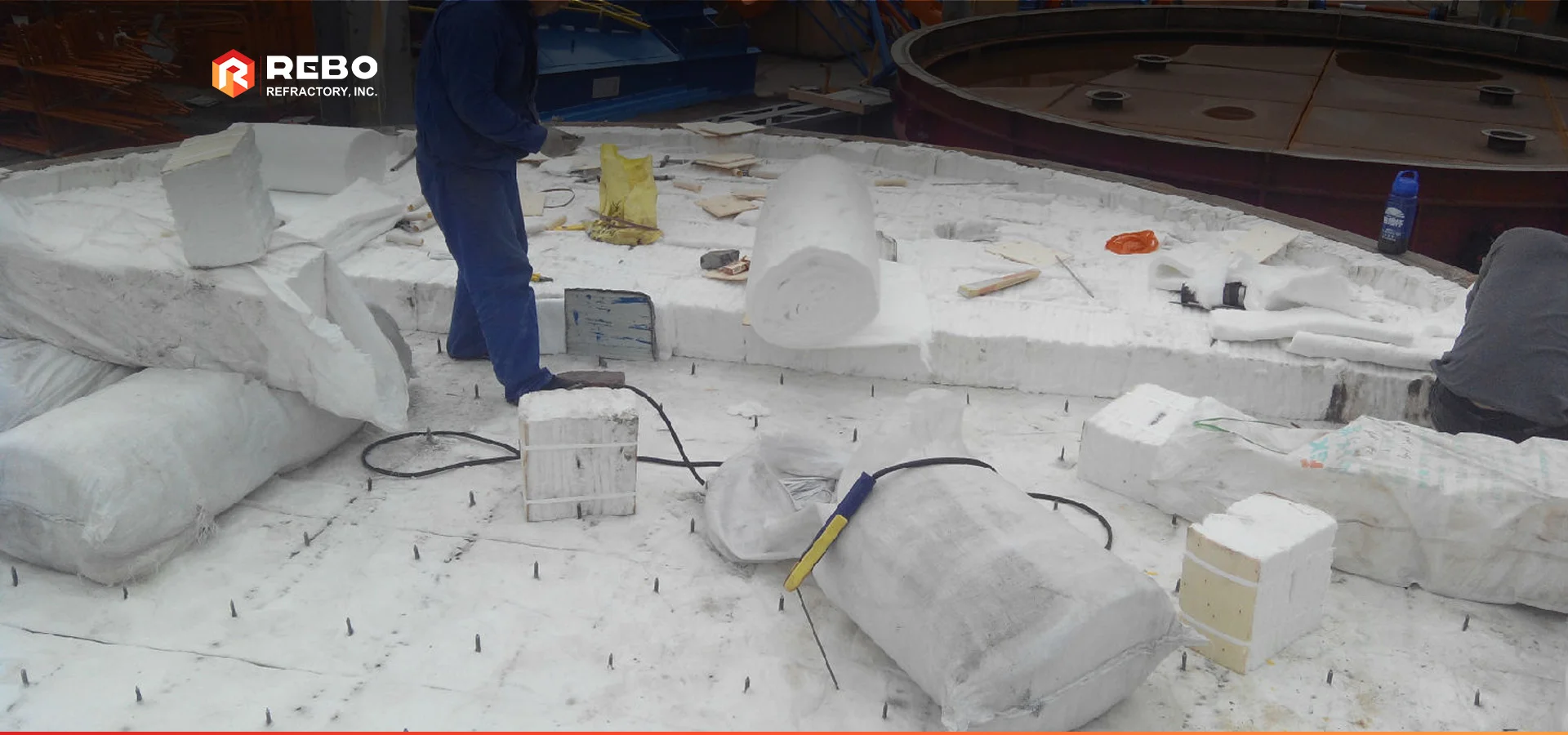

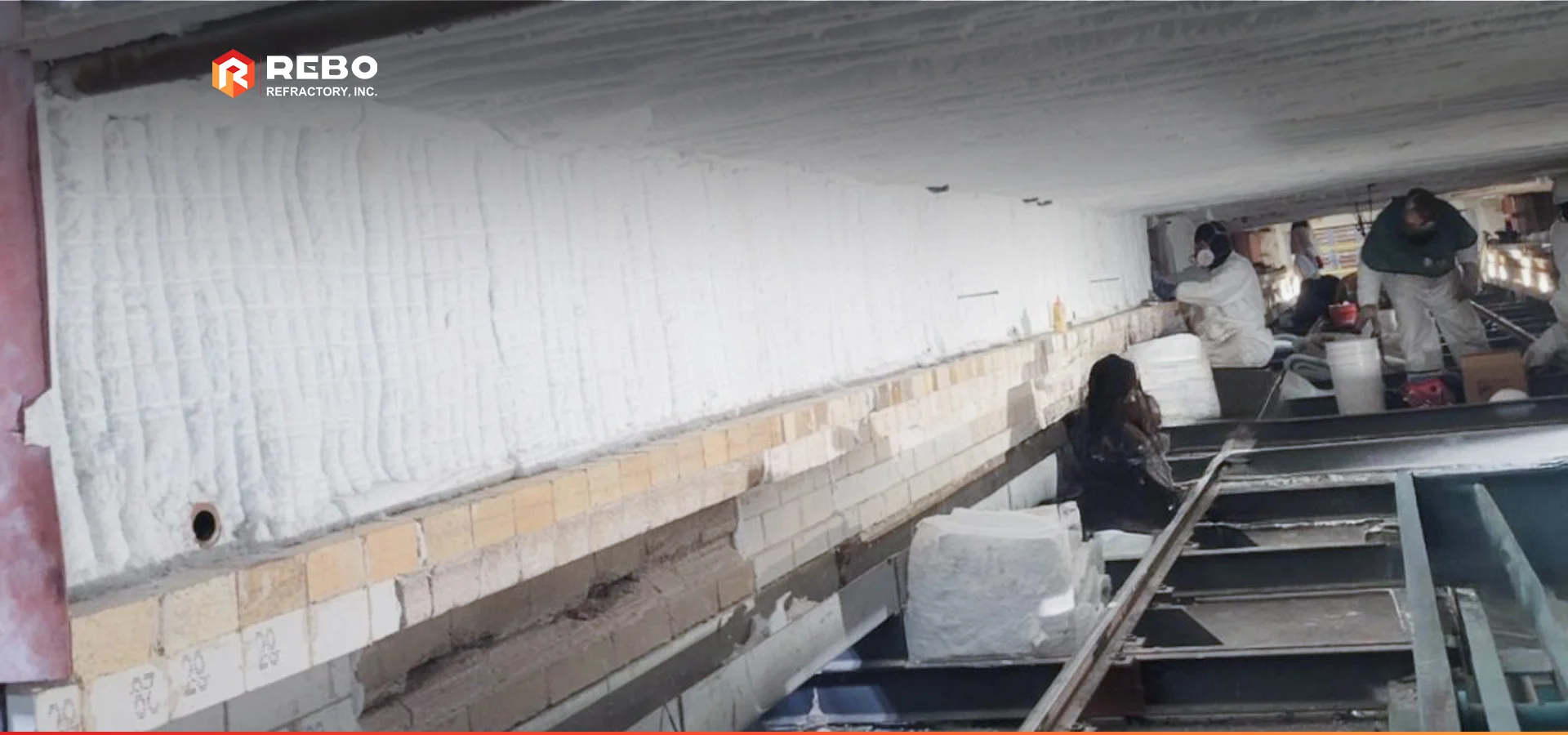

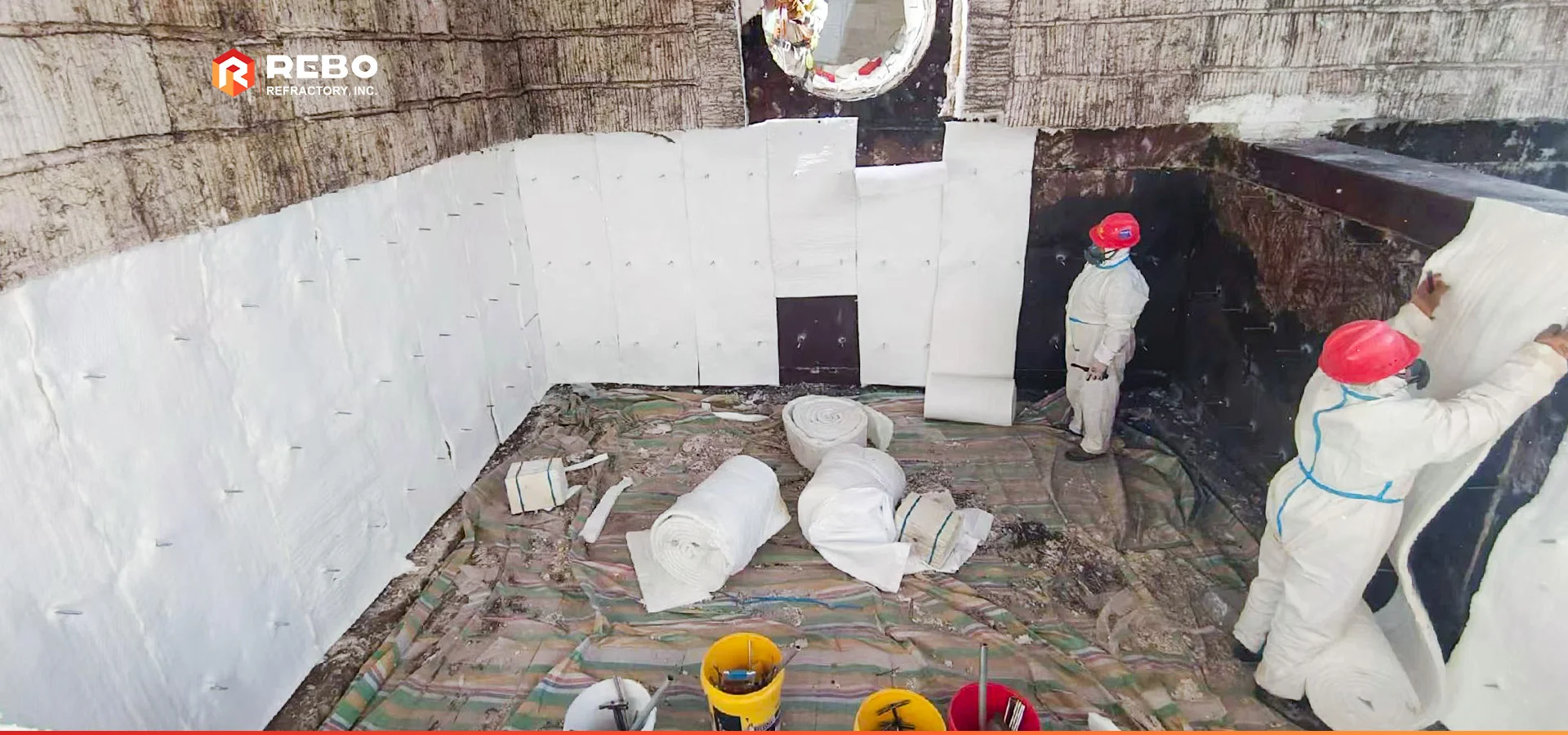

Real Project Installation of Ceramic Fibre Roll
REBO technical team analyzes your equipment layout and thermal load first. Then, REBO delivers a custom, zero-waste insulation plan with the exact grade and thickness you need.
Built for the world’s toughest high-temp environments. REBO blankets meet strict international engineering standards across global steel plants, kilns, and petrochemical sites.
Customers switching to REBO from Morgan’s Superwool, Kaowool, Cerablanket, Cerachem, and Alphawool enjoy highly competitive pricing, excellent performance, 20%–25% energy savings, and extended equipment lifespan.
RUSAL, CHALCO, Alba, Egypt Aluminium, POSCO, ArcelorMittal, NLMK, Pakistan Steel Mills, HWI, Al-Badia Cement, El-Arish Cement, Rybnitsa Cement, Ghazvin Glass, PROYING, Scybe Glass, etc.
Wholesale Ceramic Fibre Blanket Price
When you bypass trading firms and partner directly with REBO’s manufacturing facility, you immediately eliminate the inflated commissions that drain your procurement budget. This direct-from-source relationship establishes a highly transparent supply chain. This allow your specific engineering requirements to go straight to our production floor without any middleman distortion or miscommunication. By reclaiming these lost margins, global distributors and procurement managers can significantly maximize their own profitability while keeping overall project costs predictable.
100% Factory-Direct Advantage
REBO manufactures every square meter of our ceramic fire insulation blankets in our own advanced facility. There are no trading agents, no hidden commissions, and no extra markups. From standard orders to high-volume bulk purchasing, we pass the manufacturing cost savings directly to your bottom line with flexible, tiered factory-direct pricing.
Tailored Cost Optimization
Industrial insulation should never follow a “one-size-fits-all” price tag. We calculate your cost precisely based on your technical specs: Classification Temperature, Density, and Thickness. This transparent pricing structure ensures you get maximum performance without overpaying for unnecessary material grades.
Get a Custom Quote in 24 Hours
Because REBO Refractory customize solutions for every customer, we do not post fixed, inflated ceramic fibre blanket prices online. We highly welcome inquiries of all sizes from engineering trial orders to global distributor contracts. Leave message to get price now!

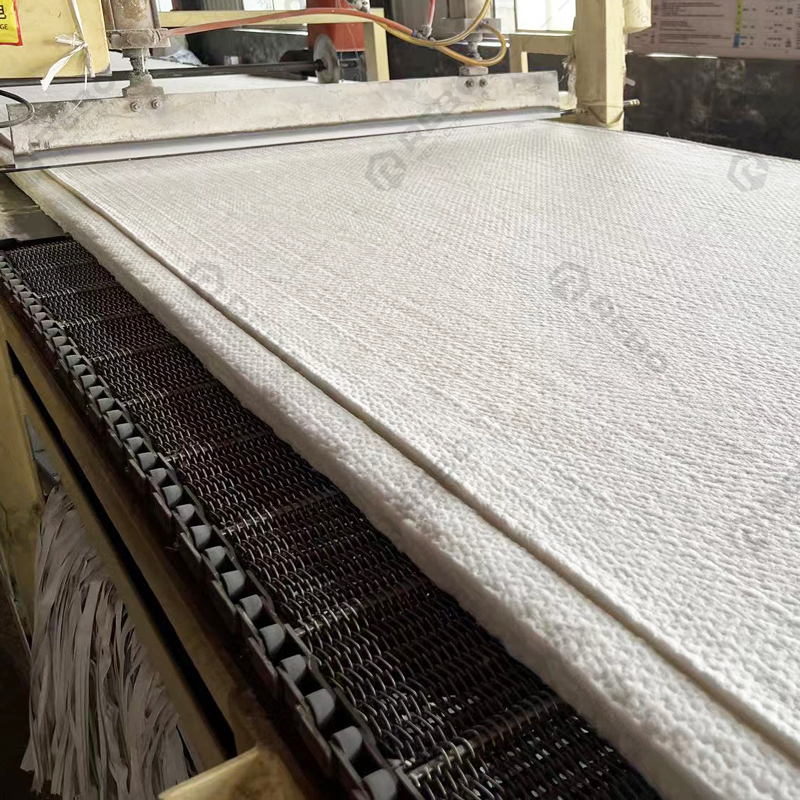

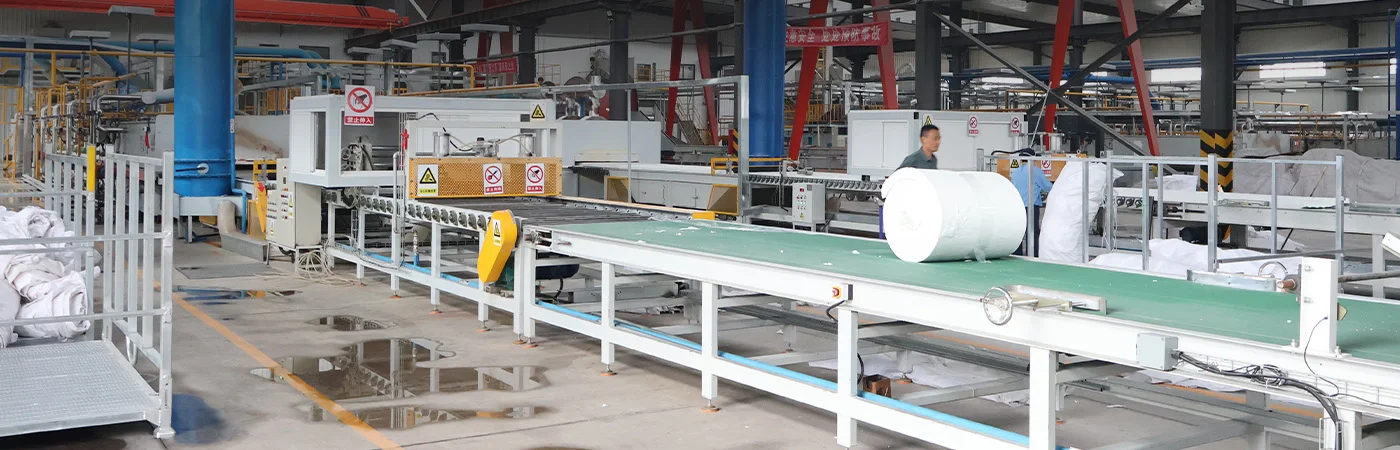

REBO Factory Manufacturing Strength

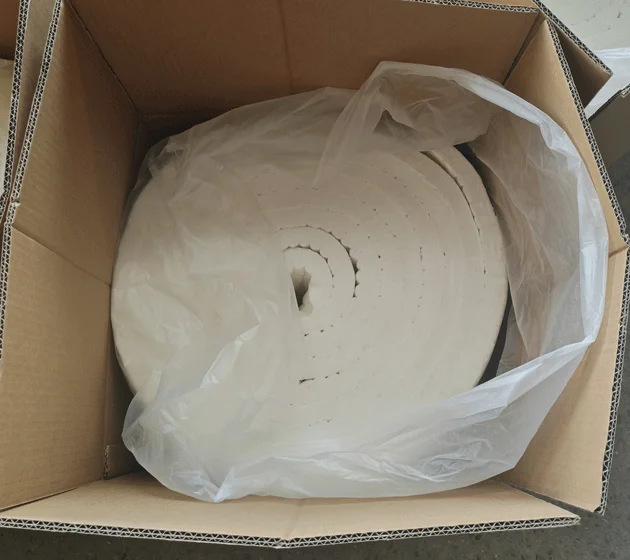

Quality Certifications & Standards of Ceramic Insulation Blanket

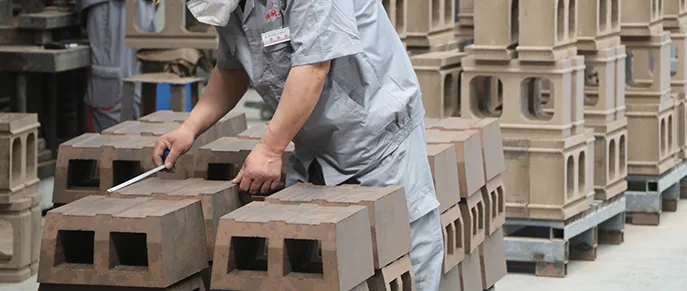

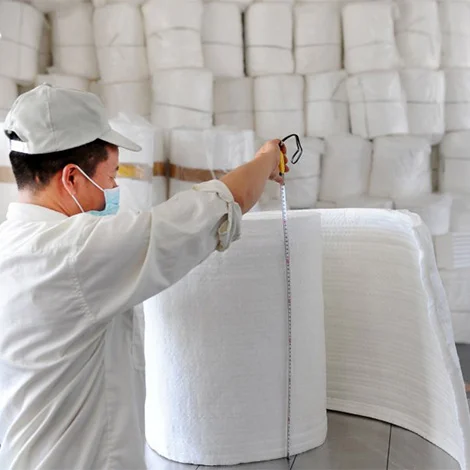

REBO thermal ceramic blanket meet strict international quality standards. Every ceramic fiber insulation baffle fire blanket leaves our factory fully tested. Quality is not optional. It is built into every step of our manufacturing process.
REBO refractory blanket insulation are fully asbestos-free. This meets RoHS and REACH environmental compliance requirements. Safe for workers. Safe for the environment. Our ceramic insulation blanket for sale carries SGS third-party testing reports. Results are available upon request.
REBO De-risks Your Supply Chain
Purchasing industrial insulation shouldn’t be stressful. REBO streamlines the entire blanket ceramic fiber sourcing process. This ensures complete financial safety, tailored branding, and on-time project execution.
Rapid & Tailored Quotations
Simply share your required dimensions, density, quantity, and project timeline. Our technical team won’t just send a ceramic blanket price list. REBO will generate an optimized, project-specific quotation tailored to your exact budget and timeline.

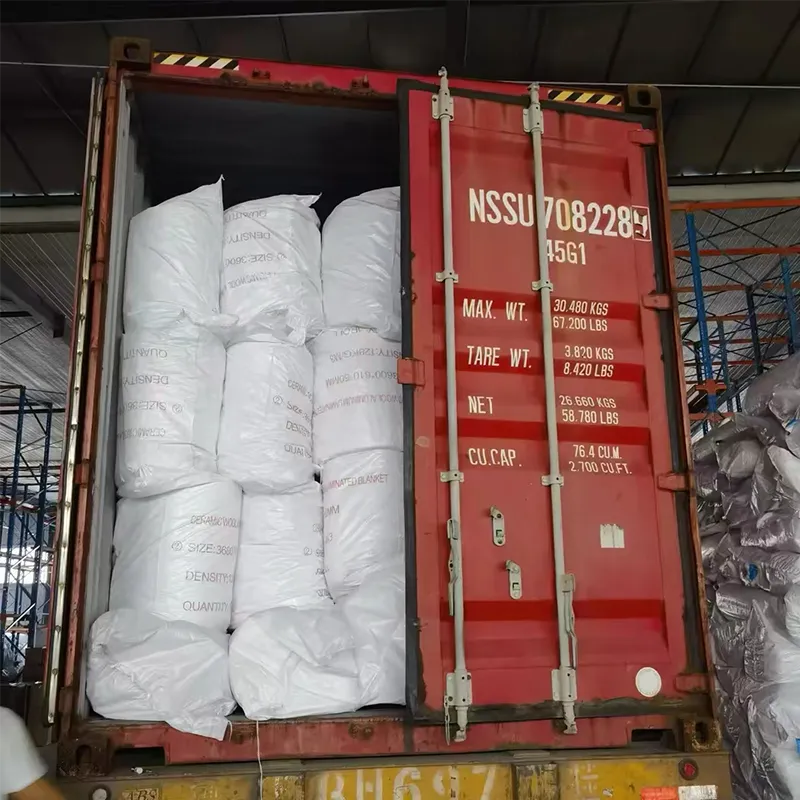

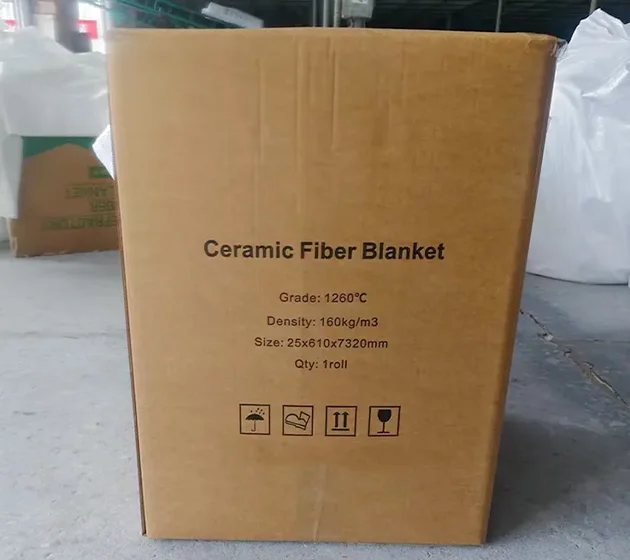

Transit-safe Packaging & Private Labeling

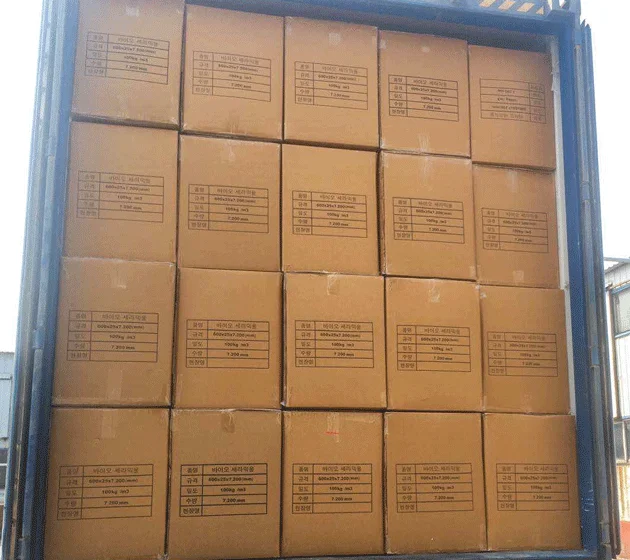

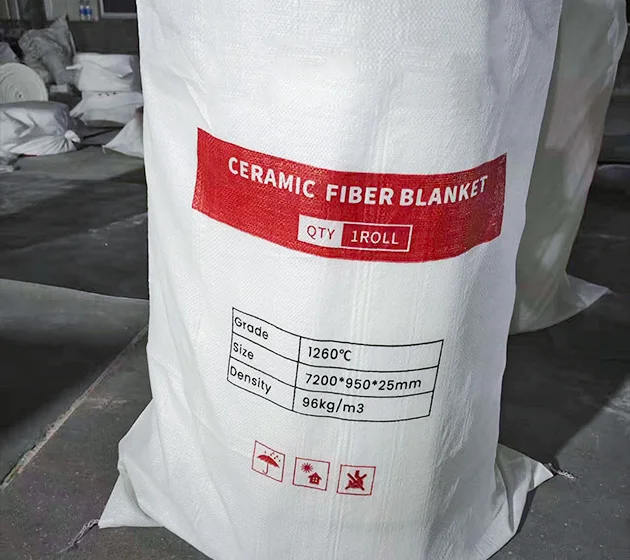

Protect your investment against harsh maritime transit with heavy-duty export cartons or standard woven bags. To safeguard your client relationships, we guarantee 100% blind shipping and neutral packaging, fully backed by complete OEM support for your customized logos and tailored shipping marks.

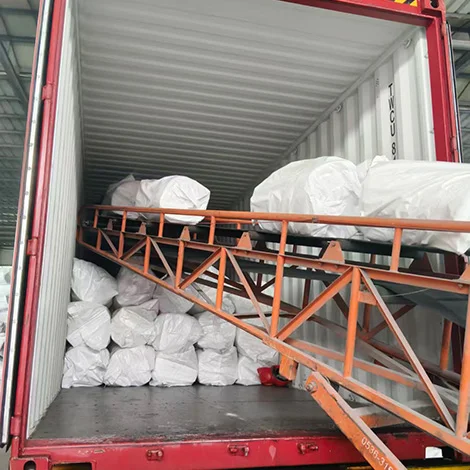

Accelerated Global Freight Networks
Eliminate project downtime. Relying on our strategic partnerships with global shipping lines and multi-channel logistics networks, we guarantee rapid factory-to-port dispatch and optimized vessel routing to shorten your supply chain lead time.
100% Secure & Flexible Payment Channels
Your capital safety is our priority. To ensure a smooth and risk-free purchasing experience, we support multiple internationally trusted, transparent payment methods, keeping your transaction safe from deposit to final port release.

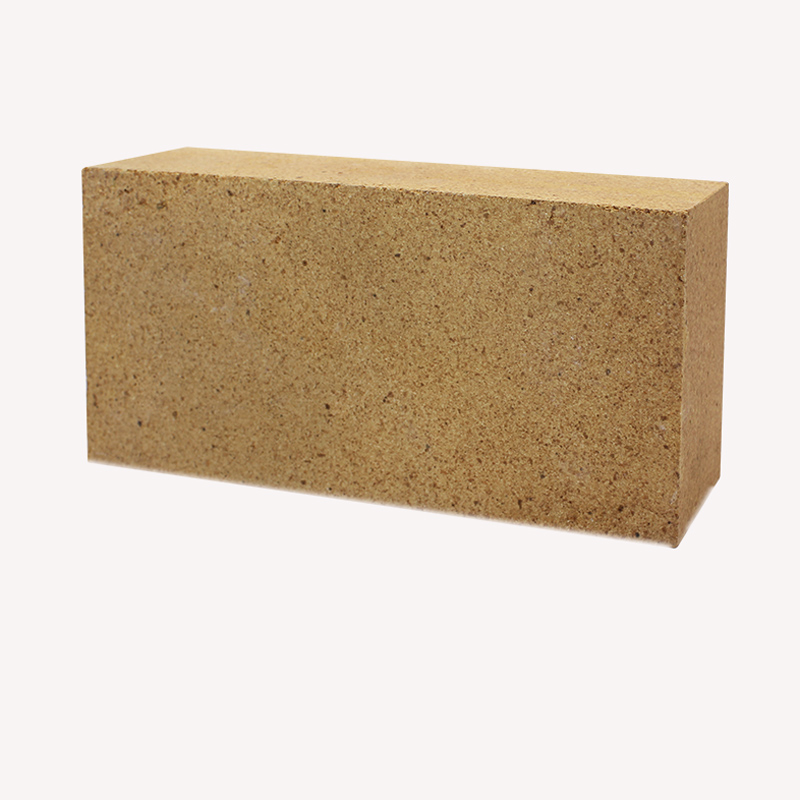

Complementary Refractory and Insulation Materials
Standard Grade vs High-Purity Grade Ceramic Blanket For Sale
√ Operating temperature stays below 1260°C
√ Application is general industrial insulation
√ Budget is a primary consideration
√ Equipment runs at stable temperatures
√ Operating temperature exceeds 1260°C
√ Application involves corrosive atmospheres
√ Long-term stability is critical
√ Equipment runs in steel, glass, or petrochemical industries

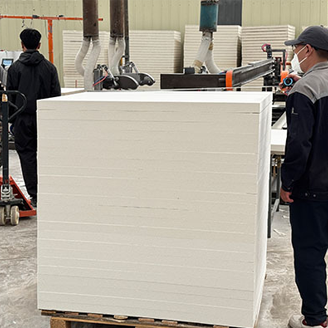

Ceramic Refractory Blanket vs Board vs Module
| Comparison | Kiln Blanket | Ceramic Fiber Board | Ceramic Fiber Module |
|---|---|---|---|
| Form | Flexible roll | Rigid flat panel | Pre-compressed block |
| Flexibility | High | None | Low |
| Structural Strength | Low | High | Medium |
| Thermal Shock Resistance | Excellent | Good | Excellent |
| Ease of Installation | Very Easy | Medium | Easy |
| Installation Method | Cut & wrap or layer | Cut & fix with anchors | Push-fit with anchors |
| Handling | Soft & lightweight | Rigid & fragile | Firm & lightweight |
| Suitable Surface | Curved, irregular & flat surfaces | Flat surfaces only | Large flat furnace walls |
| Joint & Gap Risk | Low (continuous coverage) | Medium (requires sealing) | Low (tight fit design) |
| Best For | Flexible wrapping & layering | Structural & load-bearing insulation | Large-area furnace lining systems |
| Typical Applications | Kiln linings, pipe insulation, furnace doors, expansion joints | Furnace doors, kiln car tops, burner blocks, backing boards | Large kiln & furnace wall linings, rapid installation projects |
| Custom Sizes | Yes | ||
Still unsure which material fits your project? Browse real installation cases across steel, cement, and petrochemical sites on REBO Instagram page.
REBO Ceramic Blanket Insulation VS Other Insulation Products
| Comparison | High Temp Ceramic Blanket | Insulation Brick | Rock Wool/Glass Wool |
|---|---|---|---|
| Max. Service Temperature | 1050–1430°C | 800–1550°C | ≤650°C |
| Thermal Conductivity (W/m·K) | 0.05–0.15 | ~0.20–0.40 | ~0.03–0.05 (≤200°C) |
| Weight | Light (96–160 kg/m³) | Heavy | Relatively Light |
| Ease of Installation | High (cuttable & flexible)Asbestos-free | Low (requires masonry & mortar) | Medium (requires cutting & fixing)Contains asbestos |
| Energy Saving Performance | Reduces energy consumption by 20%–30% | Average | Good at low temps; Ineffective at high temps |
| High-Temp Stability | Excellent | Good | Poor |
| Price Level | Medium | Medium-High | Low |
| Typical Applications | Industrial kilns, petrochemical furnaces, high-temp pipelines | High-temp furnace walls, structural support layers | Building insulation, HVAC ducts, cold storage |
FAQs of Ceramic Fiber Insulation Blankets
Q: What Is Ceramic Fiber Insulation Blanket Roll?
Q: How Do I Choose The Right Kiln Insulation Blanket For My Application?
Temperature: Choose a classification temperature above your peak operating temperature
Density: 96 kg/m³ suits general use. 128 kg/m³ and 160 kg/m³ suit heavy-duty industrial kilns
Atmosphere: Oxidizing, neutral, and reducing atmospheres require different grades
Dimensions: Custom sizes are available for any kiln design
Contact our team for a free selection recommendation.
Q: Why Uses Refractory Ceramic Fiber Blanket?
Q: How Long Does A Refractory Ceramic Fiber Blanket Last?
Avoid direct flame contact on the blanket surface.
Inspect the lining regularly for shrinkage or damage.
Replace damaged sections promptly.
Choose high-purity grade for extreme temperature environments.
Q: Is Ceramic Fiber Mat Safe To Handle And Install?
Wear gloves, long sleeves, and safety goggles at all times
Use a dust mask or respirator to prevent fiber dust inhalation
Wash hands and exposed skin thoroughly after handling
Do not rub eyes during or after installation
Our refractory ceramic fiber blanket sheet is 100% asbestos-free. It complies with RoHS and REACH standards. Full safety data sheets are available upon request.

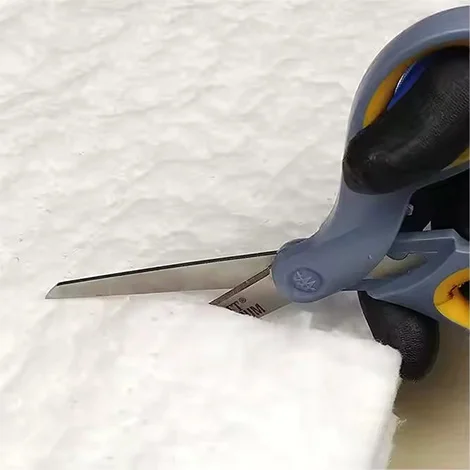

Q: Can Refractory Insulation Blanket Be Cut To Custom Sizes?
Standard knives or scissors are all you need
Fits curved surfaces, irregular shapes, and complex kiln geometries
Custom roll lengths, widths, and thicknesses available from our factory
No waste. No special tools. No extra labour
Send us your kiln dimensions for a tailored quote.
Q: How Many Layers Of Ceramic Fiber Mat Do I Need For My Kiln?
Light-duty: 1 layer × 50mm fiber blanket for kiln.
Heavy-duty industrial: 2+ layers × 25mm ceramic fiber mat.
Total lining thickness typically ranges from 50mm to 200mm.
Always stagger joints between layers to eliminate heat leakage paths.
Our technical team provides free lining design recommendations for every project.
Q: Are You a Manufacturer or a Trading Company?
This hybrid model gives you the ultimate competitive edge: you get direct factory-floor pricing with zero middleman inflation, combined with the flexible, rapid export services of a dedicated trading partner.
Q: How Is A Refractory Ceramic Fiber Blanket Installed And Fixed In Place?
Step 1. Cut the refractory fiber blanket to the required size
Step 2. Fix the blanket to the kiln shell using stainless steel anchors or ceramic fiber adhesive
Step 3. Stagger all joints between layers to eliminate gaps
No mortar. No curing time. The lining is ready for immediate use after installation. For large flat surfaces, ceramic fiber modules work alongside refractory insulation blanket for faster full coverage.
