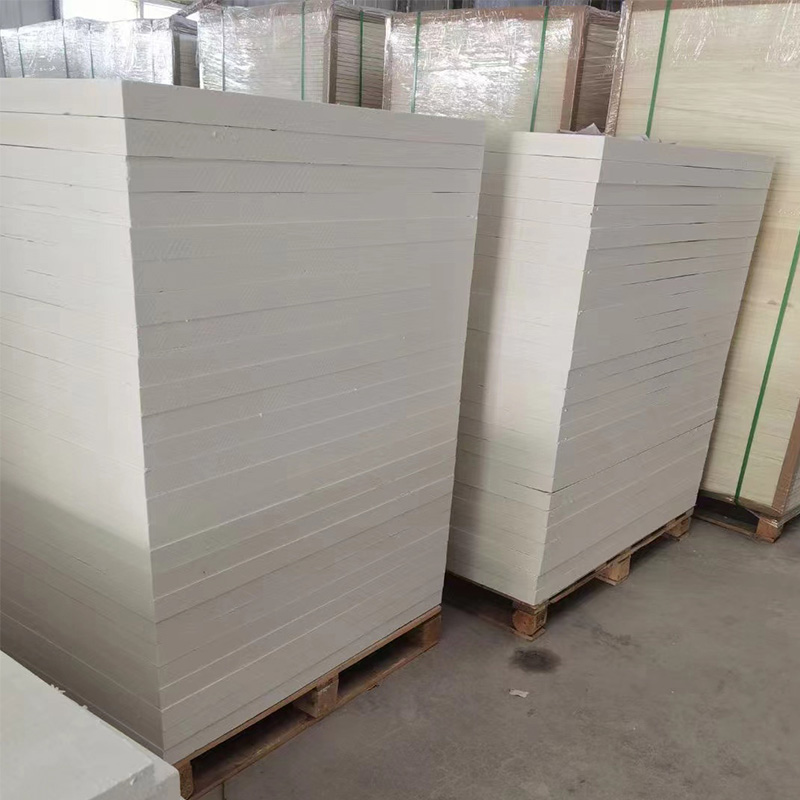

Why Bio Soluble Fiber Board Is Redefining Industrial Insulation?
As industries face increasing pressure to meet occupational health regulations and environmental compliance standards, bio soluble fiber board is emerging as the material of choice for high-temperature industrial insulation. Manufactured from high-purity alkaline earth silicate wool fibers, it dissolves naturally in body fluids and is classified as non-carcinogenic under EU and international safety standards, making it a responsible and future-proof alternative to traditional refractory ceramic fiber and aluminosilicate wool, without the bio-persistence risks that increasingly restrict their use in regulated markets.
Beyond its environmental and safety credentials, bio soluble fiber board delivers the rigid, lightweight thermal performance that demanding industrial applications require. Rated for operating temperatures above 800°C, it can be precision-cut, machined, and formed to fit complex furnace geometries with ease. Its consistent thermal performance across both continuous and intermittent heating cycles makes it a reliable long-term insulation solution. One that allows industries to meet their toughest process requirements and their most stringent sustainability commitments at the same time.
Technical Specifications Of REBO Bio Soluble Fiber Board
| Soluble Fiber Products | AEF-RBD(Board) | |
|---|---|---|
| Max·Service Temperature | 1000 | |
| （KG/m3） Density | 250/280/300 | |
| (24h)Linear shrinkage（After burning） | ≤3.0 | |
| （1000℃） | ||
| (W/m.k)Thermal Conductivity Rate | Density | 300KG/M3 |
| 400℃ | 0.09 | |
| 600℃ | 0.12 | |
| 800℃ | 0.18 | |
| Chemical Composition（After burning） | SiO2 | 62-68 |
| CaO | 22-28 | |
| MgO | 2-6 | |
| Others | ≤3.0 | |
| （mm） Standard size | 1000*600*20-50 | |

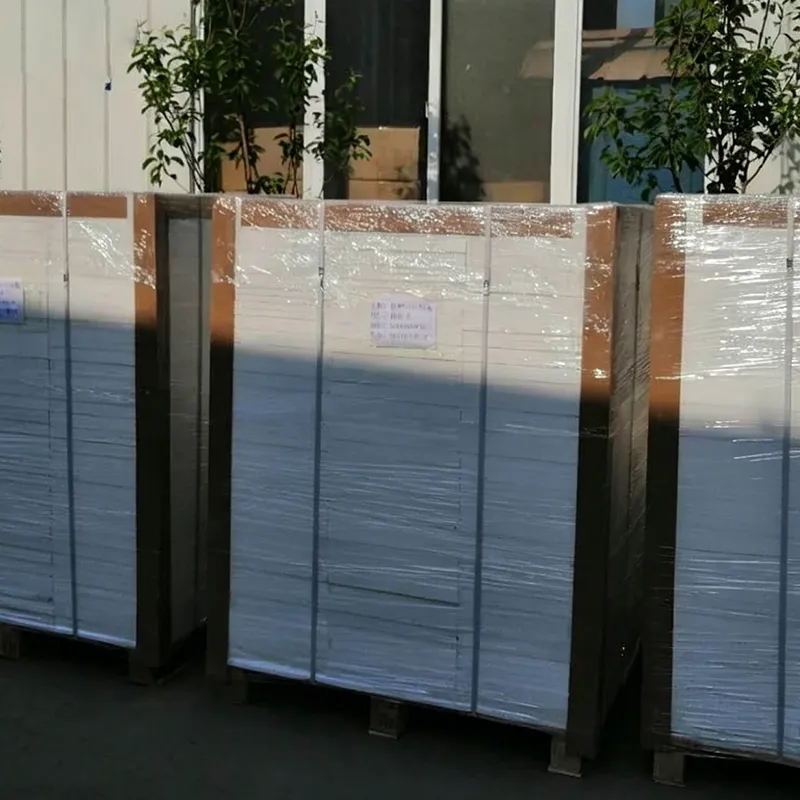

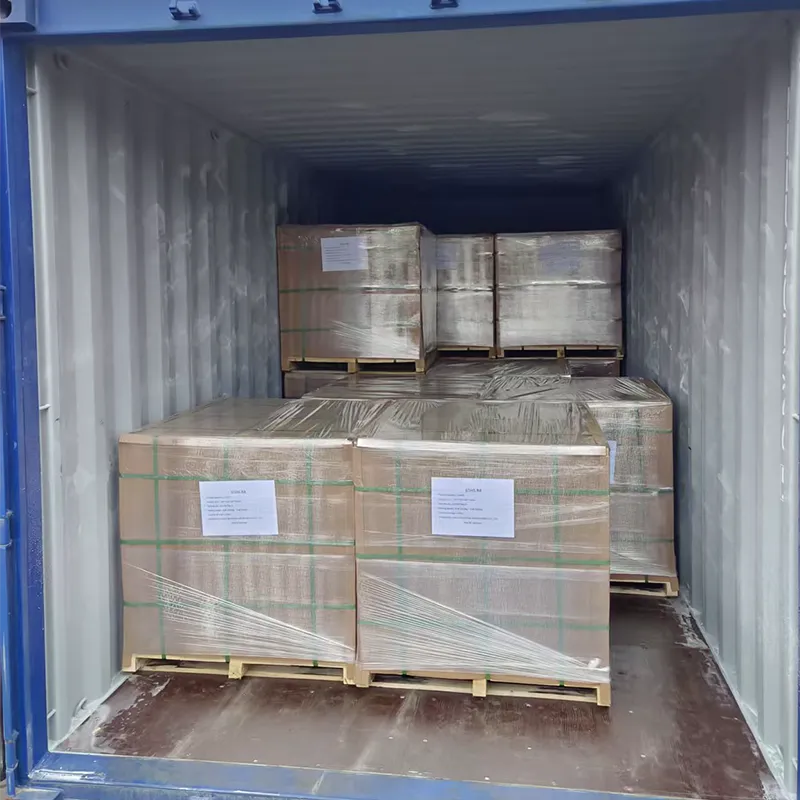

| Package | Cartons | |
| Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~250℃ lower than the maximum service temperature, In reductive atmosphere, 200 ~350℃ lower than the maximum service temperature. | ||
Why Choose Bio Soluble Fiber Board Over Other Products?
Safe for workers, no carcinogen classification;
Compliant with EU & North American regulations;
High-temperature resistance up to 1000°C;
Easy to cut, machine, and install;
Competitive total cost of ownership;
Suitable for kiln linings, backup insulation, and module systems.
| Criteria | Bio Soluble Fiber Board | Ceramic Fiber Board | Calcium Silicate Board |
|---|---|---|---|
| Max. service temp. | Up to 1000 °C | Up to 1460 °C | Up to 1000 °C |
| Bio-persistence (health risk) | ✓ Safe | Cat. 1B carcinogen (EU) | Asbestos-free; Generates dust during processing. |
| REACH / EU Directive compliance | ✓ Fully compliant | Restricted use | ✓ Compliant |
| Thermal conductivity (low = better) | ✓ Low | ✓ Low | Moderate |
| Machinability / ease of installation | ✓ Excellent | ✓ Good | Moderate |
| Cost vs. performance | ✓ High value | ✓ High value | ✓ Economical |

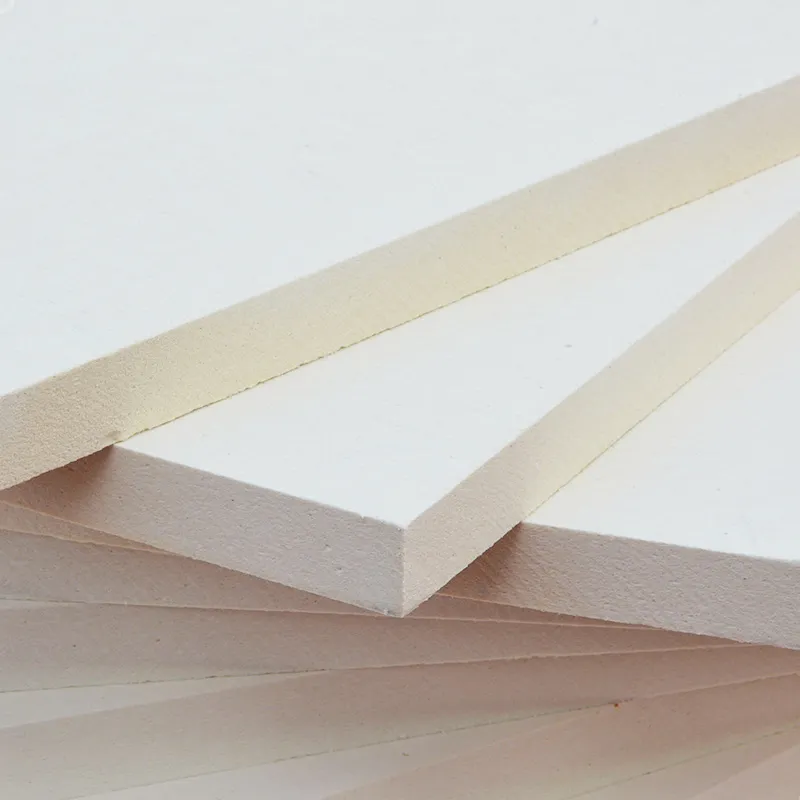

REBO Bio Soluble Fiber Board Properties
Dissolves safely in body fluids, posing no long-term health risk to workers.
High Temperature Resistance
Withstands continuous service temperatures up to 1050°C–1200°C.
Low Thermal Conductivity
Excellent insulation performance, significantly reducing heat loss and energy costs.
Ultra-low bulk density minimizes structural load and speeds up installation.
Thermal Shock Resistance
Maintains structural integrity under rapid or repeated temperature cycling.
Easy to Cut & Install
Can be easily cut, nailed, or folded on-site, reducing labor time and cost.
Bio Soluble Fiber Boards In Different High-Temperature Industries
Bio soluble fiber board is engineered for consistent performance in environments where failure of insulation materials leads to costly downtime, safety incidents, or energy waste. Below are the primary application sectors where specifiers and plant managers choose BSF board.
Tunnel, shuttle, and roller kilns in ceramics, tiles, and sanitaryware manufacturing.
Annealing, hardening, and tempering furnaces in metals and automotive components.
Reformer furnaces, cracking units, and process heaters requiring bio-safe insulation.
Boiler backup insulation, expansion joints, and turbine casing seals.
Crown and sidewall insulation in float glass and container glass furnaces.
Incinerators and thermal oxidizers handling waste streams at 900–1100 °C.

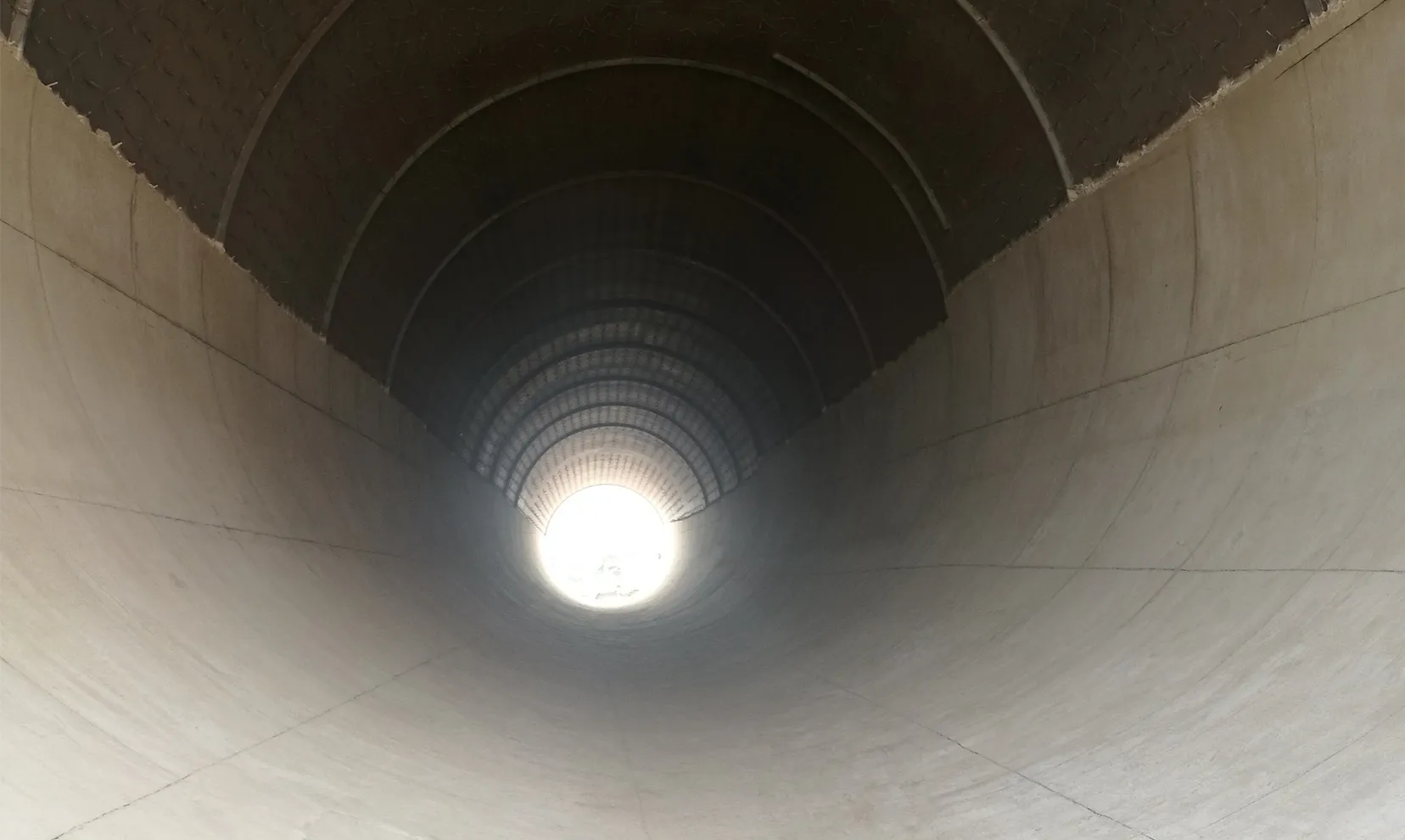

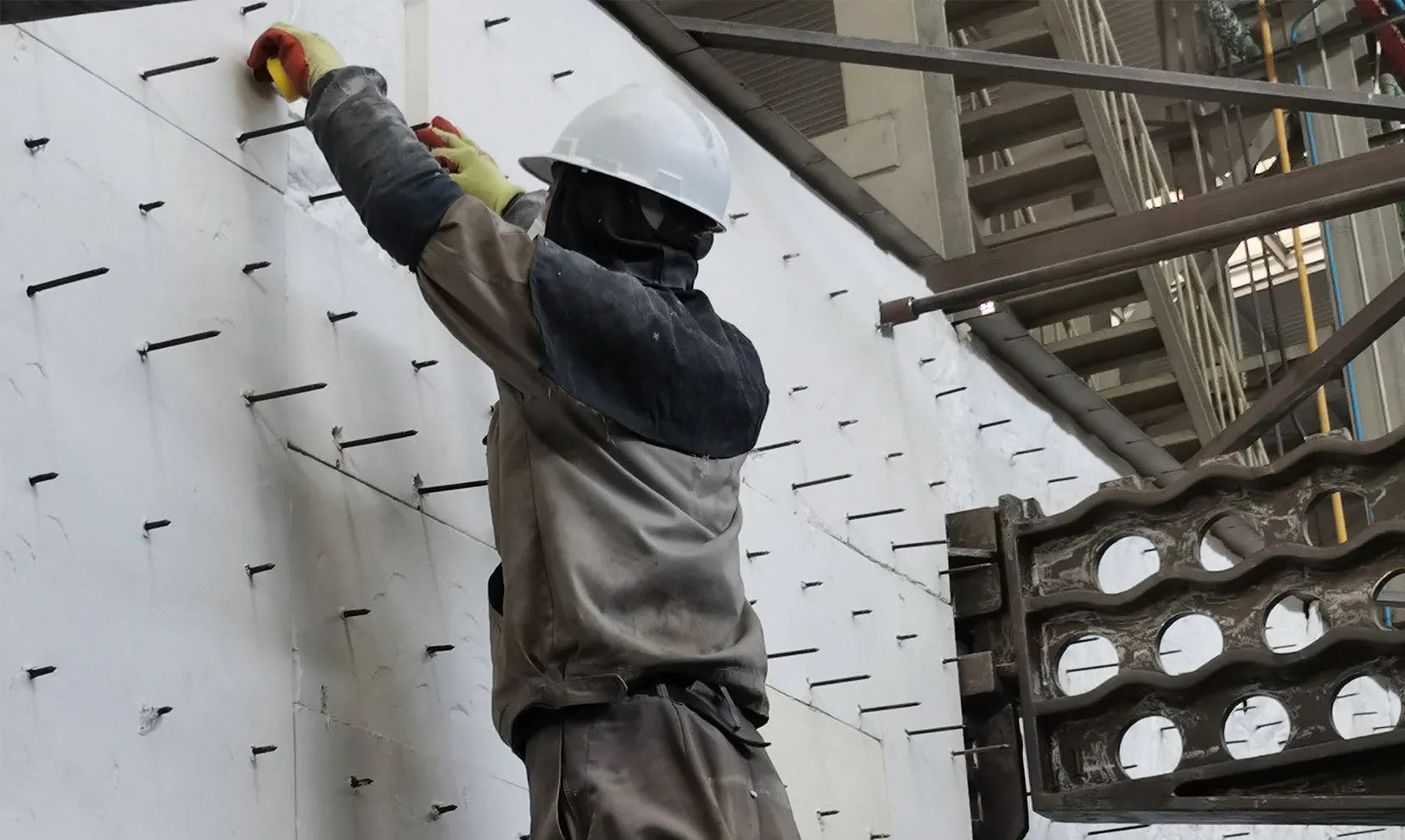

Proven Performance of Bio Soluble Fiber Board on Industrial Sites
Industry’s Top Choice
REBO bio-soluble fiber boards have become the premier insulation choice across a wide range of demanding industries worldwide. From the backing layers of heavy-duty petrochemical and cement kilns to the precise insulation of commercial equipment and fire-rated maritime bulkheads, our boards are hard at work in real-world construction sites every day.
Engineers and site managers globally consistently praise REBO for its exceptional thermal efficiency, superior mechanical strength, and easy machinability. More importantly, its eco-friendly, non-carcinogenic formulation ensures compliance with strict safety regulations, earning us high marks and repeat orders from long-term industrial partners.
Certificate for Global Procurement Standards
Sourcing high-temperature insulation for global operations means navigating a minefield of conflicting regional standards, especially in Europe, the United States, and tightening workplace safety mandates across Canada, Australia, and Japan.
Our Bio-Soluble Fiber Board carries third-party certification confirming compliance with EU REACH requirements, and ISO, SGS, AEO, REACH, CE ASTM, ect., with full Safety Data Sheets (SDS) available in English, and other language. Every production batch ships with a Certificate of Conformance. For OEM suppliers and Tier-1 manufacturers under ESG audit pressure, our certification package is designed to drop cleanly into your supplier qualification workflow, not create more paperwork on your end.
Related Products of High Alumina Refractory Bricks
FAQs About Bio Soluble Fiber Board
Q: Is Bio-Soluble Fiber Board Safe? Does It Contain Rcf? Is It Classified as a Carcinogen?
A: Yes, it is completely safe. Our Bio-Soluble Fiber Board is made from calcium-magnesium-silicate (CMS) fibers, which have high solubility in human body fluids. Unlike traditional ceramic fiber (RCF), it is exempt from any carcinogenic classification under European Directive 97/69/EC (Note Q). It does not pose a health hazard during processing or installation.
