Aluminum Silicate Fiber Blanket Specification
REBO offers five distinct product grades, from standard to zirconium-containing, to match your precise industrial environment. By optimizing chemical purity and composition, each grade minimizes shrinkage and maximizes tensile strength under specific thermal loads. Available in both standard and custom dimensions, our versatile line helps engineers easily select the ideal temperature resistance and density for any kiln, furnace, or piping project.
| Item | Common Type | Standard Type | High Purity Type | High Alumina Type | Zirconium Containing Type |
|---|---|---|---|---|---|
| Classification Temperature, ℃ | 1050 | 1260 | 1260 | 1350 | 1430 |
| Service Temperature, ℃ | <1000 | 1050 | 1100 | 1200 | 1350 |
| Bulk & Density, kg/m³ | 96-128 | 96-128 | 96-128 | 128-160 | 128-160 |
| Permanent Liner Change, % | -4 (1000℃) | -3 (1000℃) | -3 (1100℃) | -3 (1250℃) | -3 (1350℃) |
| Heat Conductivity Coefficient, W/(m·k) (Bulk Density 128kg/m³) | 0.09 (400℃) 0.176 (800℃) |
0.09 (400℃) 0.176 (800℃) |
0.09 (400℃) 0.176 (800℃) 0.22 (1000℃) |
0.132 (600℃) 0.22 (1000℃) |
0.76 (800℃) 0.20 (1000℃) |
| Strength of Extension, Mpa | 0.08-0.12 | ||||
| Al2O3, % | 44 | 46 | 47-49 | 52-55 | 39-40 |
| Al2O3+SiO2, % | 96 | 97 | 99 | 99 | – |
| Al2O3+SiO2+ZrO2, % | – | – | – | – | 99 |
| ZrO2, % | – | – | – | – | 15~17 |
| Fe2O3, % | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 |
| Na2O+K2O, % | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 |
| Size, mm | Standard Size: 7200/3600*610/1220*6-60; Customized Sizes | ||||
Material Profile & Ordering Information of Alumina Fiber Blanket

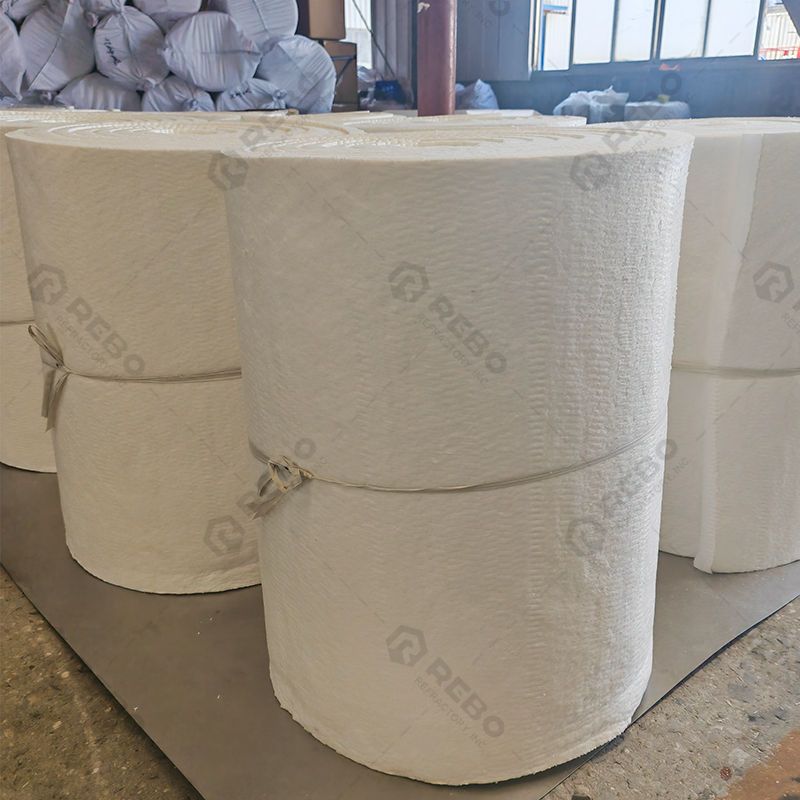

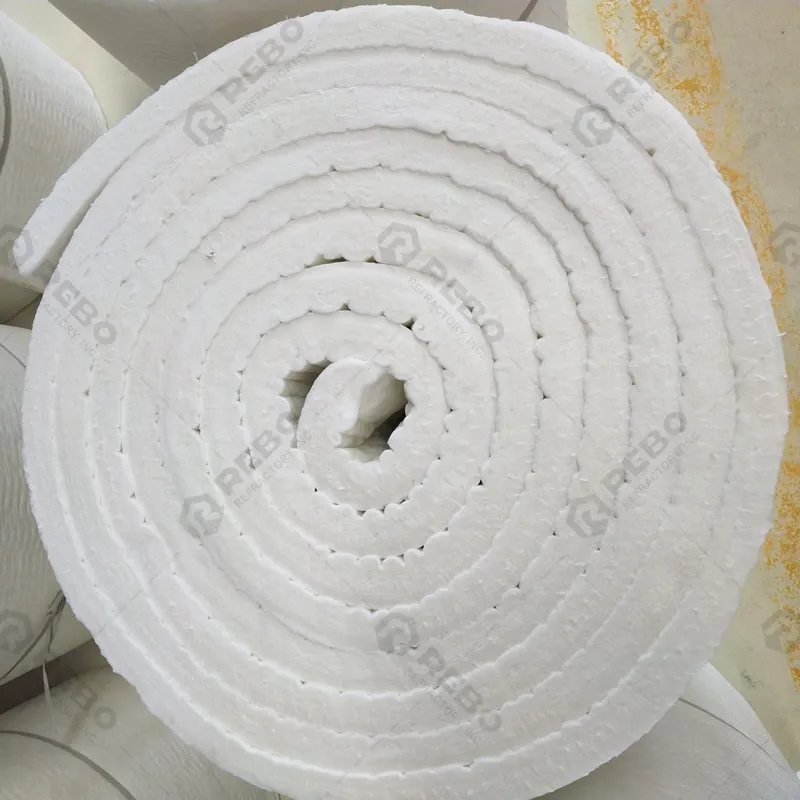

This eco-friendly aluminum silicate fiber blanket is also known as a ceramic fiber blanket. It is made from high-purity alumina-silica materials using advanced blowing or spinning processes. The resulting needle-punched blanket offers exceptional tensile strength and is 100% asbestos-free, using organic binders that emit no toxic smoke or odors during initial heating.
| Item | Details & Specifications |
|---|---|
| Service Temperature | 1050°C – 1430°C (1922–2606℉) |
| Standard Dimensions | Thickness: 6–60mm (approx. 0.24–2.36”) Length: 3600/7200mm (approx. 141.7/283.5”) Width: 600mm (23–24”), 610mm (24”), or 1220mm (48”) |
| Customization (OEM/ODM) | Fully customizable dimensions (thickness, width, length) and densities. |
| Product Color | Pure White |
| Delivery Time | Quick turnaround within 7–15 working days |
| Packaging Options | Secure Export Cartons or Woven Bags (Palletizing available upon request) |
| Shipping & Logistics | Multiple options available: Sea Freight (FCL/LCL), Air Freight, and Express Delivery. |
| Payment Terms | Flexible and secure methods supported: T/T, L/C, Western Union, PayPal, etc. |
Types of Aluminum Silicate Blankets
REBO Aluminium Silicate Blankets Define High Quality
Made by High-purity Materials

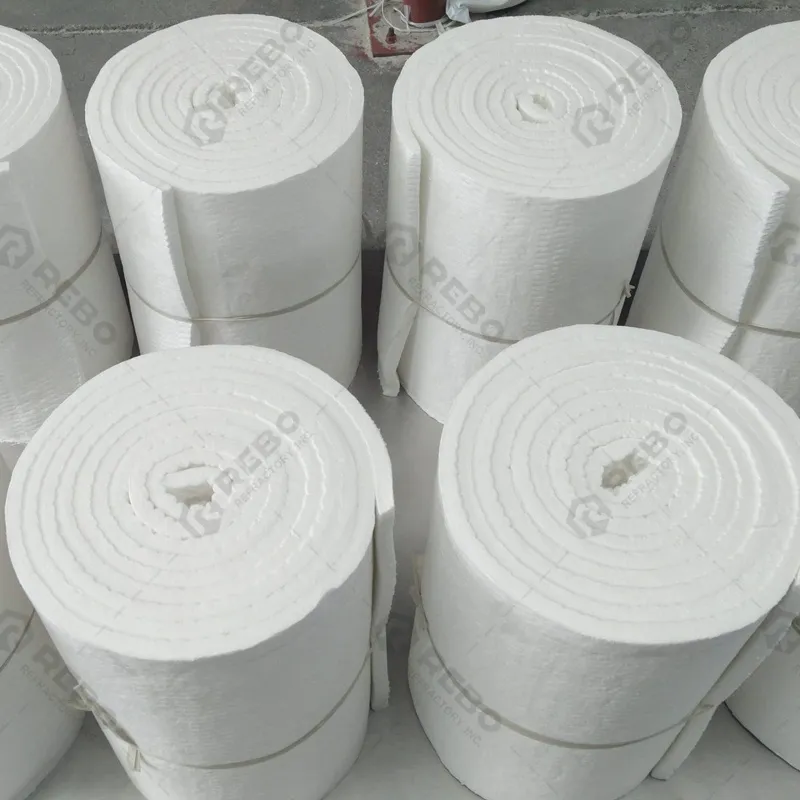

Engineered from high-purity synthesized raw materials, aluminium silicate high temperature insulation ceramic fiber blanket minimizes chemical impurities (Fe2O3≤0.2%) for enhanced corrosion resistance and an extended service life. Ultra-low shot content ensures exceptional thermal efficiency and a smoother texture.
Advanced Craftsmanship

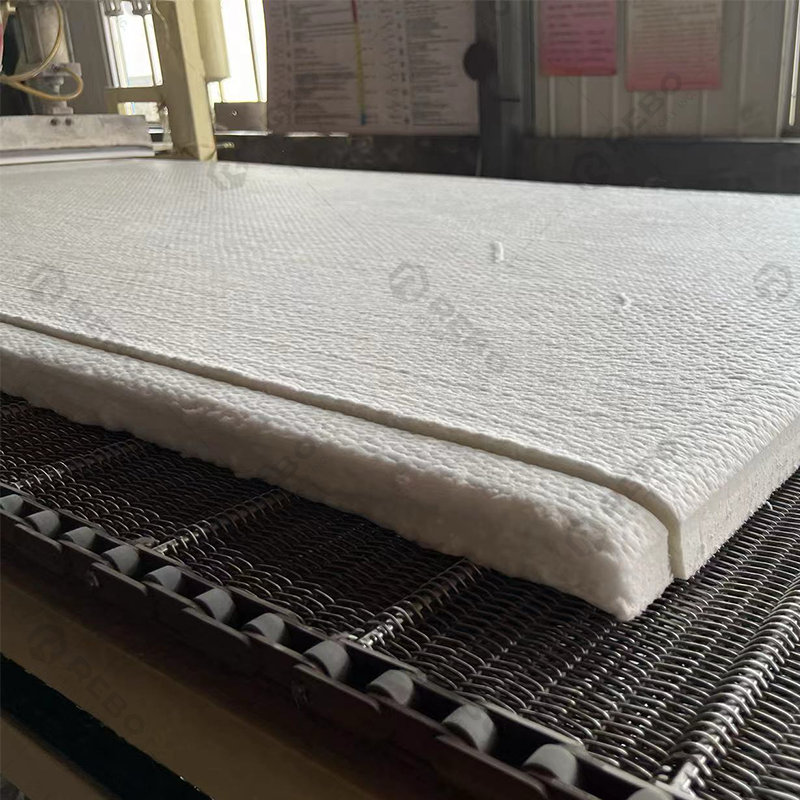

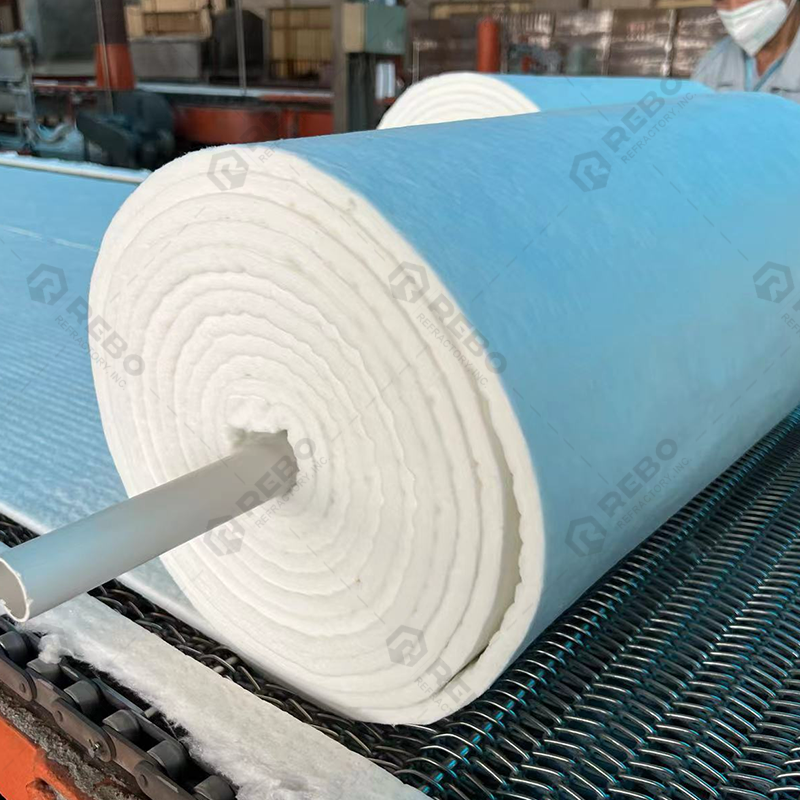

Utilizing advanced double-sided needle-punching technology, our blankets offer exceptional tensile strength (0.08-0.12 MPa) and structural integrity, making them easy to handle, cut, and install without tearing. Excellent fiber interlocking ensures zero delamination even under long-term high-temperature stress.
Eco-Friendly & Safety Compliance
It is 100% asbestos-free & non-toxic. Formulated with organic binders, emitting zero toxic smoke or unpleasant odors during initial heating. REBO products ensure full compliance with strict environmental and workplace safety regulations.
Global Certifications
It has fully certified quality. Backed by comprehensive international qualifications, including CE, ISO9001, ISO14001, ISO45001, REACH, ASTM, and SGS testing, ensuring our products meet the rigorous standards of global top-tier enterprises.
REBO’s Global Partners of Aluminum Silicate Fiber Blanket
The premium quality and reliability of REBO aluminum silicate fiber blankets are proven by the trust of top-tier global manufacturers. We serve as a key insulation partner across diverse high-temperature sectors, delivering optimized thermal efficiency to major industry leaders, including:
Partnered with premier international manufacturers such as Ghazvin Glass, PROYING, Egypt Aluminium, and Scybe Glass, ensuring precise temperature control and energy savings in heavy-duty furnace applications.
Our expanding network of international customers stands as a testament to REBO’s strong manufacturing capabilities, strict quality benchmarks, and dedication to engineered thermal solutions.

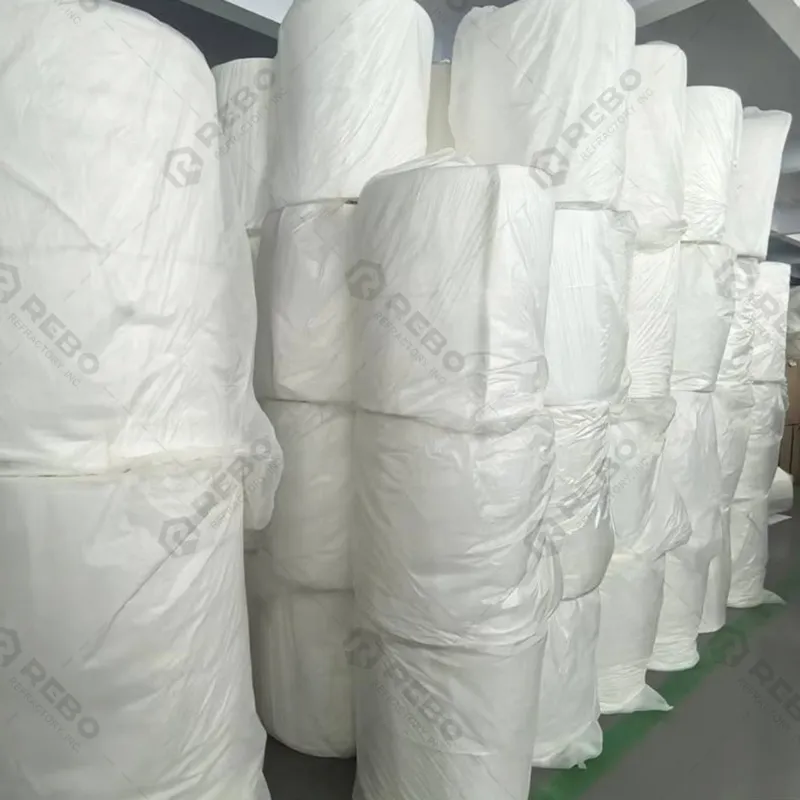

High-Volume Manufacturing Capacity
Massive Scale & Unmatched Annual Capacity

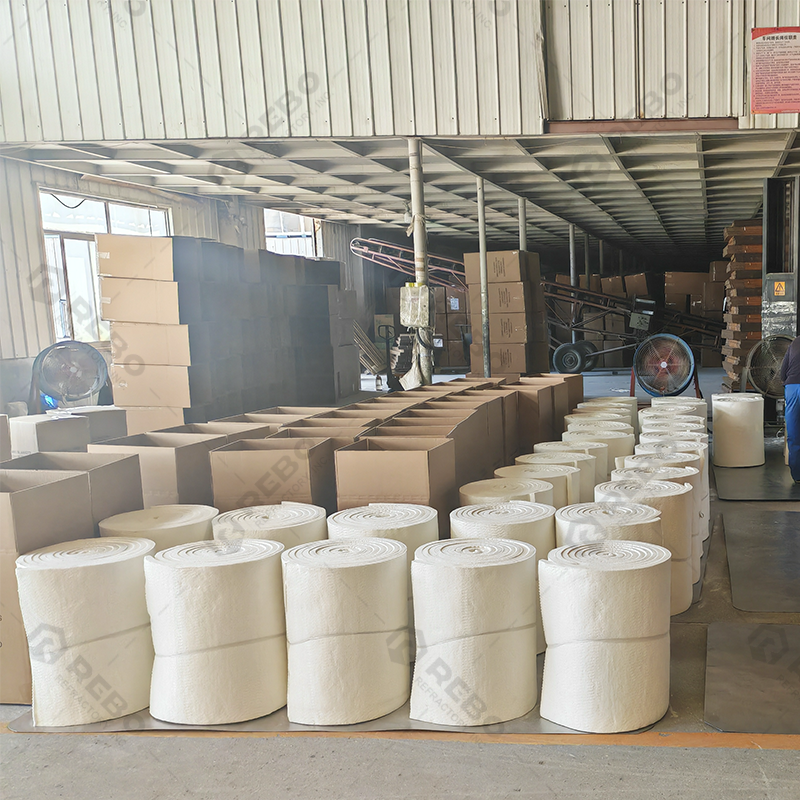

Our modern manufacturing facility houses 4 fully automated, continuous production lines that operate around the clock. With an impressive annual capacity of 590,000 tons, a sprawling factory footprint, and massive daily shipping volumes, we guarantee an uninterrupted supply and rapid turnaround times even for the largest global orders. View about us to see our story.
Advanced Packaging & Strategic Geographic Location

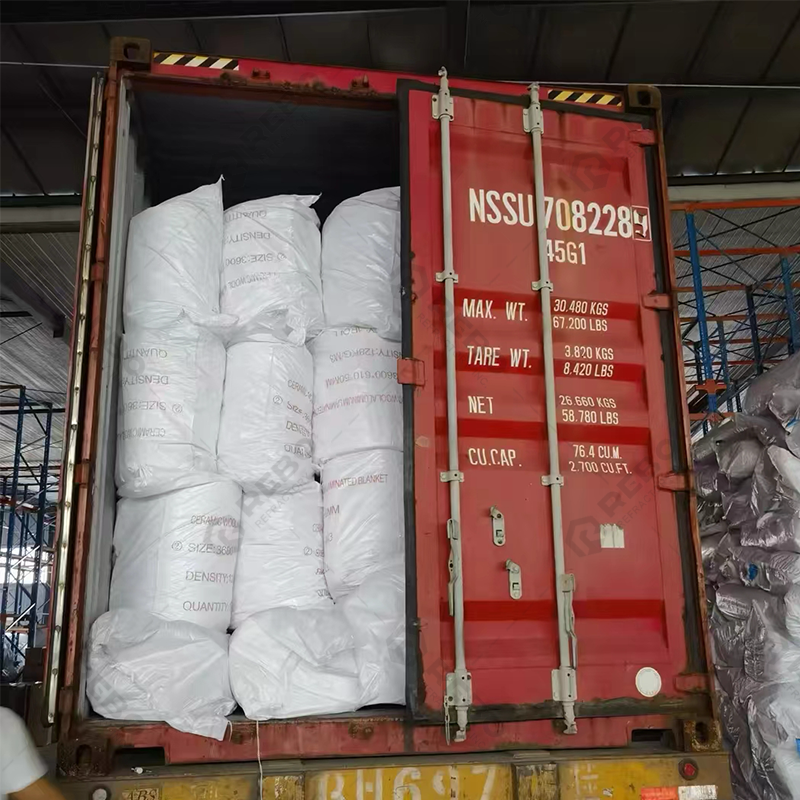

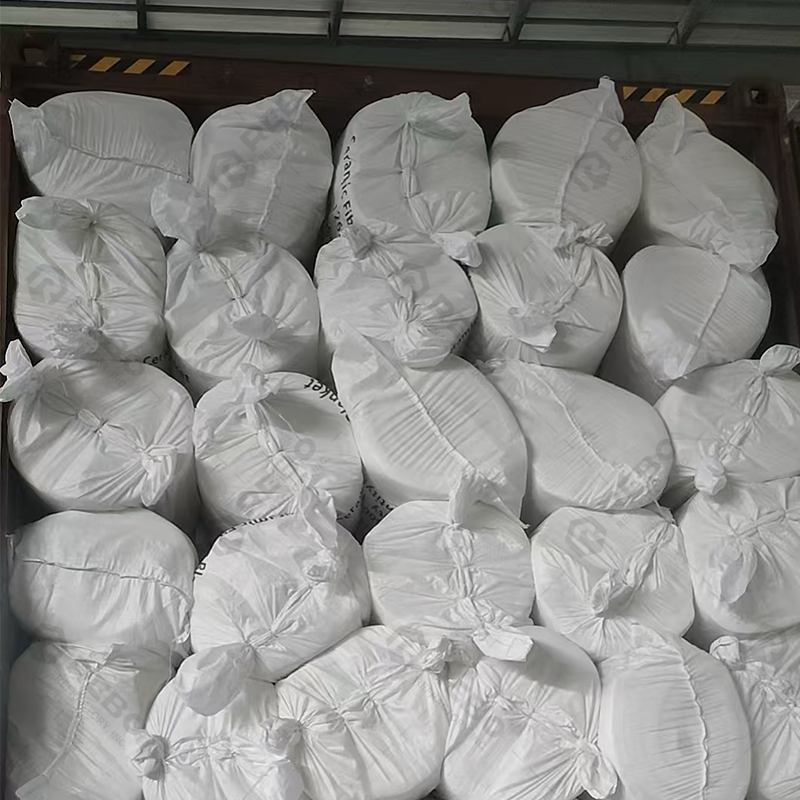

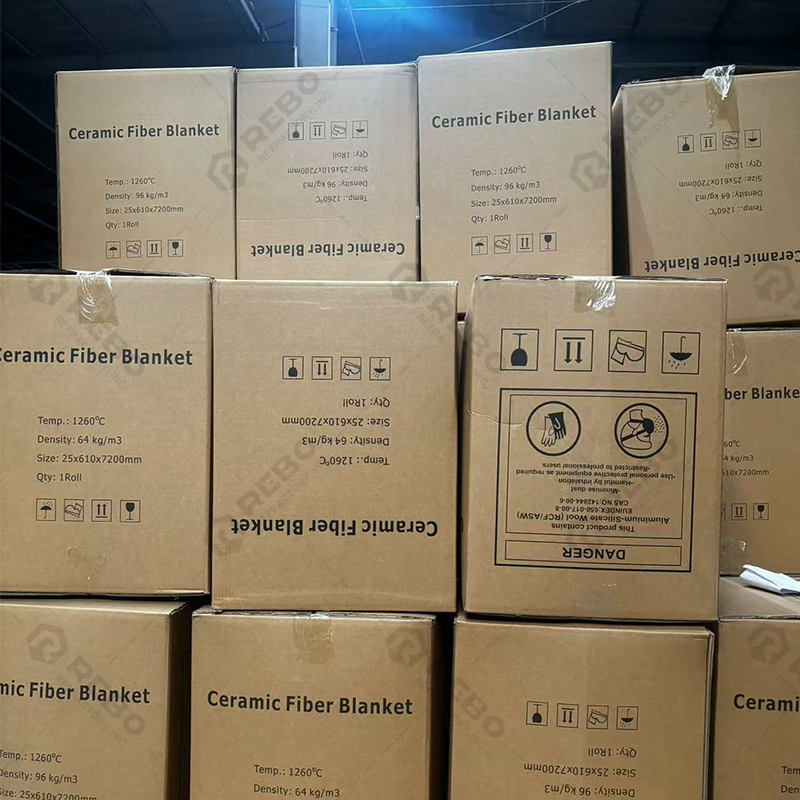

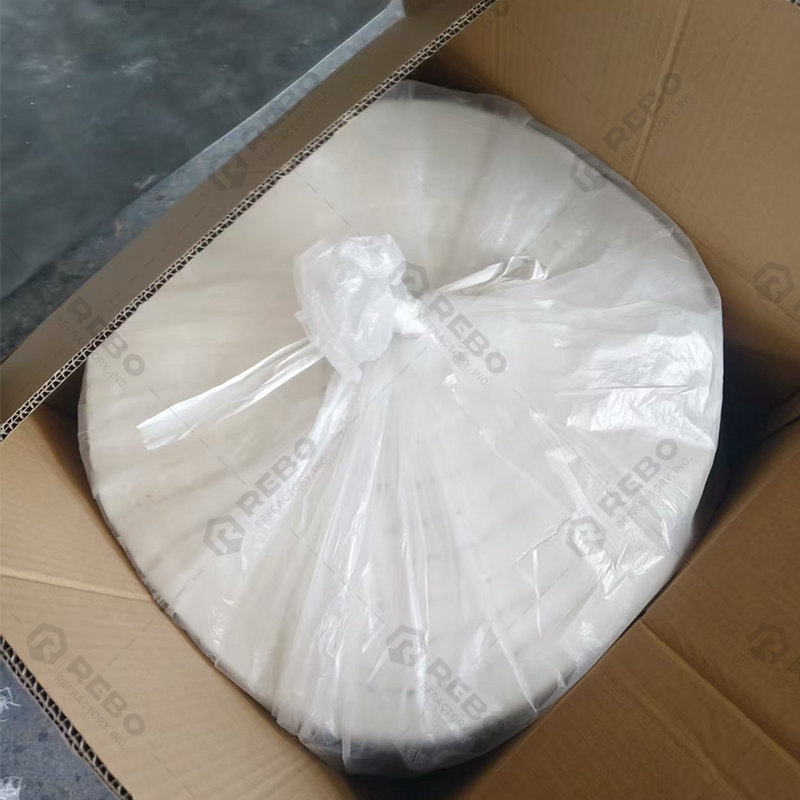

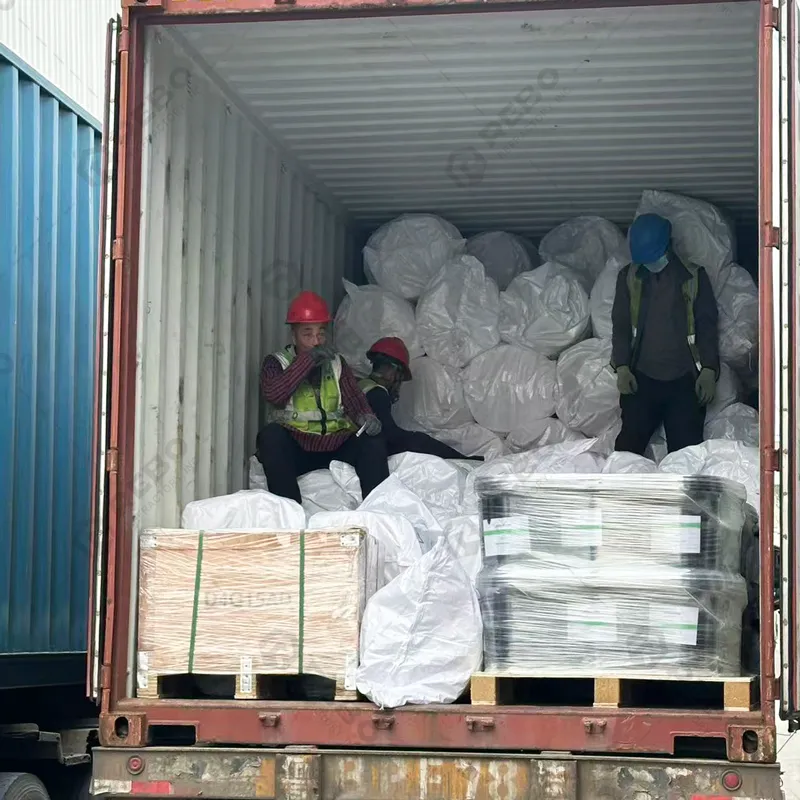

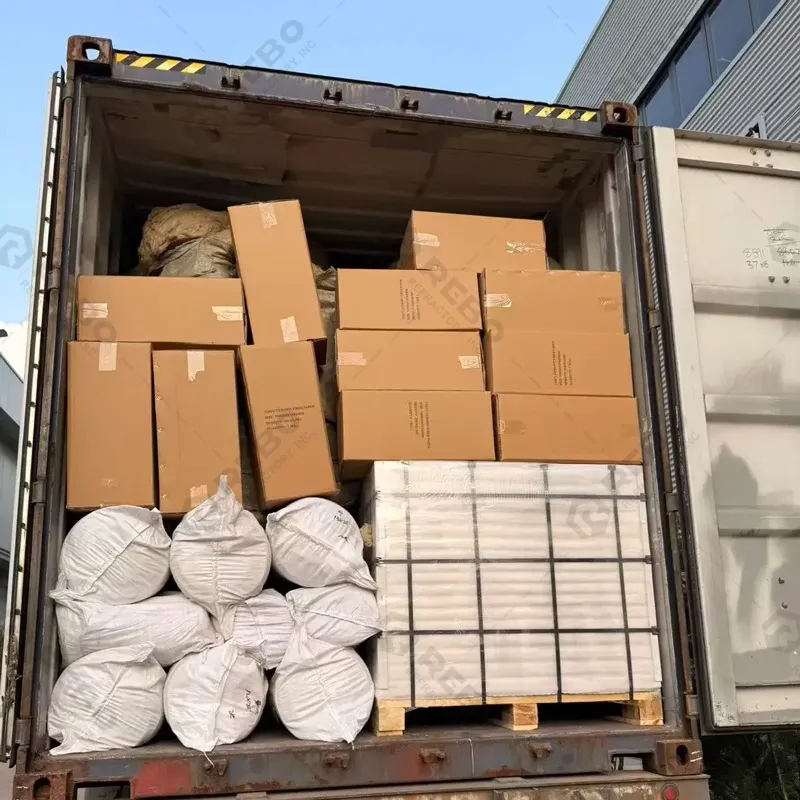

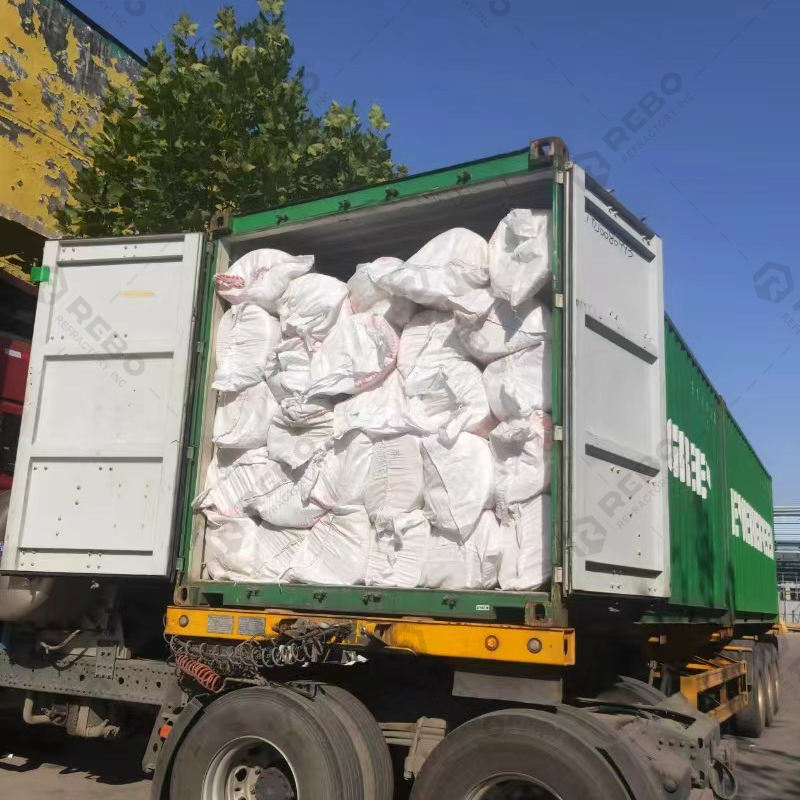

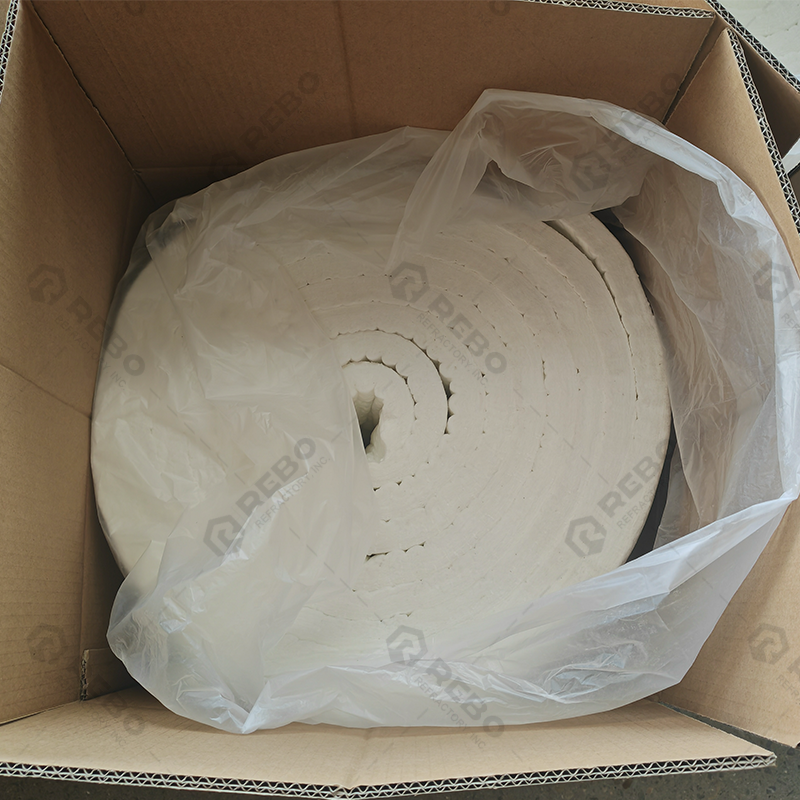

We employ professional, multi-layered packing techniques including heavy-duty export palletizing and moisture-proof stretch-wrapping to ensure your cargo remains completely dry and damage-free during long-distance transit. Furthermore, our strategic proximity to major shipping ports drastically reduces domestic transit times and lowers overall logistics costs.
Full-Cycle Service of REBO Aluminium Silicate Blankets
FAQs of Aluminum Silicate Fiber Blanket
Q: What Is the Difference Between Aluminum Silicate Fiber Blanket and Ceramic Fiber Blanket?
Q: Are You a Direct Manufacturer or a Trading Company about Aluminum Silicate Fiber Blanket?
Q: Which Well-known Enterprises or Institutions Have You Partnered With?
Q: What Is Your Minimum Order Quantity (MOQ) about Aluminum Silicate Fiber Blanket?
Q: Is It Possible to Visit Your Aluminum Silicate Fiber Blanket Factory?
Q: What Safety Precautions Should Be Followed During Installation and Use of Aluminum Silicate Fiber Blanket?
Personal Protection: Wear gloves, safety goggles, long sleeves, and a dust mask during handling to avoid temporary skin irritation or fiber inhalation.
Initial Heating: Minor smoke and odor may appear during the first firing as organic binders burn off. This is normal; simply ensure proper ventilation.
Moisture Prevention: Keep blankets completely dry before installation, as water exposure prior to firing can weaken their structural strength.
