Common Size of Refractory Anchor

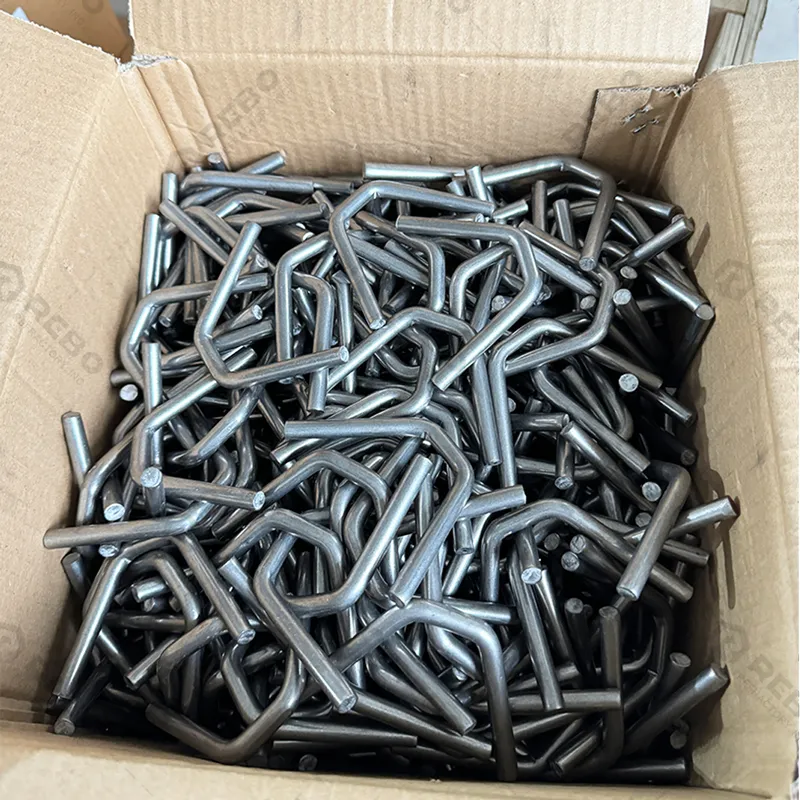

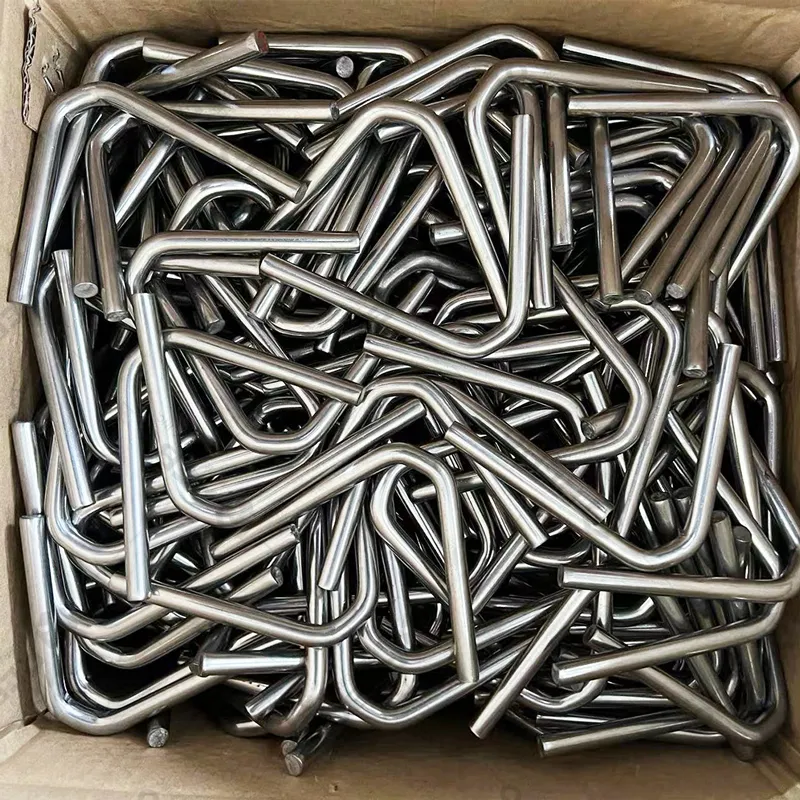

REBO is a trusted global leader in manufacturing high-quality V-anchors engineered for demanding industrial applications. Designed to withstand extreme temperatures, mechanical stress, and harsh operating environments, REBO V-anchors provide exceptional lining retention and structural integrity for furnaces, kilns, and boilers.

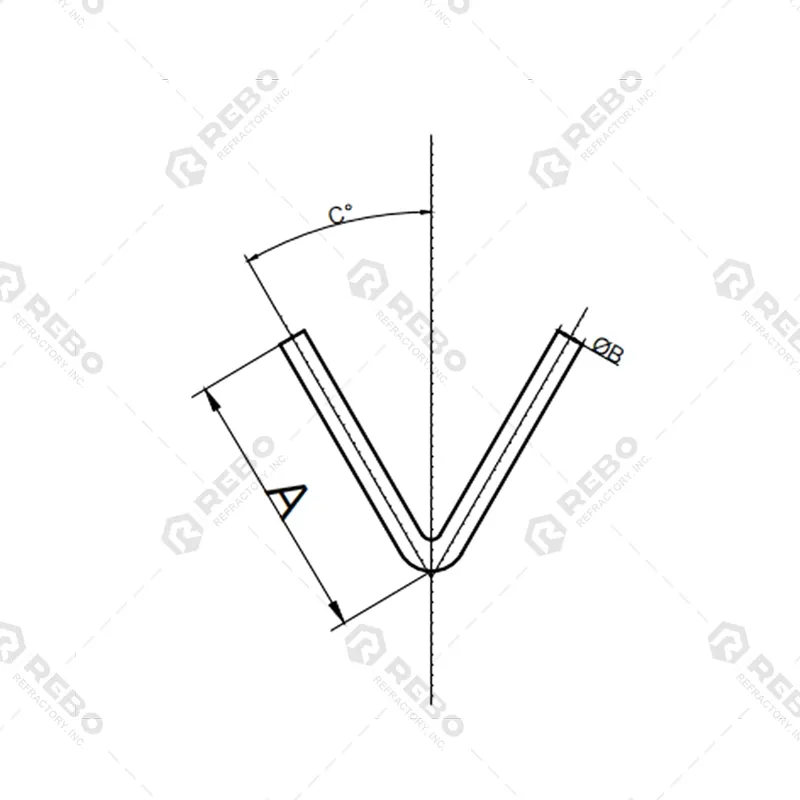

| Code | A (mm) | B (mm) | C (mm) | Unit Weight (kg) |
|---|---|---|---|---|
| V-1 | 30 | 8 | 30 | 0.024 |
| V-2 | 40 | 8 | 30 | 0.031 |
| V-3 | 50 | 8 | 30 | 0.039 |
| V-4 | 60 | 8 | 30 | 0.047 |
| V-5 | 70 | 8 | 30 | 0.055 |
| V-6 | 80 | 8 | 30 | 0.063 |
| V-7 | 90 | 8 | 30 | 0.071 |
| V-8 | 100 | 8 | 30 | 0.078 |
| V-9 | 110 | 8 | 30 | 0.086 |
| V-10 | 120 | 8 | 30 | 0.094 |
REBO Refractory Anchor Types
- By Material: Low Carbon Steel (450℃, also called ST), Q235 & SUS201 (≤550℃), SUS304 (550-1000℃), SUS310S (1000- 1250℃).

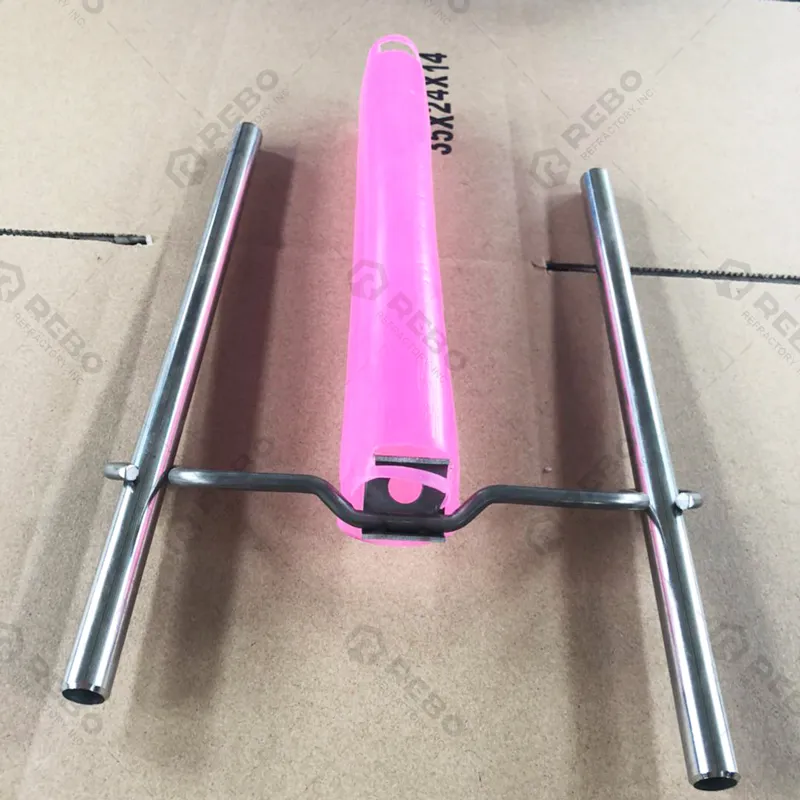

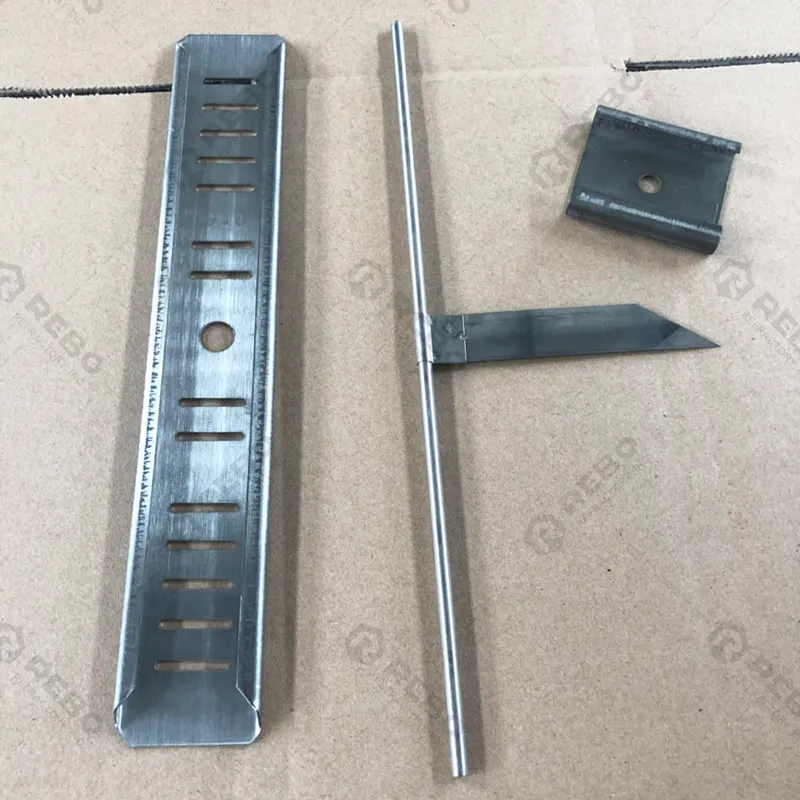

- By Shape:Y anchor refractory, V anchor refractory, Wave anchors, U anchor, S anchor, T anchor, H anchor, L anchor, base plate anchor, and other shapes.
- By Application:Ceramic fiber anchors, castable anchors, and refractory bricks anchors.
- By Installation:Pre-installed anchor, Post-installed anchor.
- Customized Service: 100% Customization supported! Send us your drawing, CAD file, 3D model, or physical sample. REBO does 1:1 copying and mass production. Ask now for direct factory prices!
Global Trust in REBO High-Temperature Refractory Anchors
REBO stainless steel refractory anchors reach customers across 50+ countries, including Algeria, UAE, Russia, Jordan, Australia, Turkey, Kuwait, Venezuela, Thailand, Chile, Malaysia, Indonesia and so on. REBO serves top high-temperature industries worldwide with zero-defect quality and stellar reviews. Join our global network today! Contact us now for a quick quote and free sample!

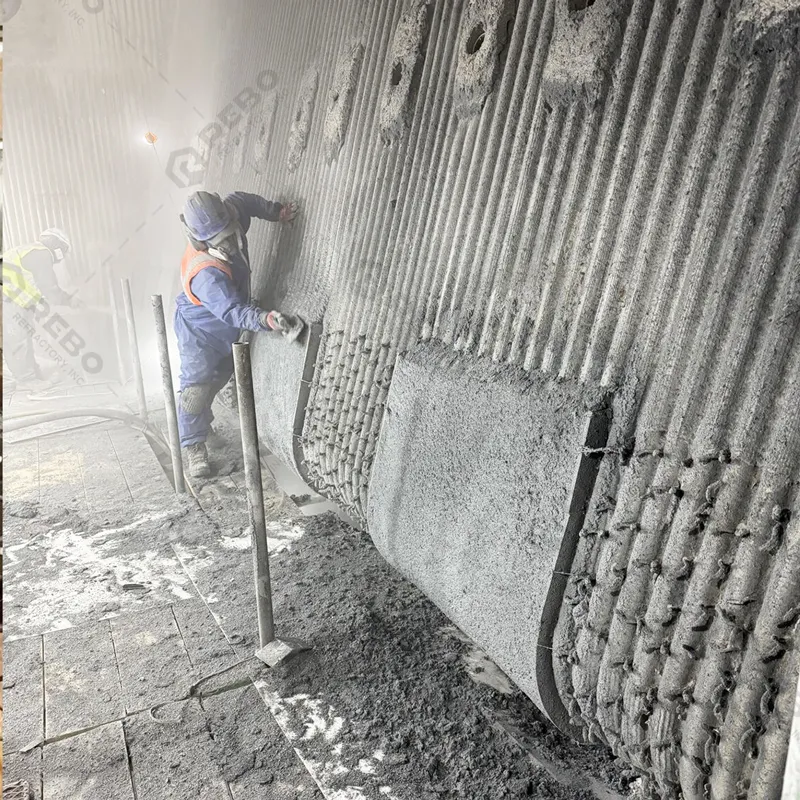

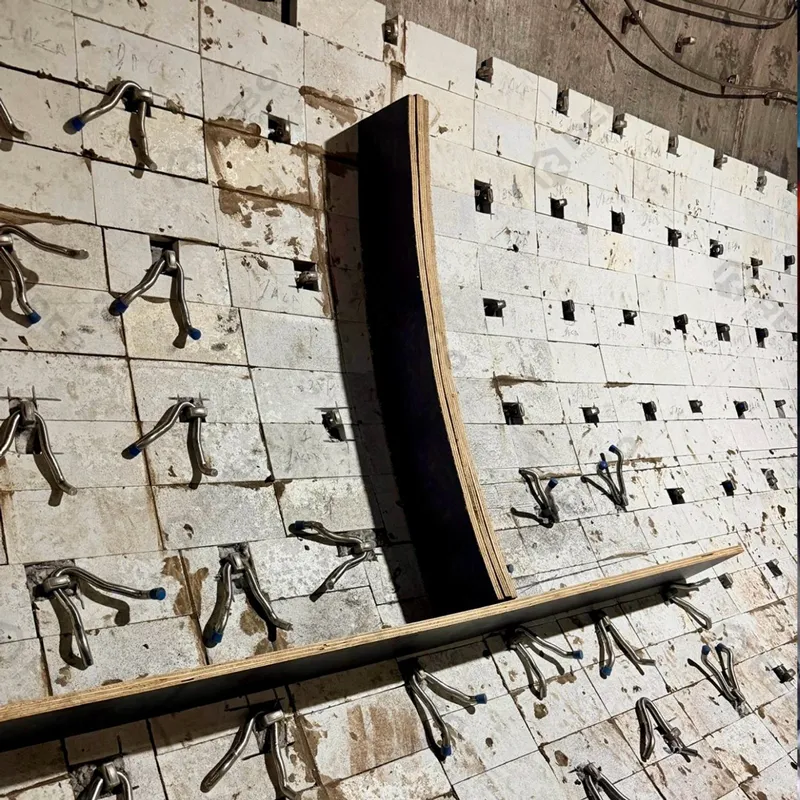

Anchor Applications for Refractory Linings
Where Our Anchors Are Used
Steel & Metallurgy: Blast furnaces, ladles, and reheating furnaces.
Cement & Lime: Preheaters, rotary kilns, and coolers.
Petrochemical & Energy: Cracker units, boilers, and reformers.
Incinerators & Glass: Combustion chambers and melting tanks.
Key Lining Applications
Monolithic castable linings.
Wear-resistant refractory linings.
Ceramic fiber module linings.
Core Functions

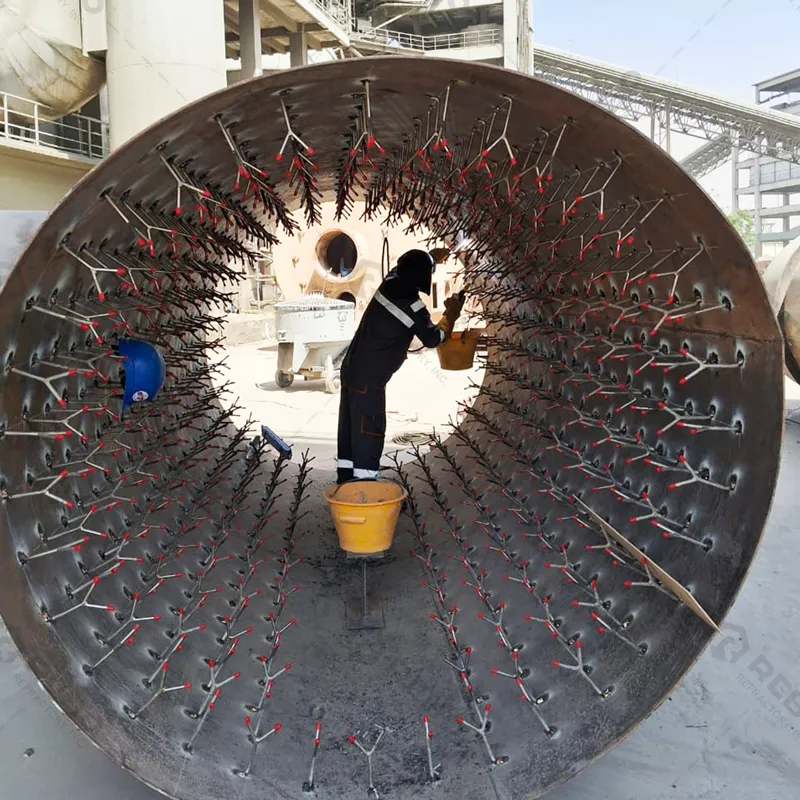

Lock refractory linings to steel walls (Prevent falling)
Support heavy refractory weight
Absorb thermal expansion & stress (Prevent wall buckling)
Ensure insulation & maintain structural integrity
Simplify maintenance & repair
REBO Has Strong Strength of Refractory Anchor Manufacturer
REBO Support & Value-Added Services
Quality Assurance & Testing
Mechanical Property Testing
REBO supplies full test reports for tensile strength, yield strength, weld pull-off load, and hardness levels of ceramic fiber module anchor.
Third-Party Inspection Support
We coordinate with SGS, TÜV, or Intertek for on-site factory sampling, testing, and container loading.
Technical & Engineering Support
Professional Anchor Selection
REBO recommends optimal alloy grades and anchor shapes based on furnace temperature, corrosion, and thickness.
Spacing & Layout Planning
We deliver customized anchor layout designs, spacing blueprints, and comprehensive welding installation guidance for furnaces.
Flexible Logistics & Production
Fast-Track Emergency Orders
REBO provides a 3-to-7 day rapid manufacturing channel for emergency plant shutdowns and urgent repairs.

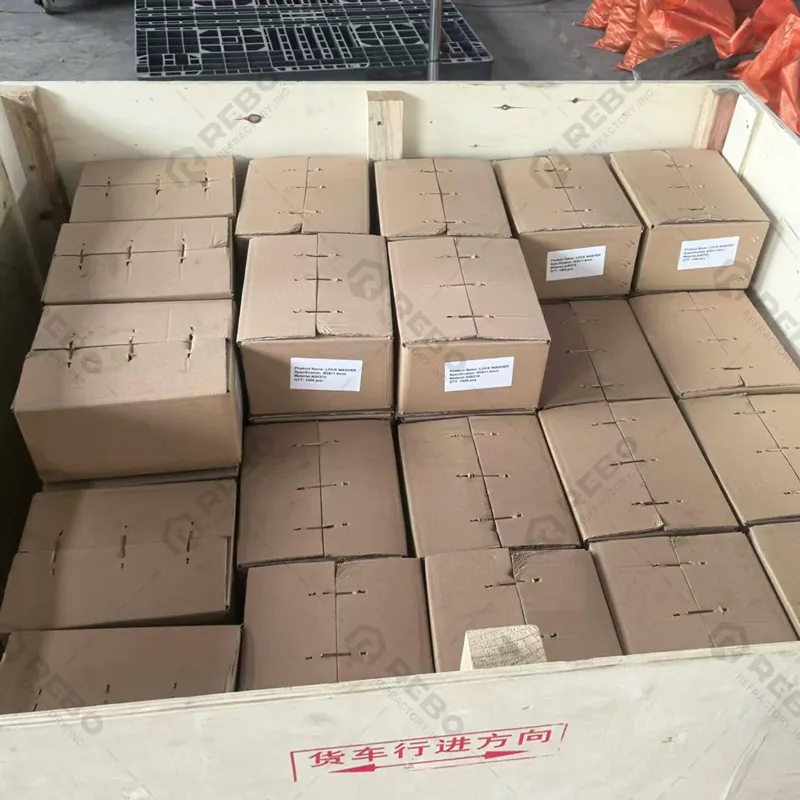

Custom Packaging & Labeling
We pack items by project zone or drawing numbers and affix your custom barcodes and labels.
After-Sales Assurance
Clear Quality Warranty
REBO guarantees product quality with free replacement or compensation commitments for any manufacturing or material defects.
Full Project Traceability
We maintain complete digital production archives for large projects to streamline your future reorders and reviews.

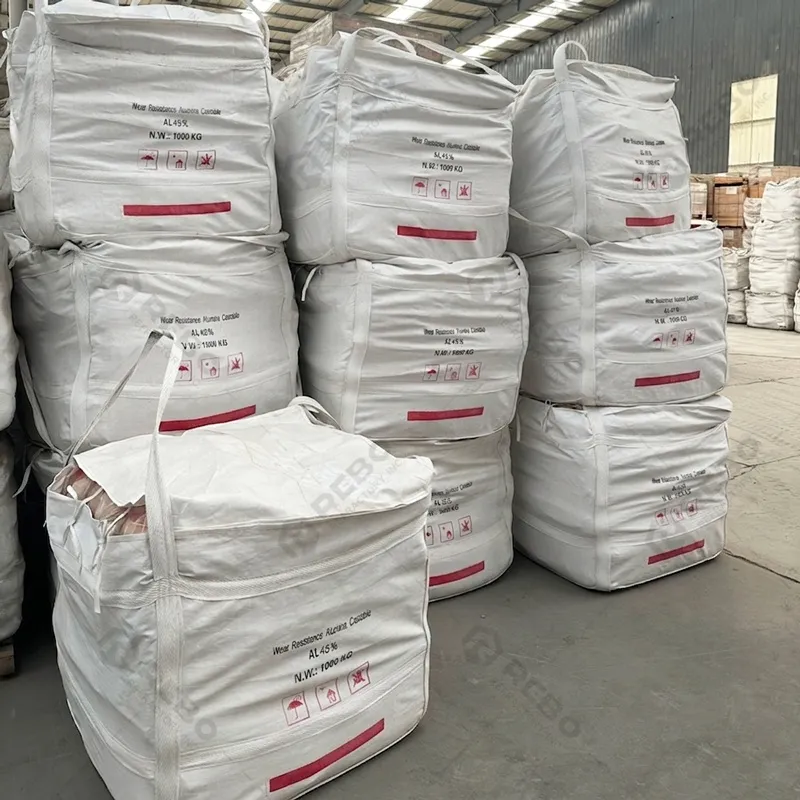

Matching Refractory Products of Refractory Anchors
FAQs of Refractory Anchors
Q: Can You Manufacture Custom Refractory Anchor Shapes Based on Our Engineering Drawings?
Q: How Do I Choose the Right Refractory Anchors Material for My Furnace Lining?
Q: Do You Provide Material Test Certificates (Mtc) with Our Orders of Refractory Anchor?
Q: What Is Your Standard Production Lead Time for Urgent Repair Projects of Refractory Anchor?
Q: How Do Refractory Anchor Prevent Wall Buckling and Lining Collapse?
Q: What Quality Tests Do You Conduct Before Shipment?
Q: What Are the Key Precautions for Refractory Anchor Installation?

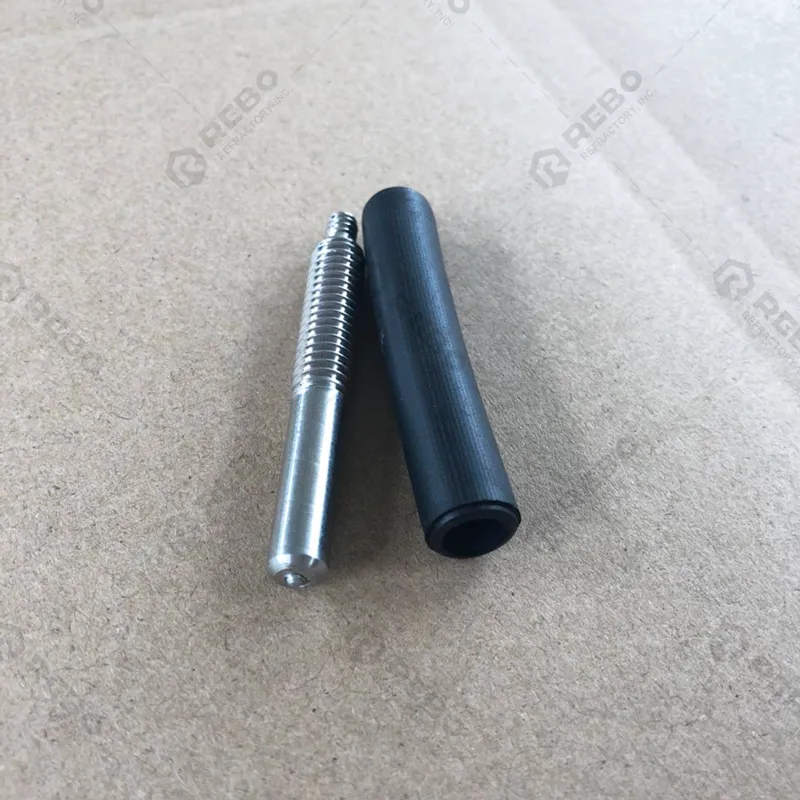

Plastic Expansion Caps: Use plastic caps or tape on anchor tips to allow thermal expansion space.
Welding Quality: Ensure full penetration welds or stud welds without rust or oil on the steel shell.
Layout Spacing: Maintain strict pitch distance to prevent stress concentration and lining cracks.
Expansion Joints: Leave expansion gaps between anchor groups according to lining thickness.
