Technical Parameters of Aerogel Insulation Blanket
The following parameters define the REBO aerogel insulation blanket under standard test conditions. All values conform to internationally recognized testing standards for industrial thermal insulation materials.
| Specifications and Models | IIIA Aerogel Felt | IIIA Aerogel Blanket Roll | IVA Aerogel Blanket Roll | |
|---|---|---|---|---|
| Thermal conductivity | Average temperature 25℃ | ≤0.021W/(m·K) | ||
| Average temperature 200℃ | ≤0.027W/(m·K) | |||
| Average temperature 300℃ | ≤0.035W/(m·K) | |||
| Average temperature 500℃ | ≤0.065W/(m·K) | |||
| Volume Density (kg/m3) | 180 | |||
| Hydrophobicity | 99.90% | |||
| Combustion Level | Level A1 | |||
| Compression Strength | ≥83kPa | |||
| Compression Rebound Rate | 99% | |||
| Vibration Mass Loss | ≤1% | |||
| Maximum Operating Temperature | 650℃ | 650℃ | 950℃ | |
| Heating Permanent Line Change | -1.20% | |||
| Corrosiveness (for covering austenitic stainless steel) | Stress Corrosion | The blank test specimens did not show any cracks,and the sample specimens did not show any cracks either. | ||
| PH Value of Leaching Solution | 7.4 | |||
| w（SiO32-）+w(Na+) | 0.05% | |||
| Appearance | Flexible coiled material, mainly white, color can be customized(the surface should be flat, without scratches, stains, or damage that would hinder use) | |||
| Thickness (mm) | 0.5/1.0/2.0 | 3/5/10/15/20 | ||
| GB/T 34336-2017 Nanoporous aerogel composite insulation products | ||||

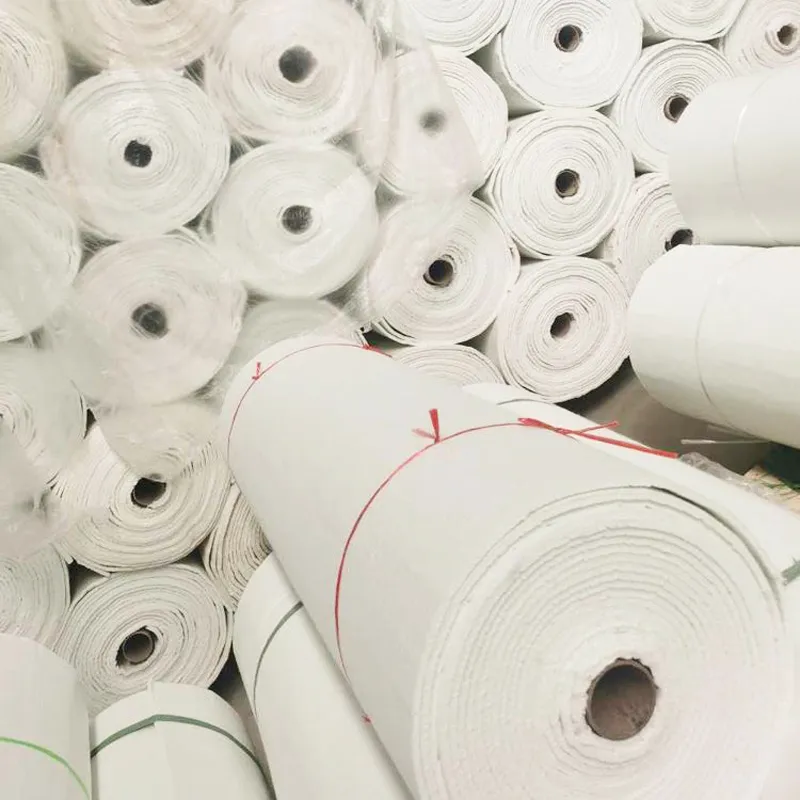

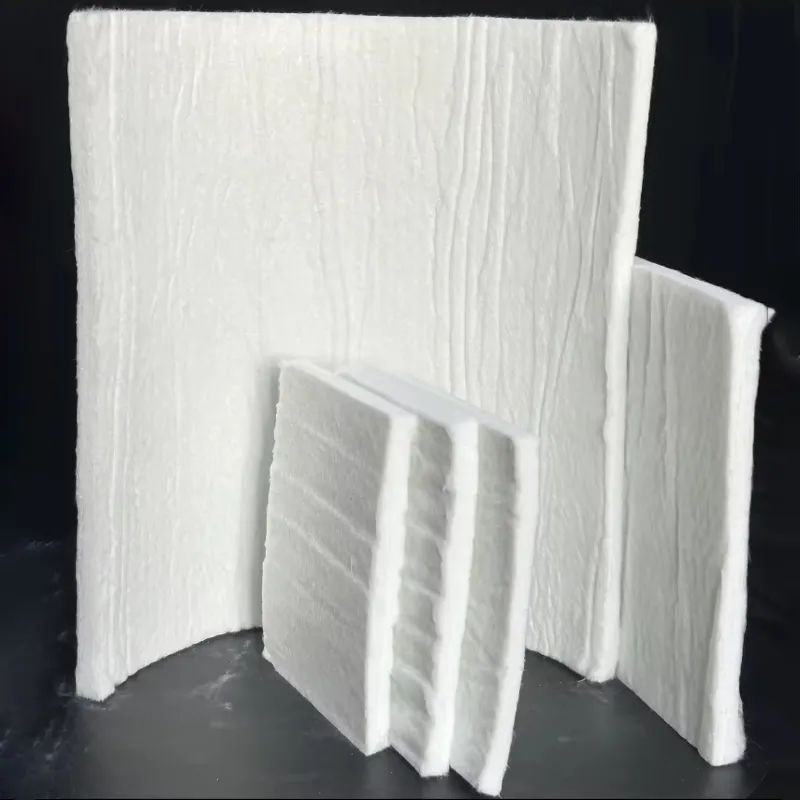

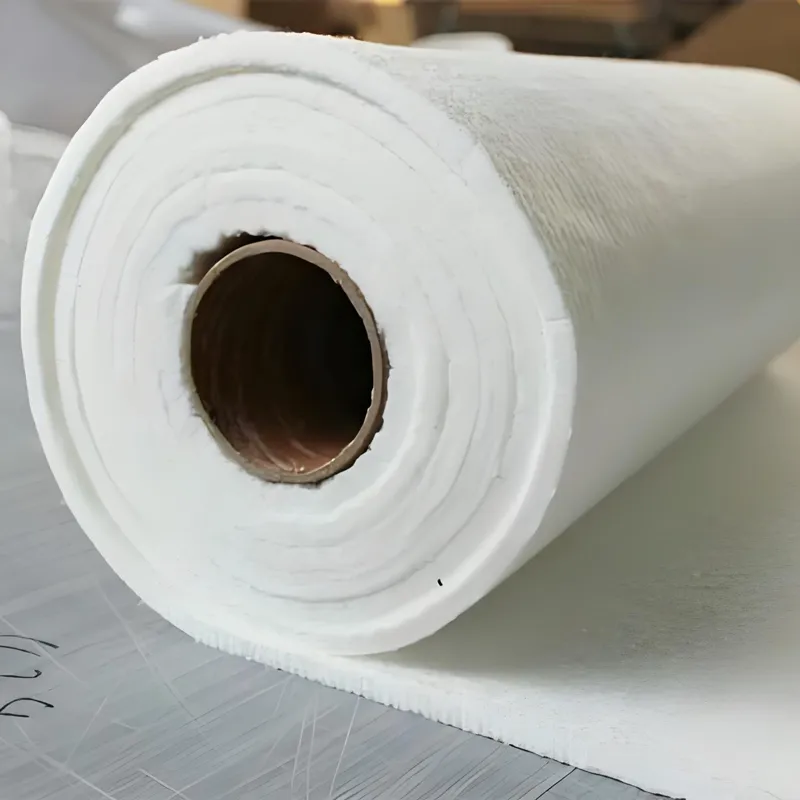

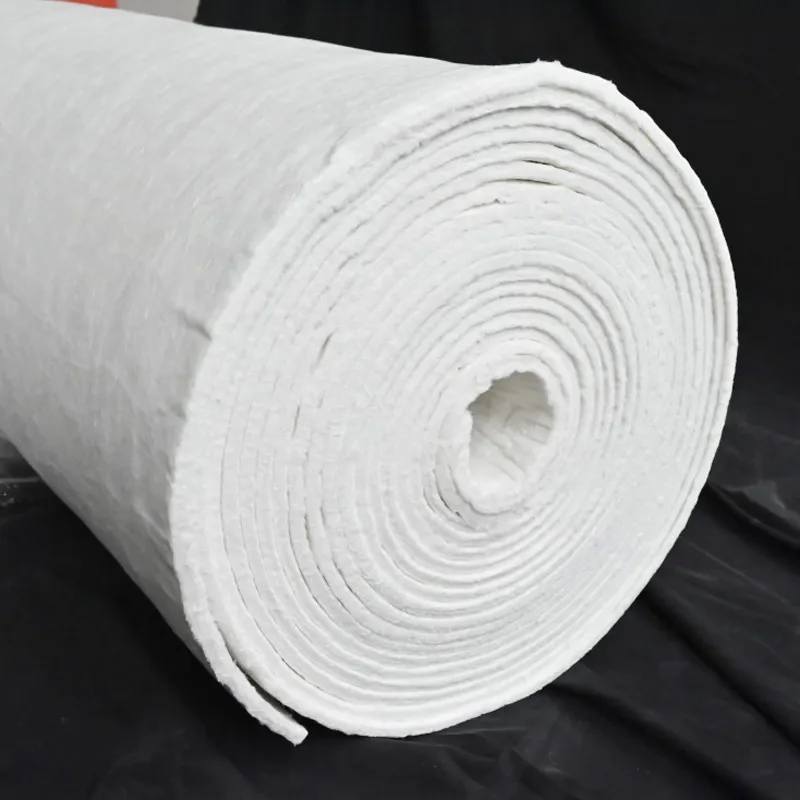

Aerogel Blanket Size Information
REBO aerogel blankets offer exceptional thermal insulation performance, engineered to meet the most demanding temperature-control requirements. The primary advantage of utilizing silica aerogel as the core insulation material lies in its unparalleled ability to maximize energy efficiency. By dramatically cutting down heat loss, it directly reduces the harmful emissions generated by excessive energy consumption while significantly lowering utility and energy bills. While we provide standard, highly versatile dimensions, we understand that every project has unique specifications. To accommodate diverse industrial and commercial applications, we support fully customized solutions with a flexible thickness range spanning from 3mm up to 20mm, allowing you to tailor the dimensions and thickness perfectly to your specific environmental and economic goals.
- Color: white.
- Raw Material: silica aerogel and glass fiber.
- Standard Sizes: 5mm×1220mm×7200mm; 10mm×1220mm×1600mm;
- Customization Options: Available in custom thicknesses from 3mm to 20mm, with tailored lengths and widths available upon request.
Global Reach and Proven Performance
With a proven track record of excellence, REBO aerogel insulation blankets have earned the trust of a vast and growing global clientele, including numerous industry giants and tier-one corporate partners. Our high-performance thermal insulation solutions have been successfully deployed across dozens of countries, spanning Europe, the Middle East, the Americas, Asia-Pacific, and Africa including major markets such as Canada, Italy, the Netherlands, Spain, Australia, Japan, South Korea, Saudi Arabia, the UAE, South Africa, Thailand, Malaysia, Brazil, and Mexico, etc..
From demanding industrial plants in the Middle East to cutting-edge engineering projects in Europe and North America, our aerogel blankets and ceramic fiber refractory products consistently deliver unmatched thermal efficiency in the harshest environments. This extensive global footprint is backed by overwhelming praise from our customers; large-scale buyers worldwide consistently report outstanding energy savings, exceptional product durability, and seamless installation, cementing REBO’s reputation as a premier world-class insulation partner.
Why Use Aerogel Insulation Blanket Performance in High-Temperature Industries
Superior Thermal Efficiency
Deliver 2-5x lower thermal conductivity than traditional alternatives.
vs. Traditional: Fails to match this thermal efficiency, leaking far more heat at the same thickness.
75% Thinner Footprint
Require only one-quarter of the thickness to achieve the exact same R-value.
vs. Traditional: Demands bulky layers that physically cannot fit into tight, congested pipe racks.
Ultimate CUI Protection
Feature a 98% hydrophobic rating that completely repels all liquid moisture.
vs. Traditional: Absorbs water easily, directly triggering severe Corrosion Under Insulation (CUI).
Ultra-Lightweight & Durable
Weigh just 180 kg/m³ and maintains stable structure up to 650°C.
vs. Traditional: Imposes heavy structural loads (300-900 kg/m³) and easily shrinks or degrades.
Maximum Safety & Fire Rating
Offer Class A non-combustible protection and cools 400°C pipes to a safe 50°C.
vs. Traditional: Lacks equivalent touch-safety performance and can release toxic smoke in fires.
100% Reusable (Zero Waste)
Allow clean, easy removal and flexible reinstallation with zero performance loss.
vs. Traditional: Crumbles during routine maintenance, resulting in high waste and disposal costs.
Aerogel Insulation Blanket VS Other Insulation Products
| Material | Key Advantages | Main Disadvantages |
|---|---|---|
| Aerogel Blanket | • Unmatched thermal efficiency | • Higher upfront material cost • Slight harmless dust shedding during cutting |
| • 75% thinner profile | ||
| • ≥98% hydrophobic (prevents CUI) | ||
| • 100% reusable | ||

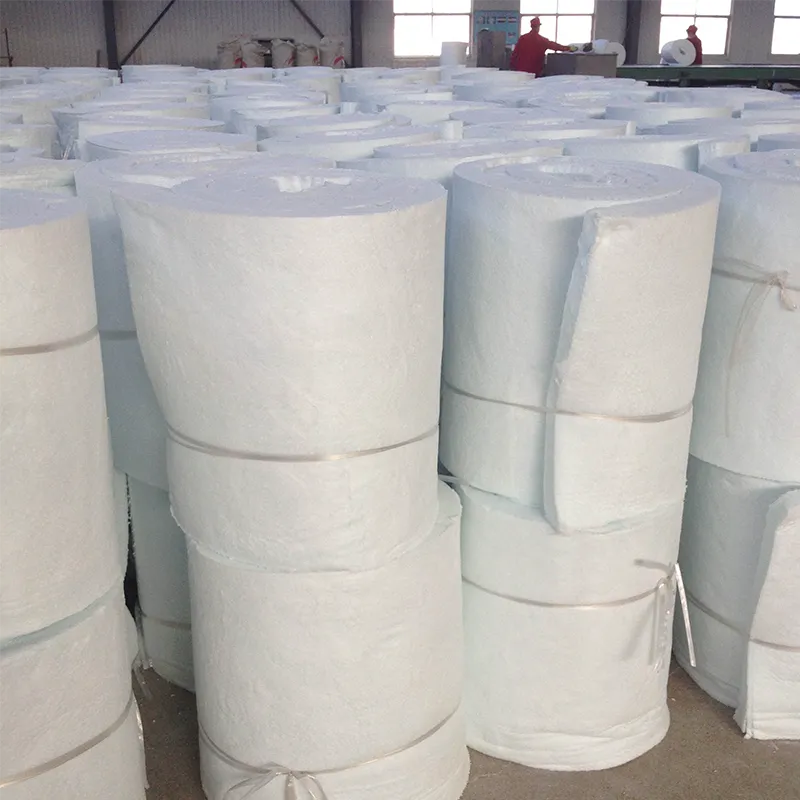

| Soluble Fiber Blanket | • Bio-soluble & eco-friendly (safe inhalation) | • Low mechanical strength (tears easily) • Higher price than rock wool |
| • High-temperature stability | ||
| • Great thermal shock resistance | ||

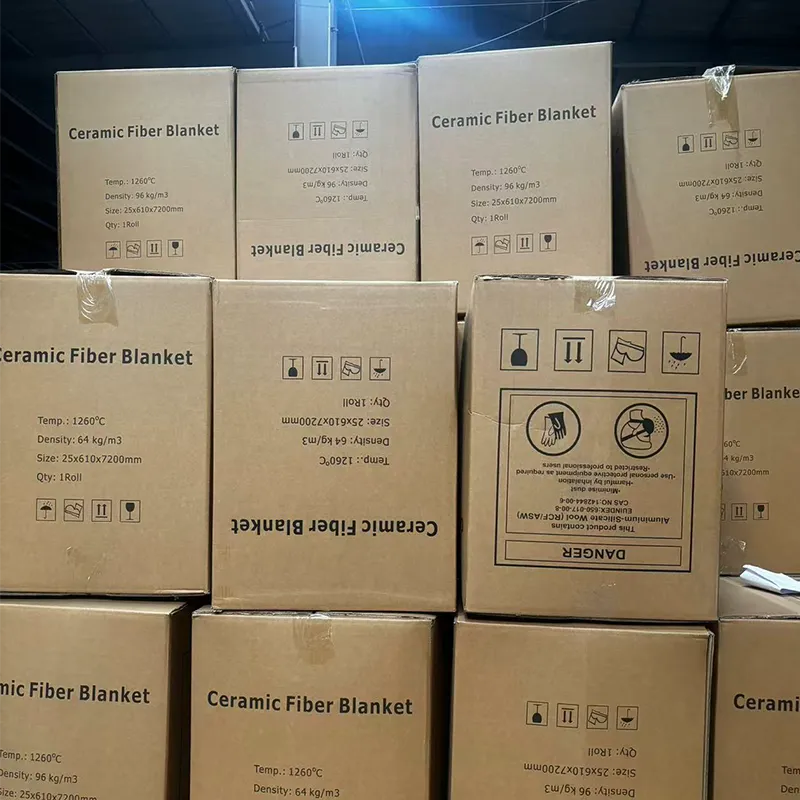

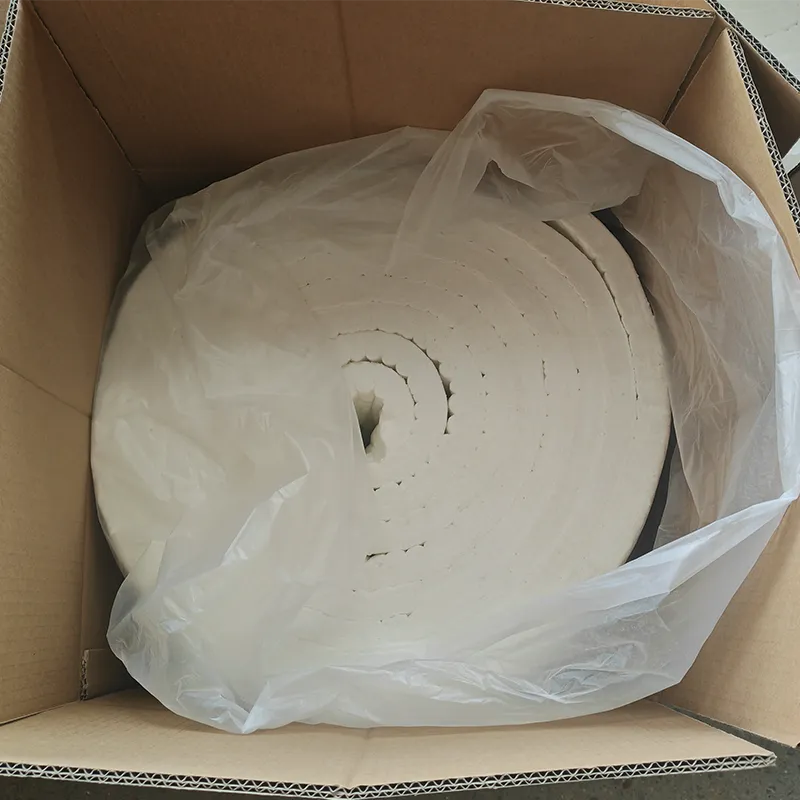

| Ceramic Fiber Blanket | • Withstands extreme heat (1000°C–1430°C) | • Low tensile strength (fragile) • Fibers irritate skin/lungs (needs PPE) |
| • Low heat capacity | ||
| • Excellent thermal shock resistance | ||
| Fiberglass Blanket | • Cost-effective & lightweight | • Lower temperature limit (500°C–600°C) • Insulation fails completely if wet |
| • Good tensile strength & flexibility | ||
| • Excellent electrical insulation | ||
| Rock Wool Blanket | • Very low upfront purchase cost | • Bulky & heavy • Absorbs water easily (causes CUI) • Itchy fibers; destroyed upon removal |
| • Outstanding acoustic dampening | ||
| • Reliable fireproofing |

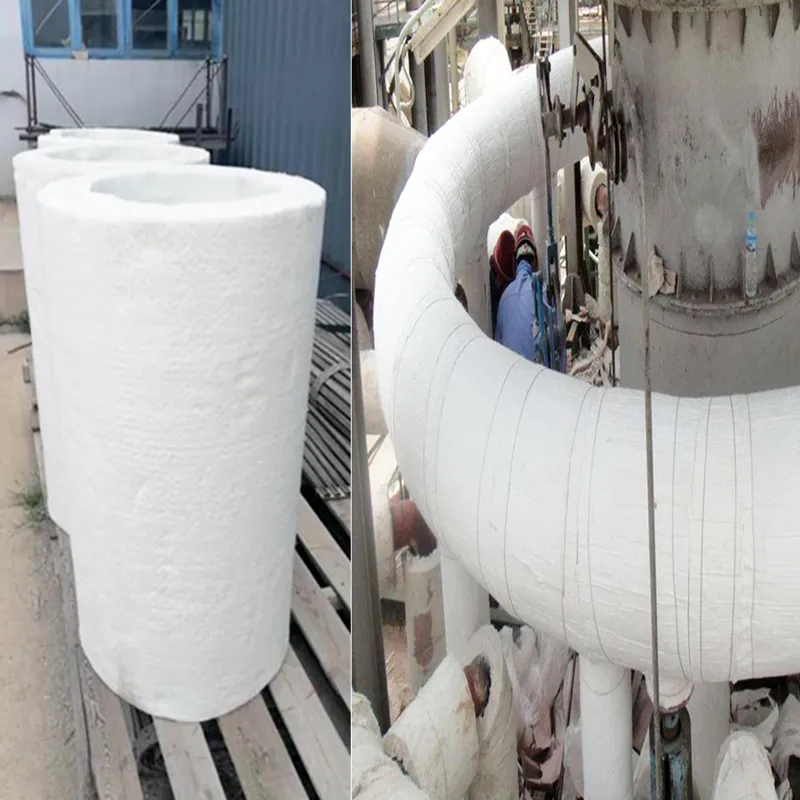

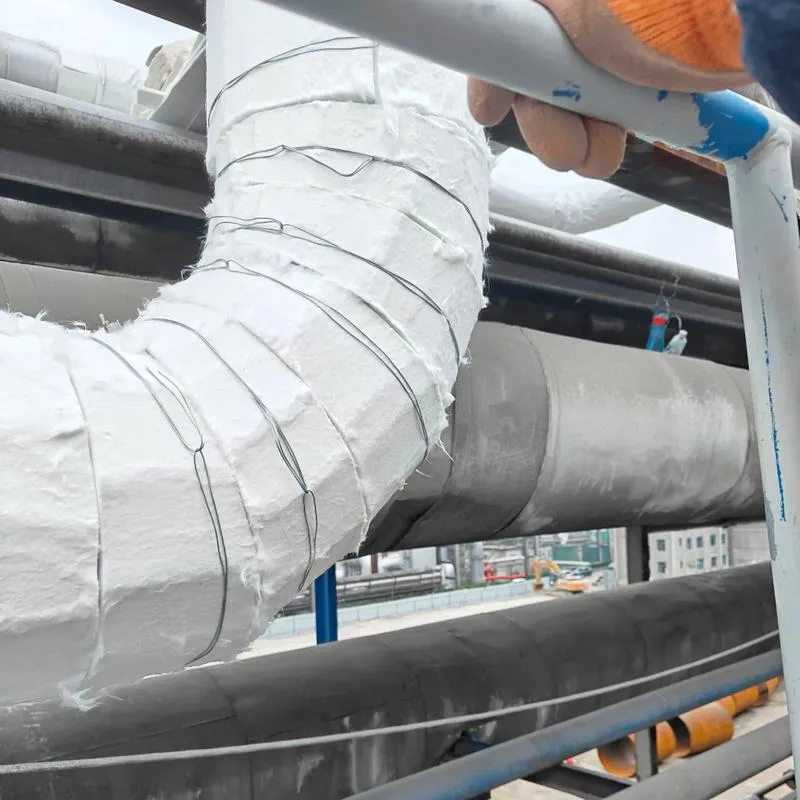

REBO Aerogel Insulation Blankets Safeguard Your High-Temperature Industry
Oil & Gas
Application Parts: High-temperature steam pipelines, distillation columns, catalytic crackers, delayed coker units, and subsea oil pipelines.
Why it fits: It fits into tight pipe racks and protects metal infrastructure from Corrosion Under Insulation (CUI) due to its water-repellent nature.
Power Generation
Application Parts: Steam turbines, high-pressure steam pipes, boiler walls, exhaust ducts, heat recovery steam generators (HRSGs), and district heating networks.
Why it fits: It easily withstands continuous operating temperatures up to 650°C while drastically reducing heat loss.
LNG & Cryogenic Storage
Application Parts: Cryogenic LNG transfer pipelines, storage tanks, shipping vessels, and valves.
Why it fits: Aerogel excels at dual-temperature insulation, protecting against both extreme high heat and extreme cryogenic freeze.
Aerospace & Defense
Application Parts: Aircraft engine nacelles, exhaust systems, black box flight recorders, thermal heat shields, and spacecraft hulls.
Why it fits: Its ultra-low weight and space-saving profile are critical for weight-sensitive aerospace assemblies.
Industrial Kilns, Furnaces, & Metallurgy
Application Parts: External furnace walls, glass melting kilns, metal casting launders, and high-temperature exhaust flues.
Why it fits: It serves as a lightweight backing insulation behind heavy refractory bricks to maximize energy savings.
Public Transit & Automotive Engineering
Application Parts: EV (Electric Vehicle) battery pack fire barriers, exhaust manifolds, train car insulation, and marine engine rooms.
Why it fits: It delivers Class A fire protection and thin-profile thermal shielding to protect passengers and fragile electronics.
Manufacturing Capabilities of Silica Aerogel Blanket
Advanced Manufacturing Infrastructure & Capacity
Large-Scale Production: Equipped with state-of-the-art, fully automated production lines designed for high-capacity manufacturing, ensuring a stable and reliable supply chain for large-scale global orders.
In-House Control: Every step of the process from sol-gel synthesis and aging to supercritical drying and composite integration is performed entirely in-house to guarantee consistent material purity.
Supercritical Drying & Core Technology
Cutting-Edge Processing: Utilizing industry-leading supercritical drying technology, which perfectly preserves the delicate nanoporous structure (98% porosity) of the aerogel matrix.
Premium Composite Quality: Our advanced automated needle-punching integration ensures that the aerogel is uniformly infused into the fiberglass or carbon fiber substrate. This prevents powder shedding and layering issues.
Stringent Quality Assurance & Standard Compliance
Rigorous Testing: Each production batch undergoes strict quality control inspections, including thermal conductivity testing, thickness uniformity checks, density verification, and hydrophobic rating audits.
Certified Excellence: Our manufacturing processes fully comply with international quality management standards. This ensurs that every shipped roll delivers stable thermal and structural integrity up to 650°C.
Strong OEM/ODM & Customization Capabilities
Tailored Dimensions: Backed by flexible production setups, we easily support customized requests for non-standard thicknesses (ranging from 3mm to 20mm), special roll widths, and custom roll lengths.
Collaborative Engineering: Our R&D and engineering teams work directly with clients to develop application-specific insulation solutions. This modifies substrates or hydrophobicity levels to match precise project environments.
Full-lifecycle Project Support Service
Pre-Sales: Consultation & Customized Design
Project Consulting: REBO provides tailored engineering support, running site-specific thermal calculations and comprehensive energy-saving ROI analysis.
Customization & Sampling: Our team assists with custom sizing, material selection, and rapid sample delivery for preliminary prototype testing.
In-Sales: Manufacturing & Logistics Order Care
Volume Supply: We leverage our robust production capacity to guarantee a stable, on-time volume supply with strict consistency across every batch.
Transparent Execution: Every order is backed by proactive project management. This maintain clear communication from initial fabrication to secure global dispatch.
After-Sales: Installation & Full Technical Backing
Deployment Guidance: We deliver hands-on installation guidance and technical support to ensure flawless fitting on site.
Final Acceptance: Our team remains available for post-installation audits and long-term performance support, securing your project’s final acceptance.
